[digsi-fenster-testmessschrieb-starten-260602-kn, 1, en_US]

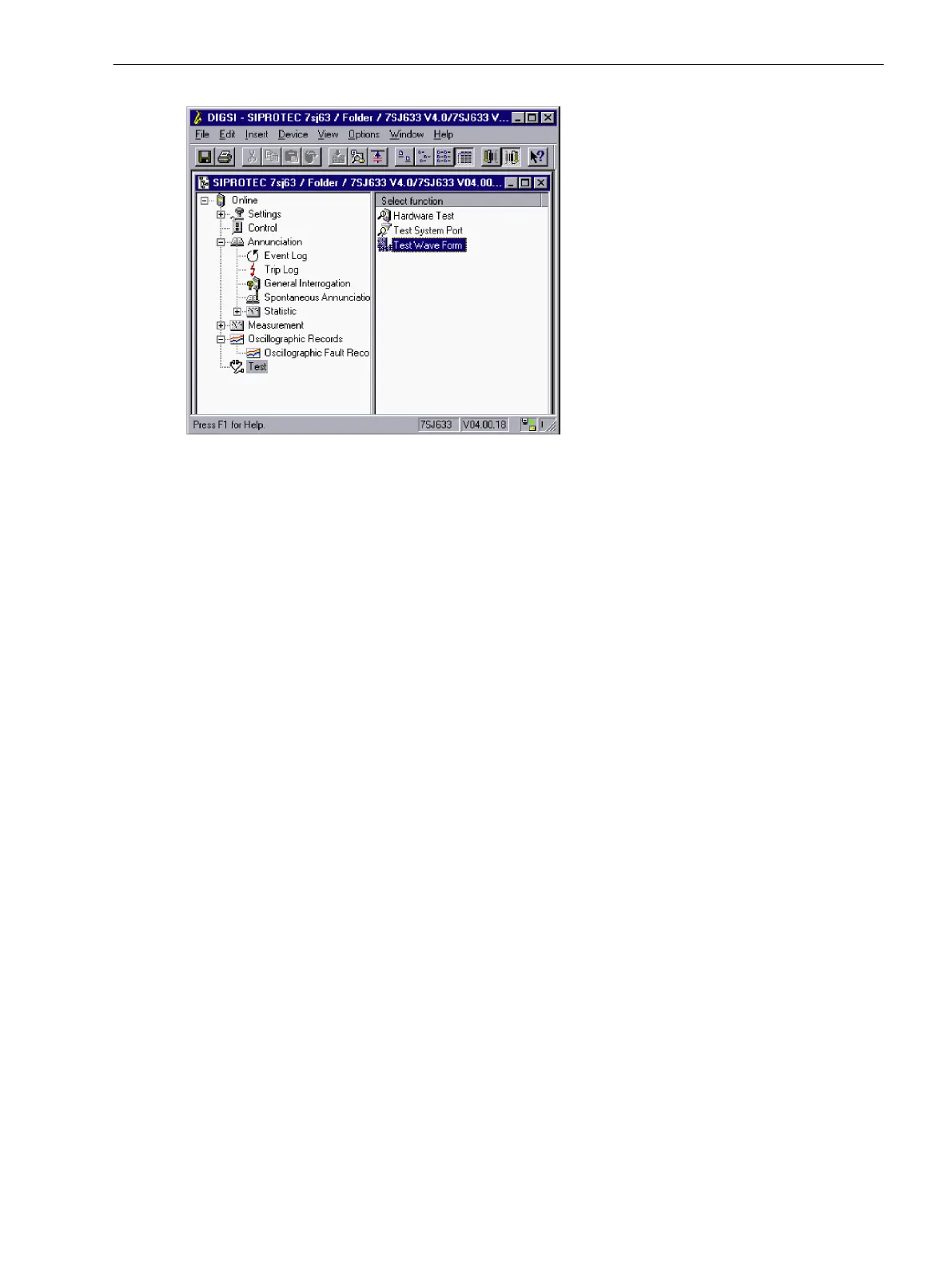

Figure 3-42 Start oscillographic recording with DIGSI
Oscillographic recording is started immediately. During recording, a report is given in the left part of the status
bar. Bar segments additionally indicate the progress of the procedure.
The SIGRA or the Comtrade Viewer program is required to view and analyse the oscillographic data.
Mounting and Commissioning
3.3 Commissioning
SIPROTEC 4, 7SJ62/64, Manual 435
C53000-G1140-C207-8, Edition 08.2016
