[ausloese-rueckfall-kennli-amz-iec-norm-stark-170502-wlk, 1, en_US]

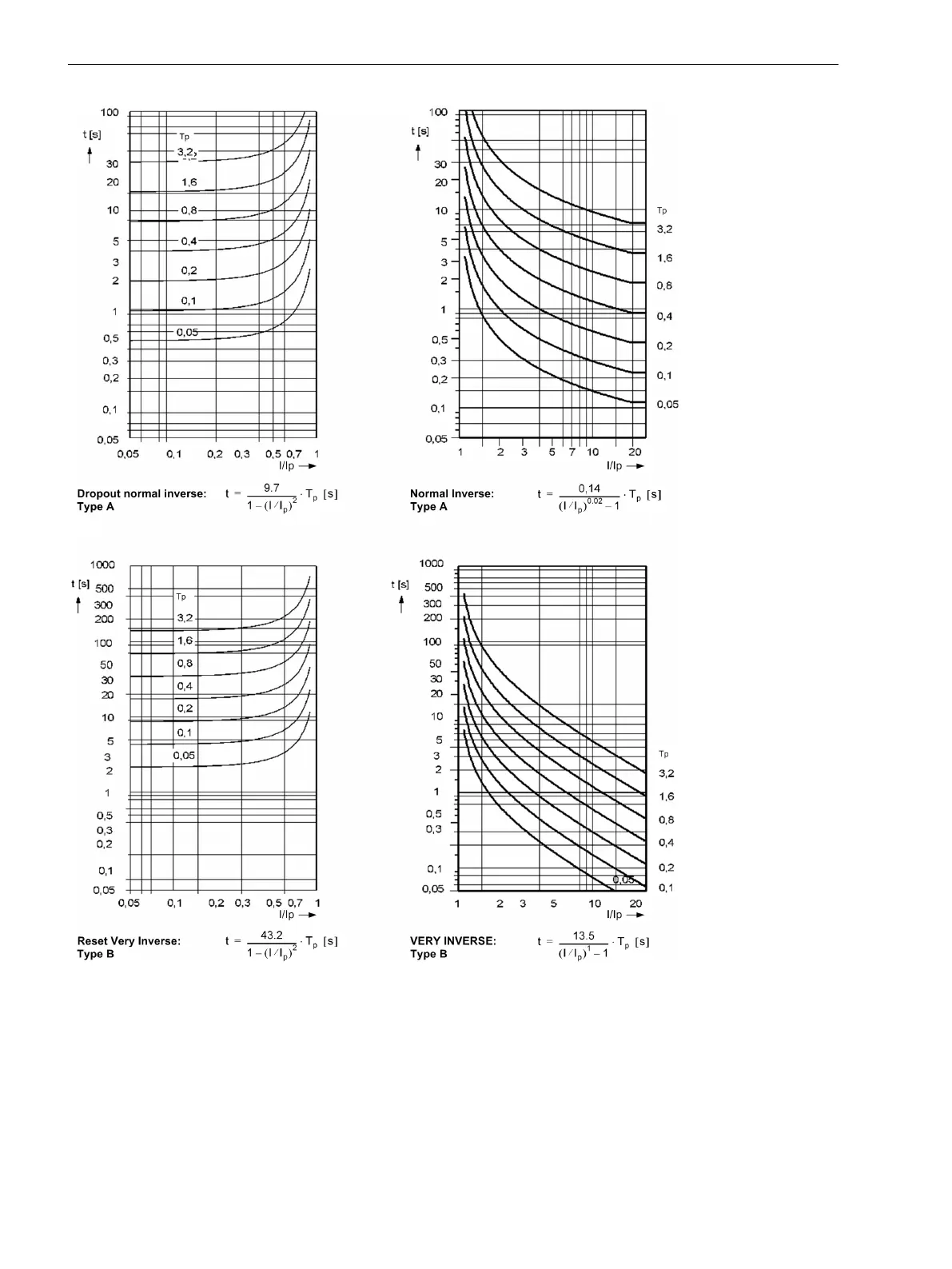

Figure 4-1
Dropout time and trip time curves of the inverse time overcurrent protection, acc. to IEC
Technical Data
4.3 Inverse-time Overcurrent Protection
454 SIPROTEC 4, 7SJ62/64, Manual
C53000-G1140-C207-8, Edition 08.2016
