[ausl-rueckfallkennl-amz-ansi-lang-maessig-170502-wlk, 1, en_US]

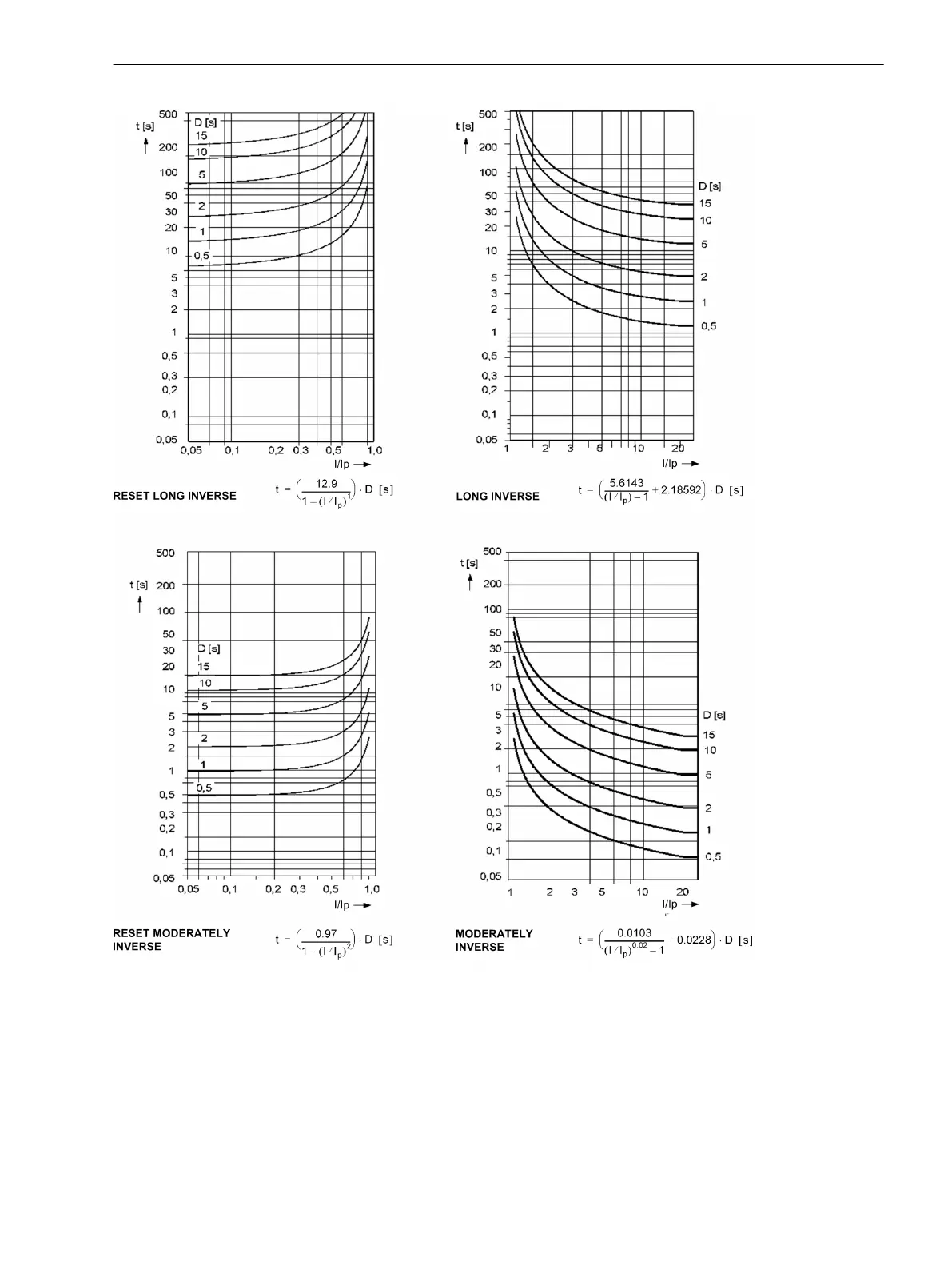

Figure 4-4
Dropout time and trip time curves of the inverse time overcurrent protection, acc. to ANSI/IEEE
Technical Data
4.3 Inverse-time Overcurrent Protection
SIPROTEC 4, 7SJ62/64, Manual 459
C53000-G1140-C207-8, Edition 08.2016
