7SJ645*-*B
[schalttafelaufbau-7sj645-b-teil2-070602-kn, 1, en_US]

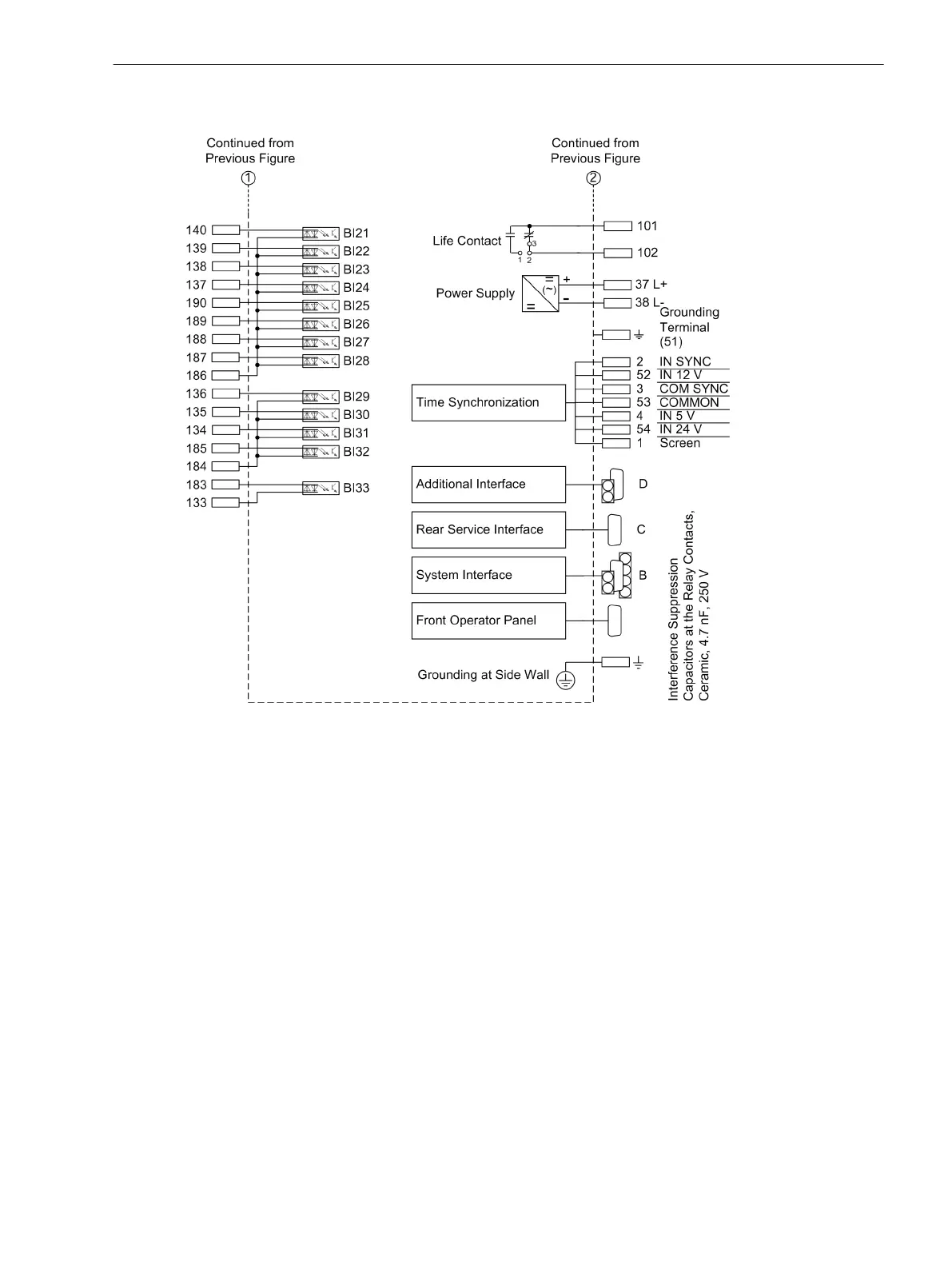

Figure B-22
General diagram 7SJ645*-*B (panel surface mounted; part 2)
Terminal Assignments
B.5 7SJ64 — Housing for Panel Surface Mounting
SIPROTEC 4, 7SJ62/64, Manual 563
C53000-G1140-C207-8, Edition 08.2016
