7SJ642*-*F/G
[aufbauohnebedien-7sj642-f-g-070602-kn, 1, en_US]

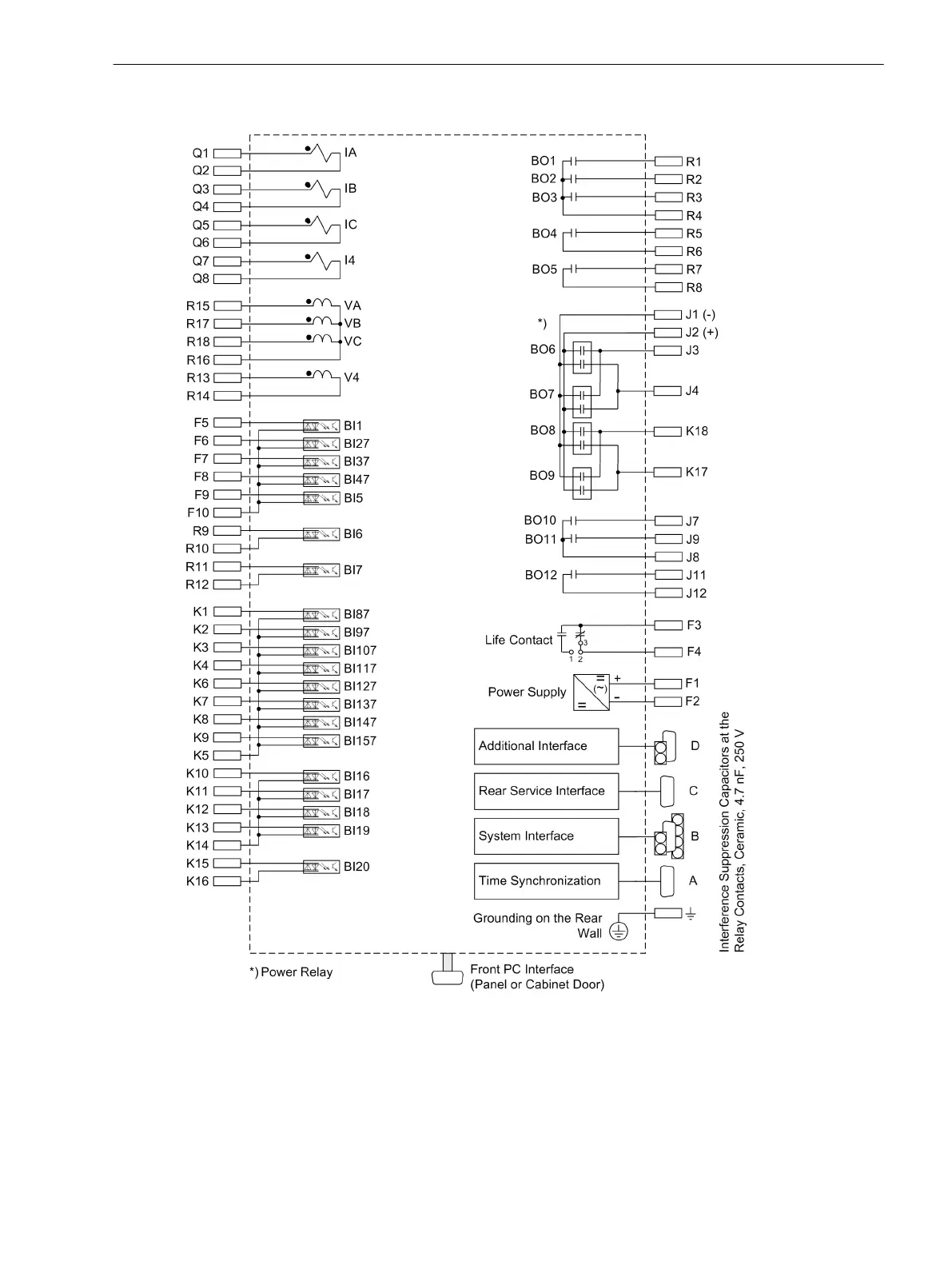

Figure B-32
General diagram 7SJ642*–*F/G (panel surface mounting without operator panel)
Terminal Assignments
B.7 7SJ64 — Housing for Panel Surface Mounting without Operator Panel
SIPROTEC 4, 7SJ62/64, Manual 573
C53000-G1140-C207-8, Edition 08.2016
