[anschluss-sj62-einphas-l1e-l2e-250902-kn, 1, en_US]

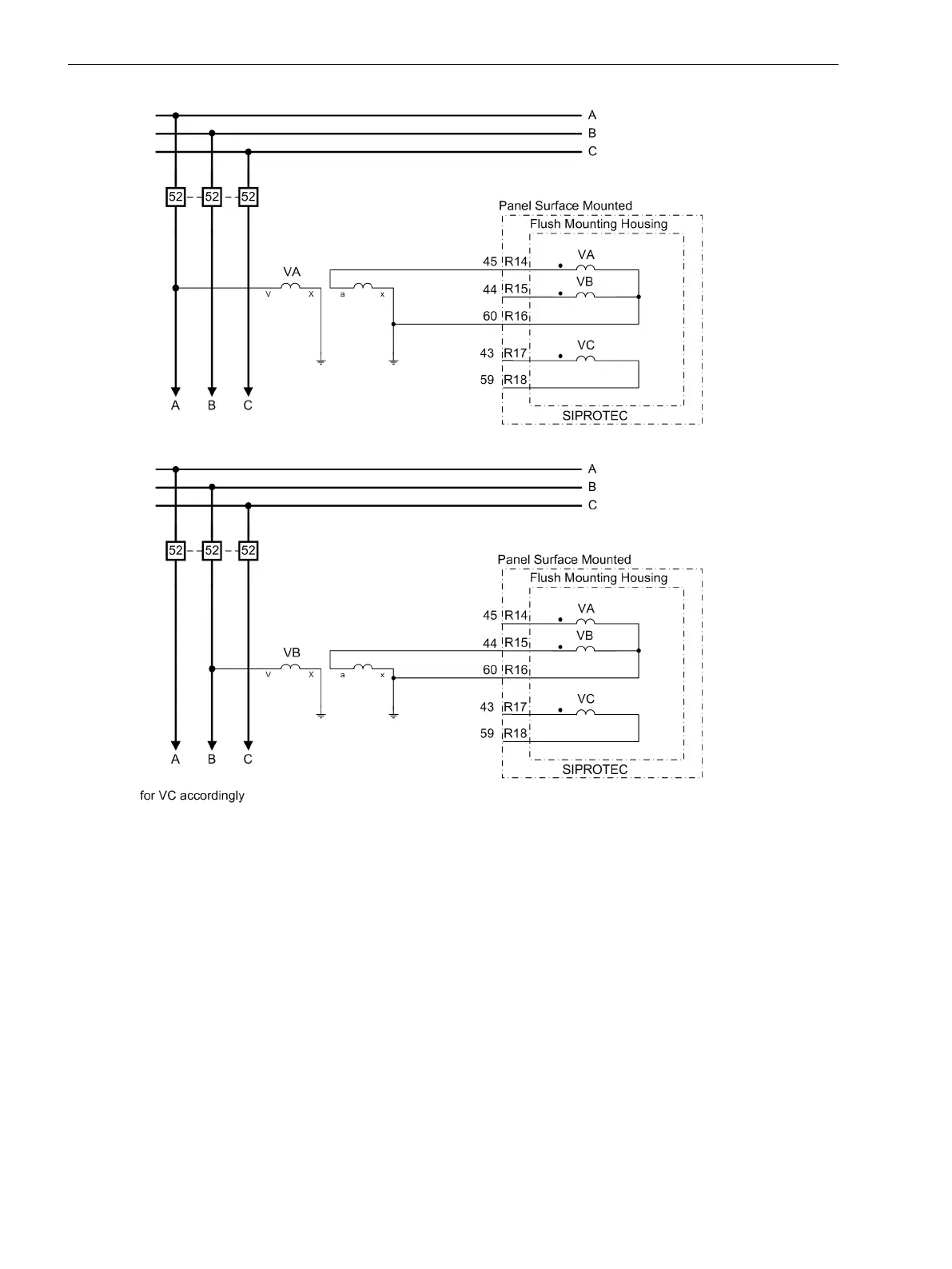

Figure C-11
Connection circuit for single-phase voltage transformers with phase-to-ground voltages
Connection Examples
C.2 Connection Examples for Voltage Transformers 7SJ621, 7SJ622
586 SIPROTEC 4, 7SJ62/64, Manual
C53000-G1140-C207-8, Edition 08.2016
