The terminal markings in brackets apply to the devices 7SJ623/4/5/6, the remaining to devices 7SJ64
[spannungswdl-e-n-wickl-von-ss-20070416, 1, en_US]

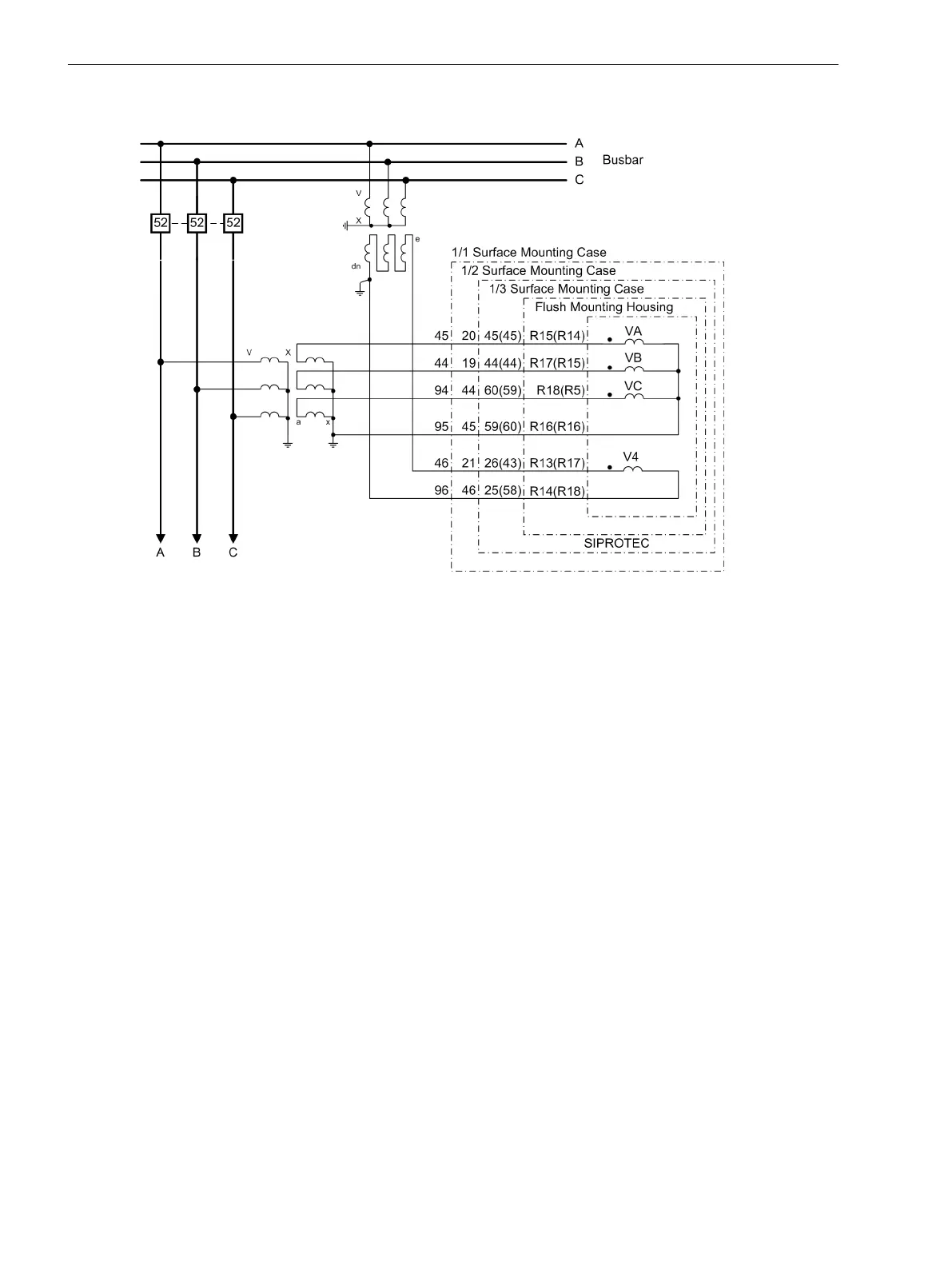

Figure C-14
Voltage connections to three wye-connected voltage transformers with additional open delta
windings (da-dn) of the busbar
The terminal markings in brackets apply to the devices 7SJ623/4/5/6, the remaining to devices 7SJ64
Connection Examples
C.3 Connection Examples Voltage Transformers 7SJ623, 7SJ624, 7SJ625, 7SJ626, 7SJ64
588 SIPROTEC 4, 7SJ62/64, Manual
C53000-G1140-C207-8, Edition 08.2016
