for the Graphic Display of 7SJ625/6 and 7SJ641/2/5/7

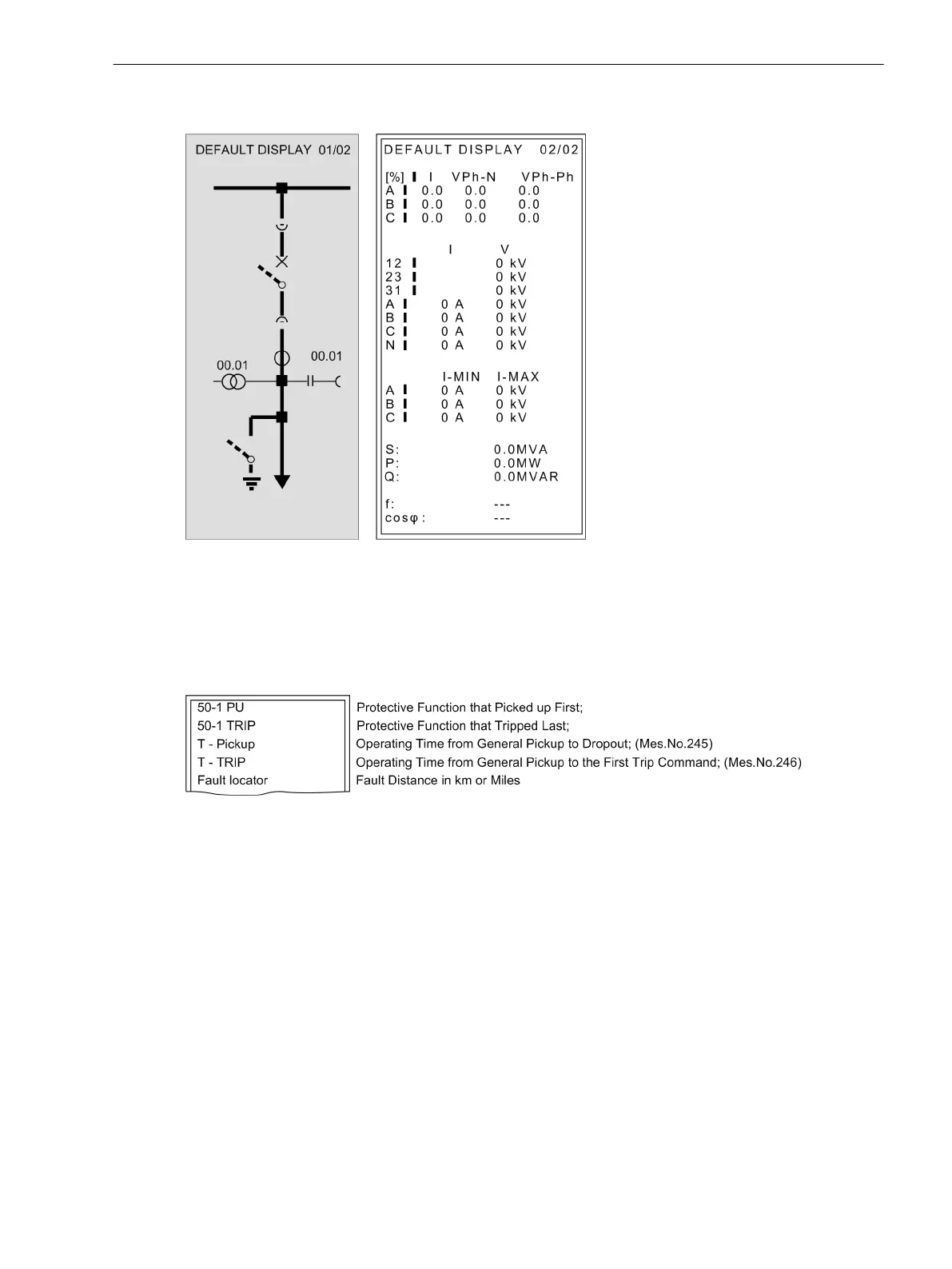

[grundbild-grafikdisplay-020313-kn, 1, en_US]
Figure E-4
Default displays for graphic display
Spontaneous Fault Indication of the 4–Line Display
The spontaneous annunciations on devices with 4–line display serve to display the most important data about
a fault. They appear automatically in the display after general interrogation of the device, in the sequence
shown in the following figure.
[anzeige-spontanmeld-im-display-20070326, 1, en_US]
Figure E-5 Display of spontaneous messages in the HMI
Spontaneous Fault Indication of the Graphic Display
All devices featuring a graphic display allow to select whether or not to view automatically the most important
fault data on the display after a general interrogation. The information corresponds to those of the 4–Line
Display.
Default Settings and Protocol-dependent Functions
E.5 Default Display
SIPROTEC 4, 7SJ62/64, Manual 607
C53000-G1140-C207-8, Edition 08.2016
