Modules And Accessories
3.111
SETTING DIP SWITCHES
1
EIA - 232=off / 485=on = Switch 1 ON
EIA-485=off / 232=on = Switch 1 OFF
2
Repeater ON= Switch 2 ON
Repeater OFF = Switch 2 OFF
3
Higher baud rate Range = Switch 3 ON
Lower baud rate Range= Switch 3 OFF
Switch settings for baud rate selection:
Only one switch should be On to select the baud rate. Check switch # 3 for
baud rate Range.
Switch
Lower baud rate Range
Higher baud rate Range
4
4.8k
57.6k
5
9.6k
115.2k
6
19.2k
230.4k
7
38.4k
460.8k
8
76.8k
921.6k
12345678
ON
Circuit Board

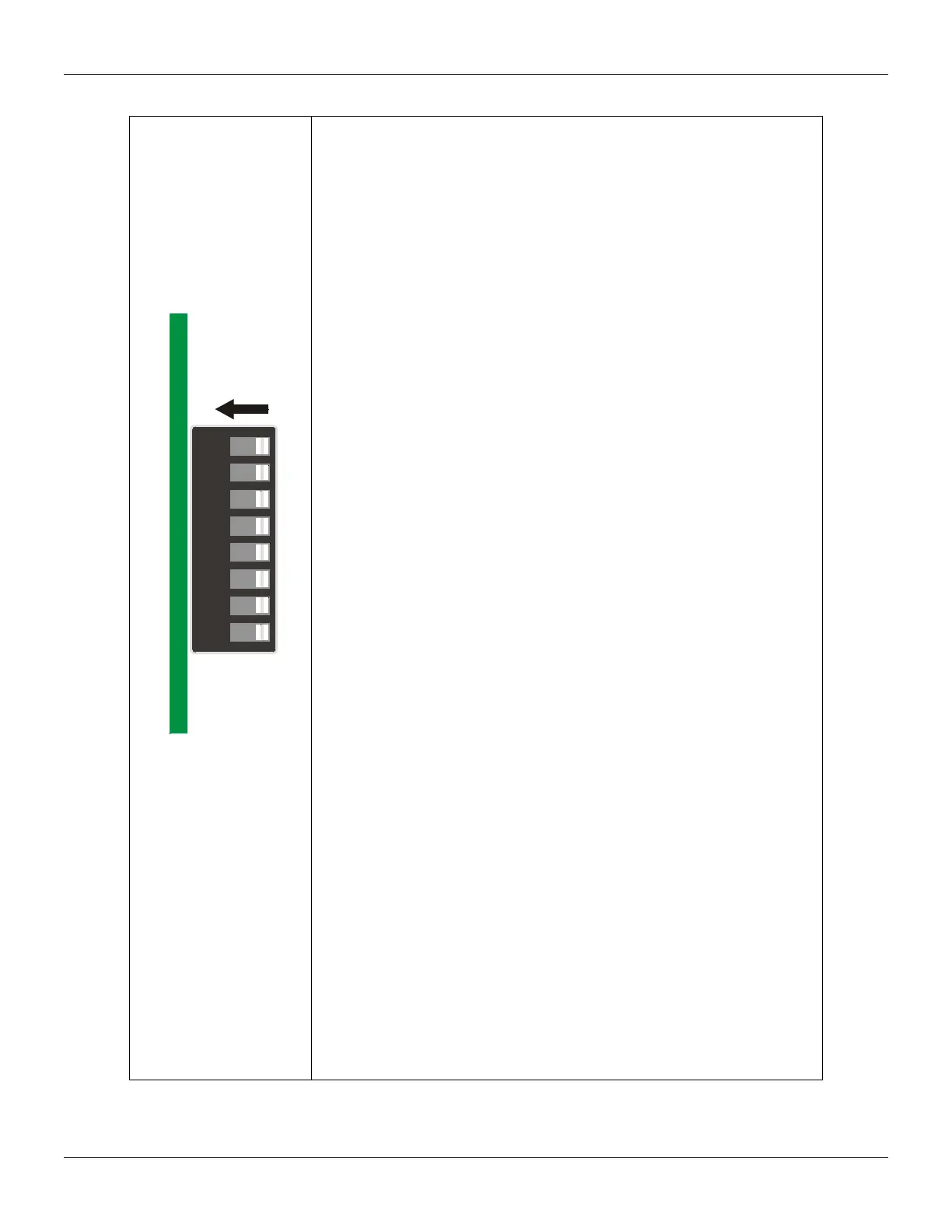

Figure 3. 69- Setting DIP Switches
