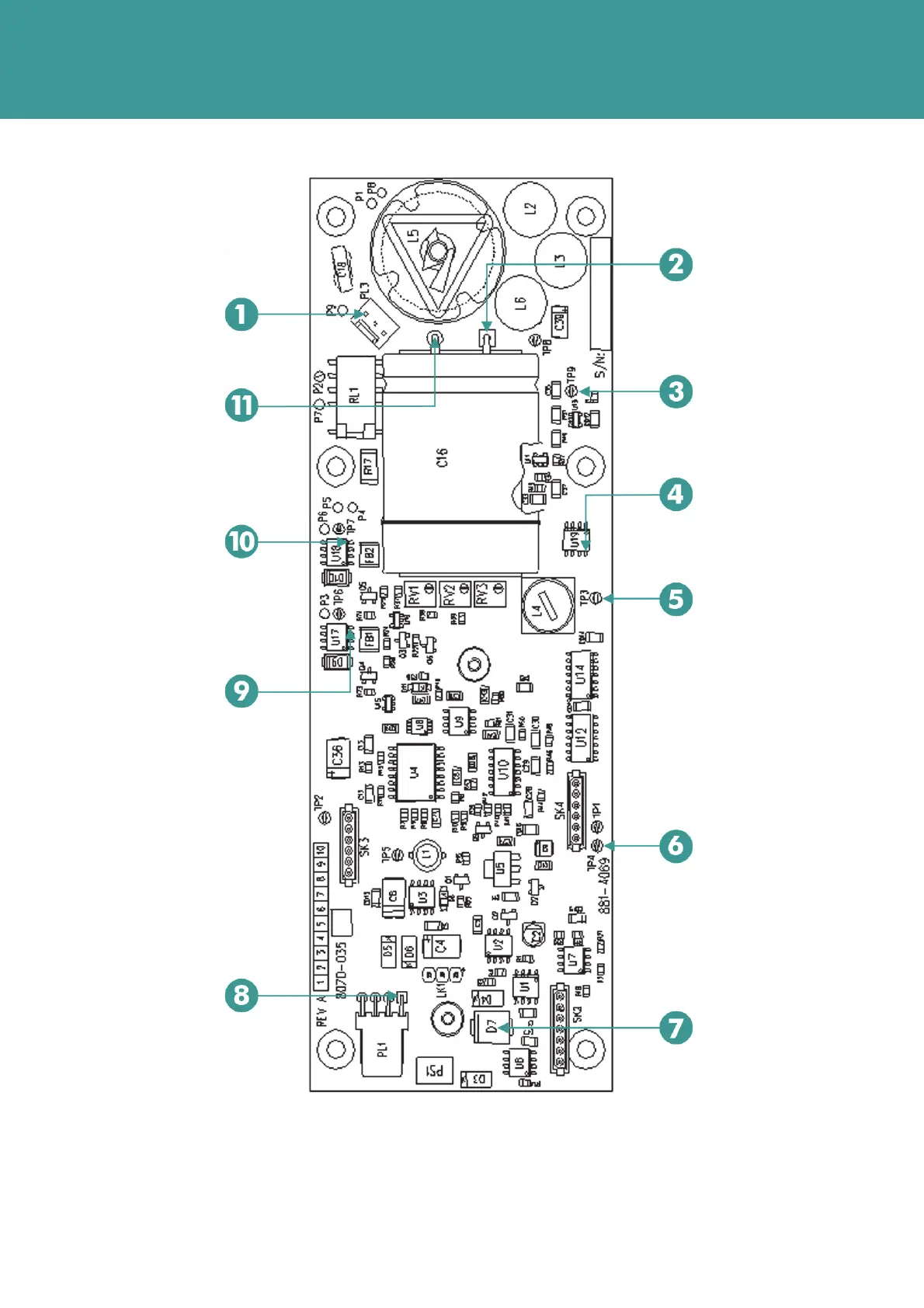

Figure 8-2 – Tx/Rx Board 8270-035

1 PL3.1 4 U19.8 +5V 7 D7 cathode 10 U18.4

2 C16+ Vbatt 5 TP3 8 PL1.1 11 C16 0V

3 TP9 6 TP4 9 U17.4
