Sonardyne 8270 - Diagnostics - Channel Depth Test; Figure 7-41 - Channel Depth Test Range

WSM6 Manual
Document Ref: UM-8270-000
Issue: A Rev 0
Section 7
October 2011 81
7.9.3 Diagnostics – Channel Depth Test
The following tests are only applicable if the transponder is fitted with a depth sensor, and depth
replies are switched ON (More button under General Status). An ANT is used to detect the 2 reply
signals from the WSM.
Select Channel Depth Test from the Diagnostics drop down menu, to display the window below:
The operation is identical to Range Test, except that either the Transponder depth, or the raw time
between two reply pulses are displayed.

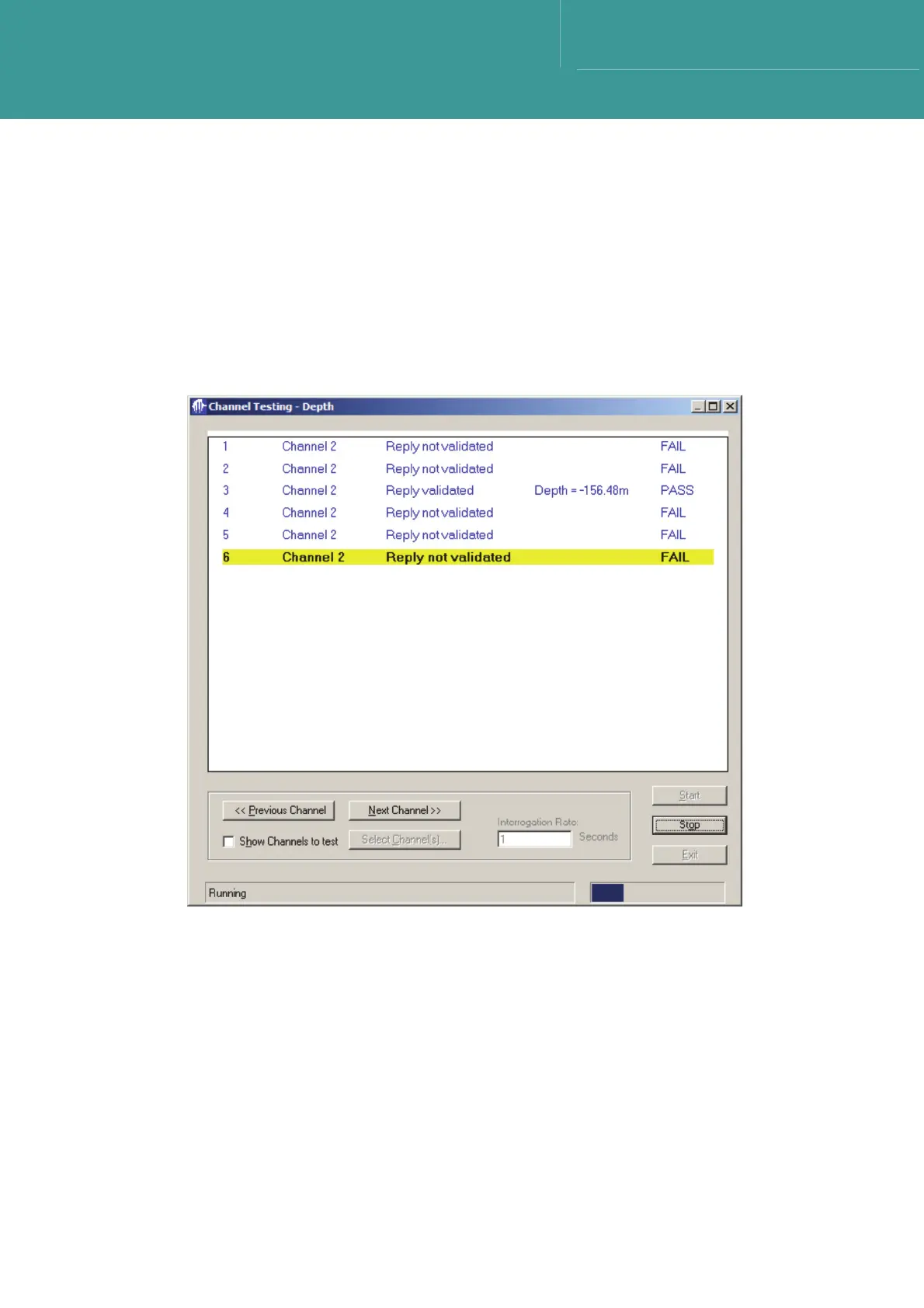

Figure 7-41 – Channel Depth Test range
