WSM6 Manual
Document Ref: UM-8270-000
Issue: A Rev 0
Section 11
117
Externally Powered Indefinite Life
Voltage: 24V dc nominal, 28V dc maximum
Current: Average 100mA when transmitting 1 pulse/sec
External Power Requirement
Maximum 5 Amp for 10ms (voltage should not drop
below 22V)
Subconn MCBH5M with special housing
External Connector
Refer to Section 3.5.18270-000-11 WSM6, and
Section 3.5.28270-000-07 WSM6 for wiring
configurations for variant connections.
Subconn MCIL5F
Mating cable connector
Refer to Section 3.5.18270-000-11 WSM6, and
Section 3.5.28270-000-07 WSM6 for wiring
configurations for variant connections.

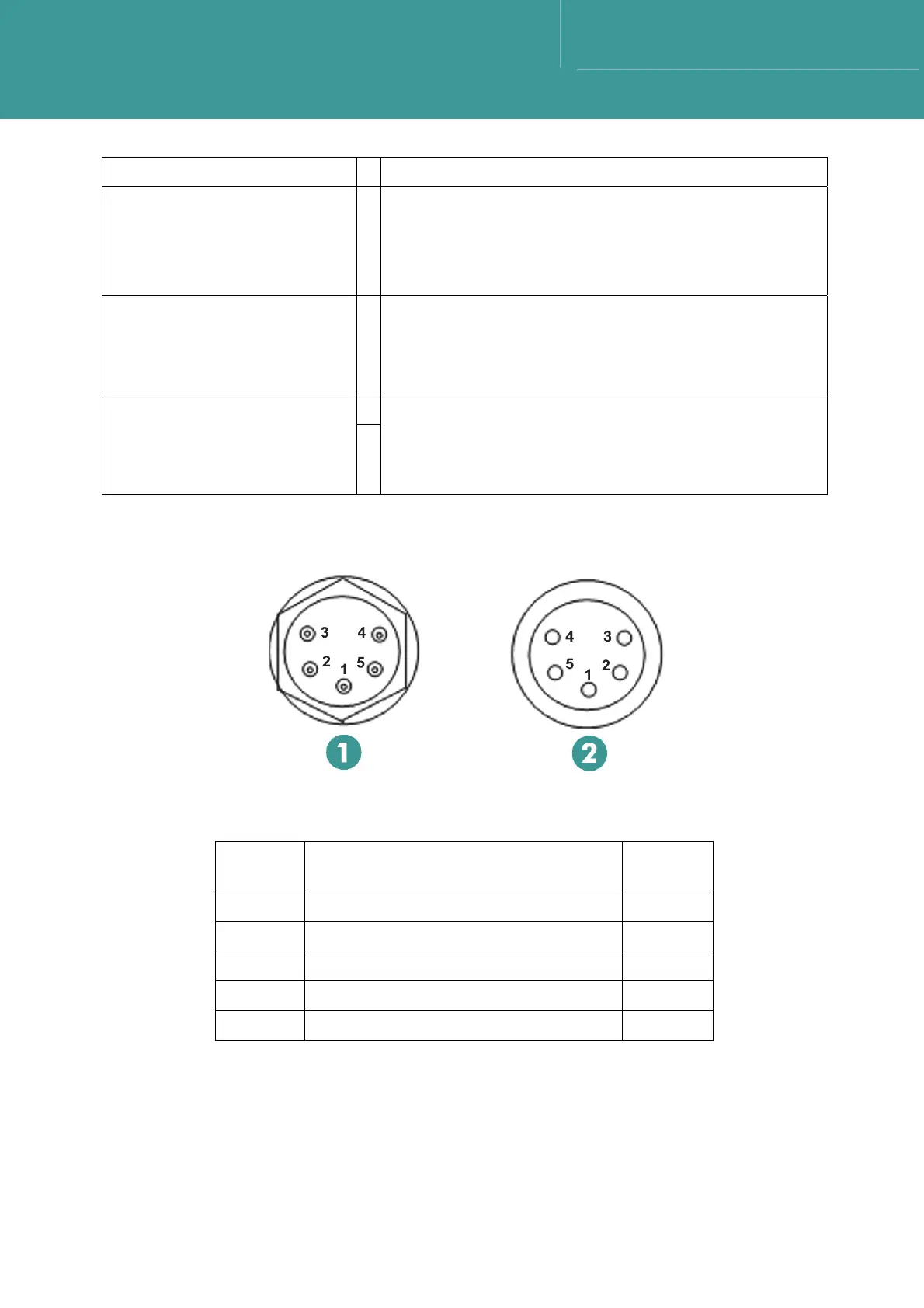

Figure 11-1 – Connector Pin numbering
1 Bulkhead male 2 Cable female
Pin
number
Function Colour
1 Trigger In / Comms In Black
2 0V White
3 Fast Charge / Comms out Red
4 External Power 24V and trickle charge Green
5 Not used Orange
Refer to Section 3.5.28270-000-07 WSM6, and Section 3.5.18270-000-11 WSM6 for wiring
configurations for variant transponders.
October 2011
