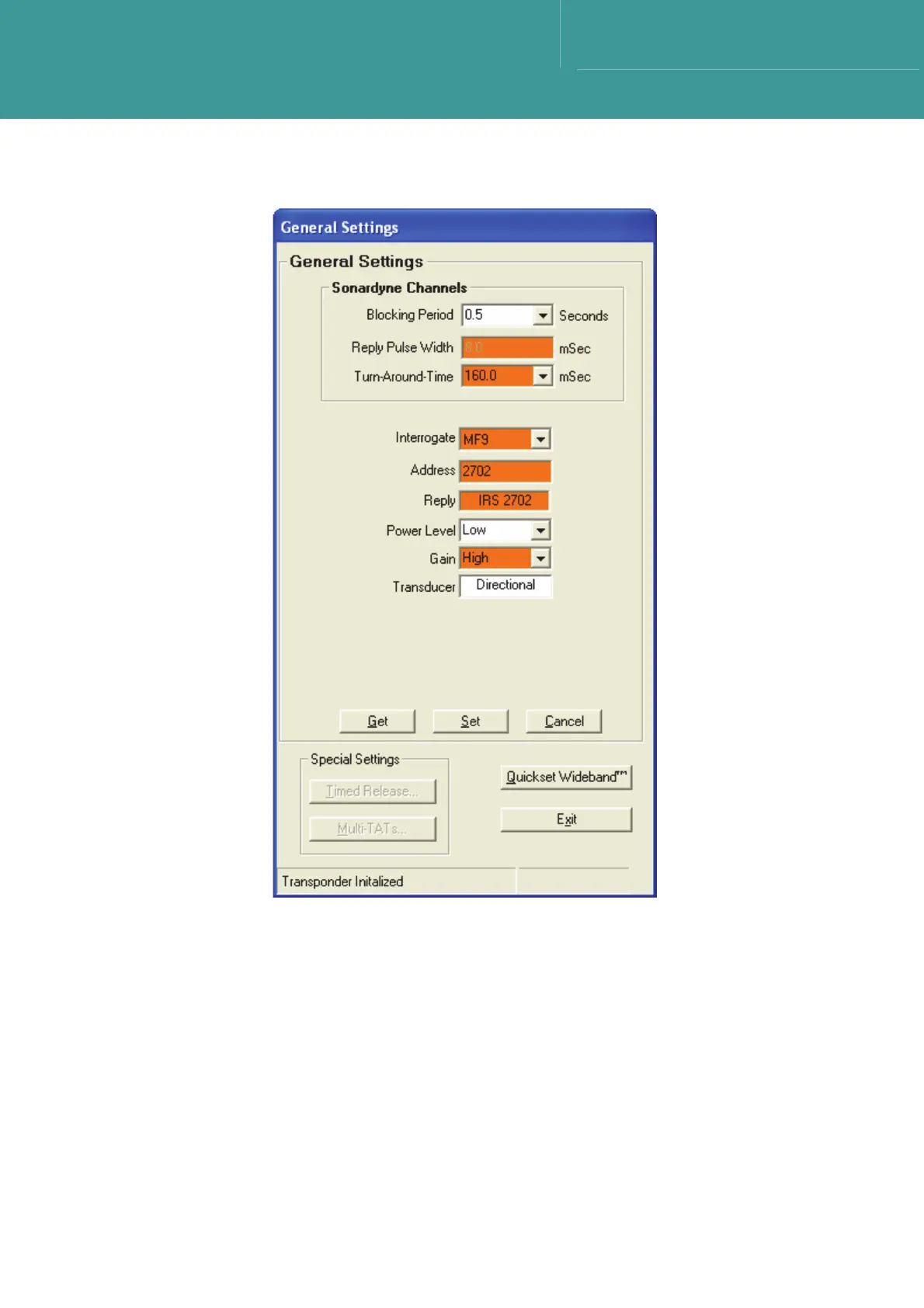

Figure 7-17 – General Settings Sonardyne Interrogate
The Sonardyne Channel groups contain 3 parameters that apply if a Sonardyne Interrogation
mode is selected:
 Blocking Period is the time in seconds the receivers are left disabled following an
interrogation
 Reply Pulse Width will be 4ms if in Tone, or 8ms if in Wideband
 Turn-Around-Time is selected by the drop-down list for all Sonardyne modes
The Interrogate channel and Address are only available when in a Sonardyne Wideband scheme.
The Interrogate channel can be selected from the drop down list.
Command Addresses 3301 to 4714 use a different third command pulse frequency compared to
Addresses 0101 to 1514.
