WSM6 Manual
Document Ref: UM-8270-000
Issue: A Rev 0
Section 3
October 2011 9

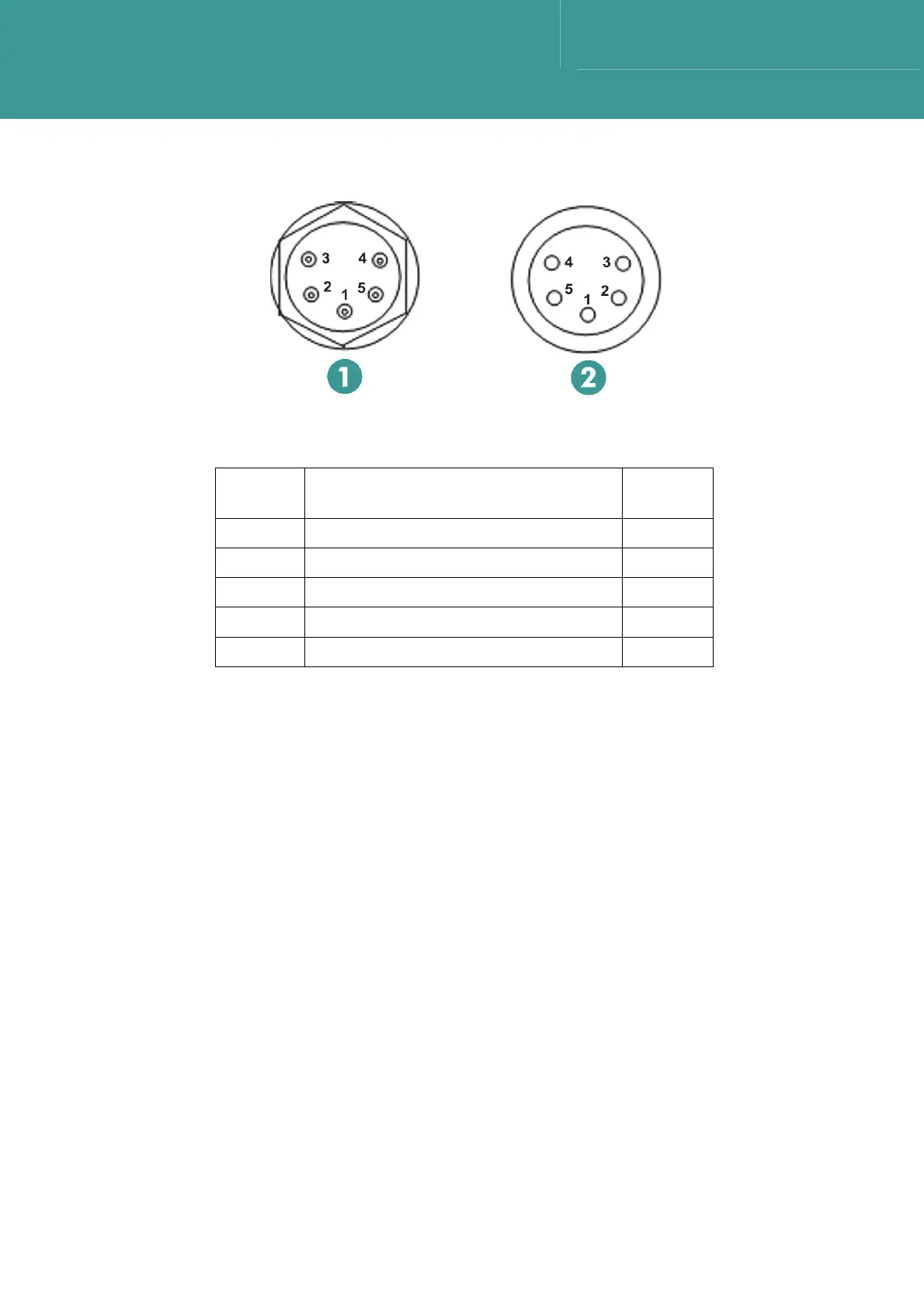

Figure 3-8 – Connector Pin numbering
1 Bulkhead male 2 Cable female
Pin
number
Function Colour
1 Trigger In / Comms In Black
2 0V White
3 Fast Charge / Comms out Red
4 External Power 24V and trickle charge Green
5 Not used Orange
Refer to Section 3.5.18270-000-11 WSM6, and Section 3.5.28270-000-07 WSM6 for wiring
configurations for variant transponders.
