WSM6 Manual
Document Ref: UM-8270-000
Issue: A Rev 0
Section 3
6

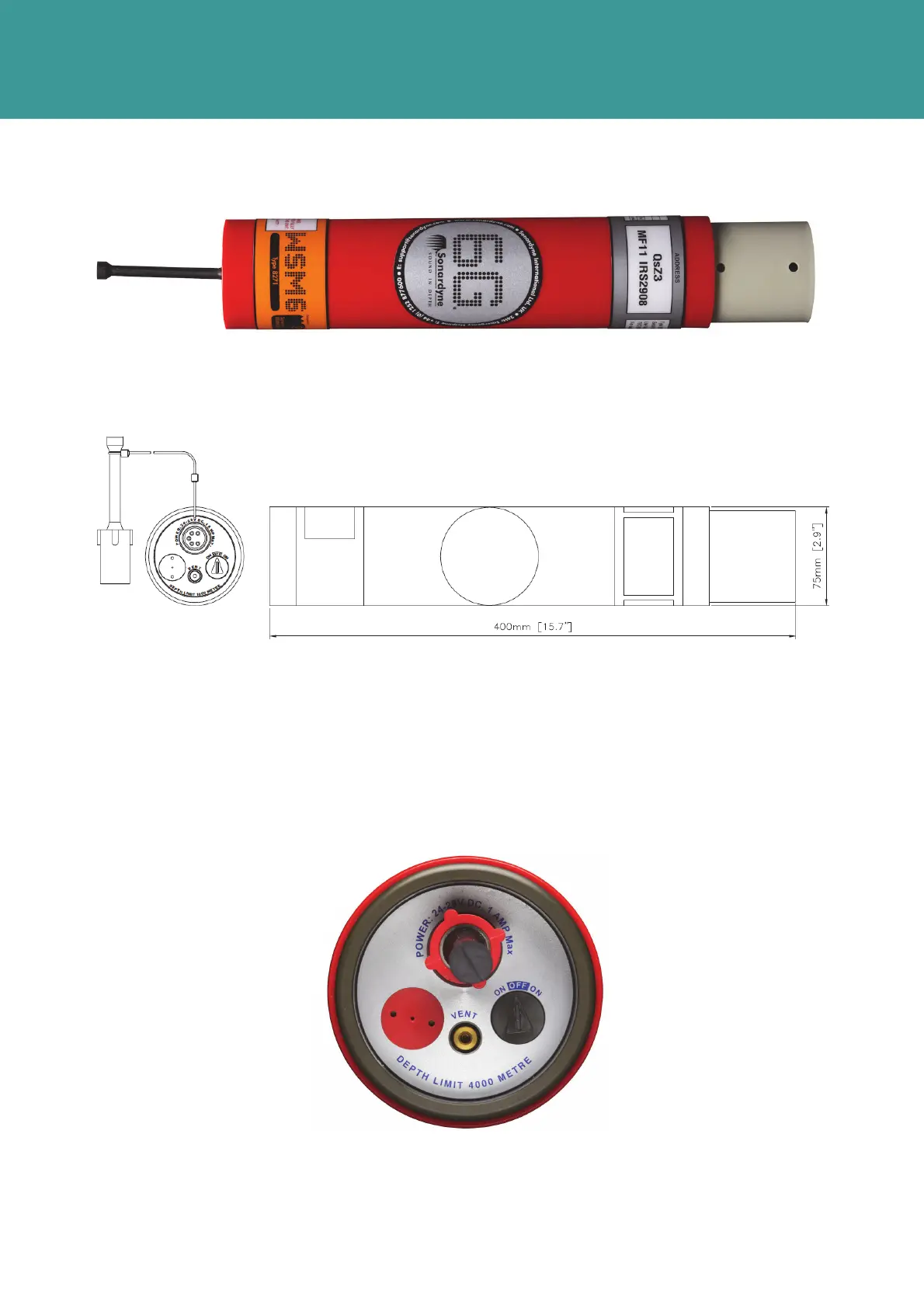

Figure 3-3 – Type 8271 Omni-Directional Wideband Sub-Mini 6G®
Figure 3-4 – Type 8271 Omni Directional Wideband Sub-Mini 6G® Outline Drawing
The connector end-cap shields the electrical charging socket and ON/OFF switch (refer to Figure
3-5 and Figure 3-6). When not in use, the unit should be switched OFF to preserve battery
charge.
It should be noted, however, that Nickel Metal Hydride batteries do self-discharge over a number of
weeks so the WSM6 should always be fully charged before use.
Figure 3-5 – Type 8270 Directional Wideband Sub-Mini 6G® End-Cap
October 2011
