Sonardyne 8270 - Figure 6-2 - Type 8270; 8271 Wideband Sub-Mini 6 Assembly

WSM6 Manual
Document Ref: UM-8270-000
Issue: A Rev 0
Section 6
October 2011 43

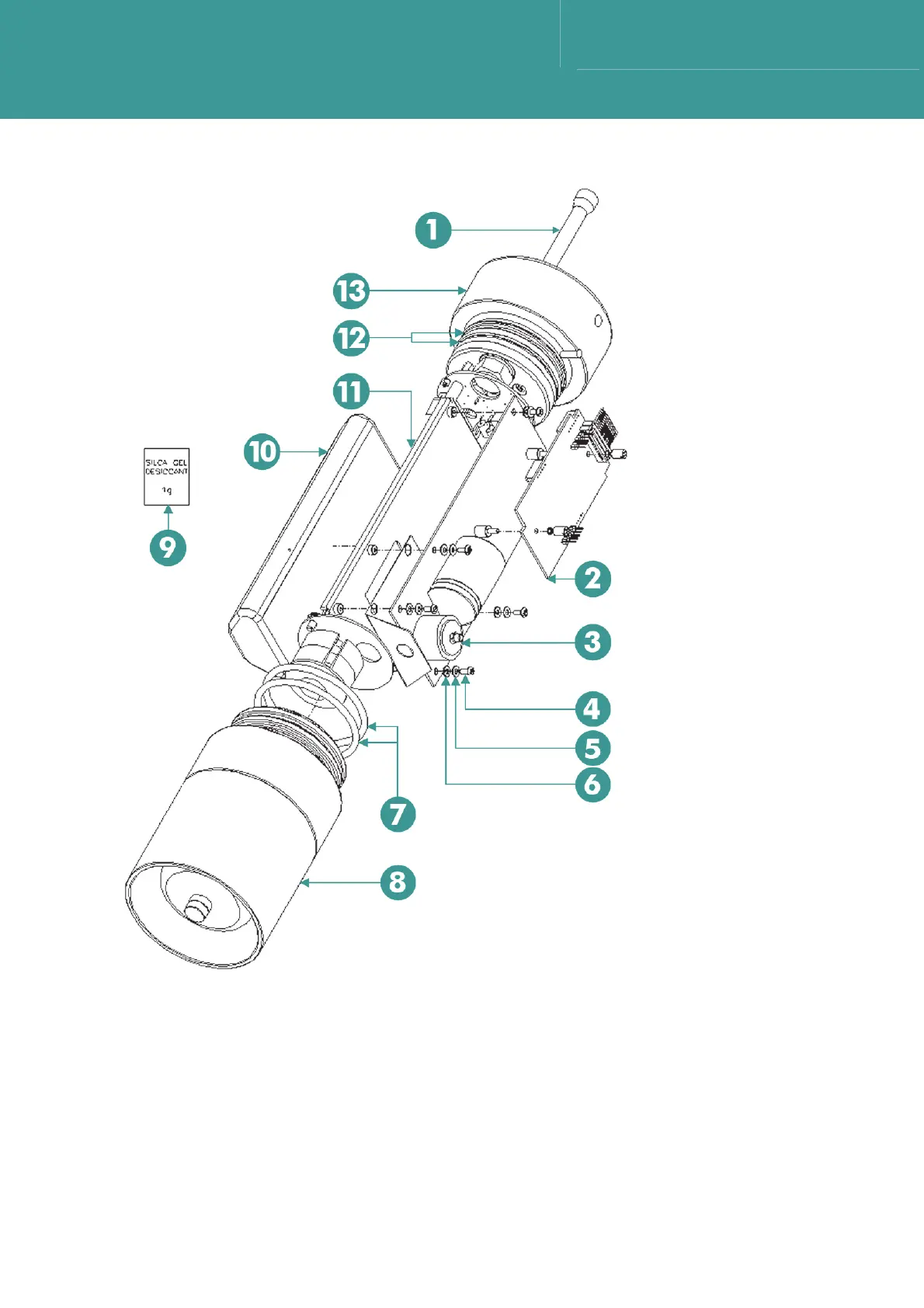

Figure 6-2 – Type 8270 / 8271 Wideband Sub-Mini 6 Assembly
1 Dummy plug 6 M2.5 fibre washer 11 Chassis
2 CPU PCB assembly 7 Double seal ‘O’ rings 12 Double seal ‘O’ rings
3 TX/RX assembly 8 Transducer end-cap 13 Connector end-cap
4 M2.5 x 6 MSZP screw 9 Silca gel desiccant
5 M2.5 crinkle washer 10 Battery
