Sonardyne 8270 - Figure 3-7 - Connector End-Cap

To Next Page

To Previous Page

WSM6 Manual

Document Ref: UM-8270-000

Issue: A Rev 0

Section 3

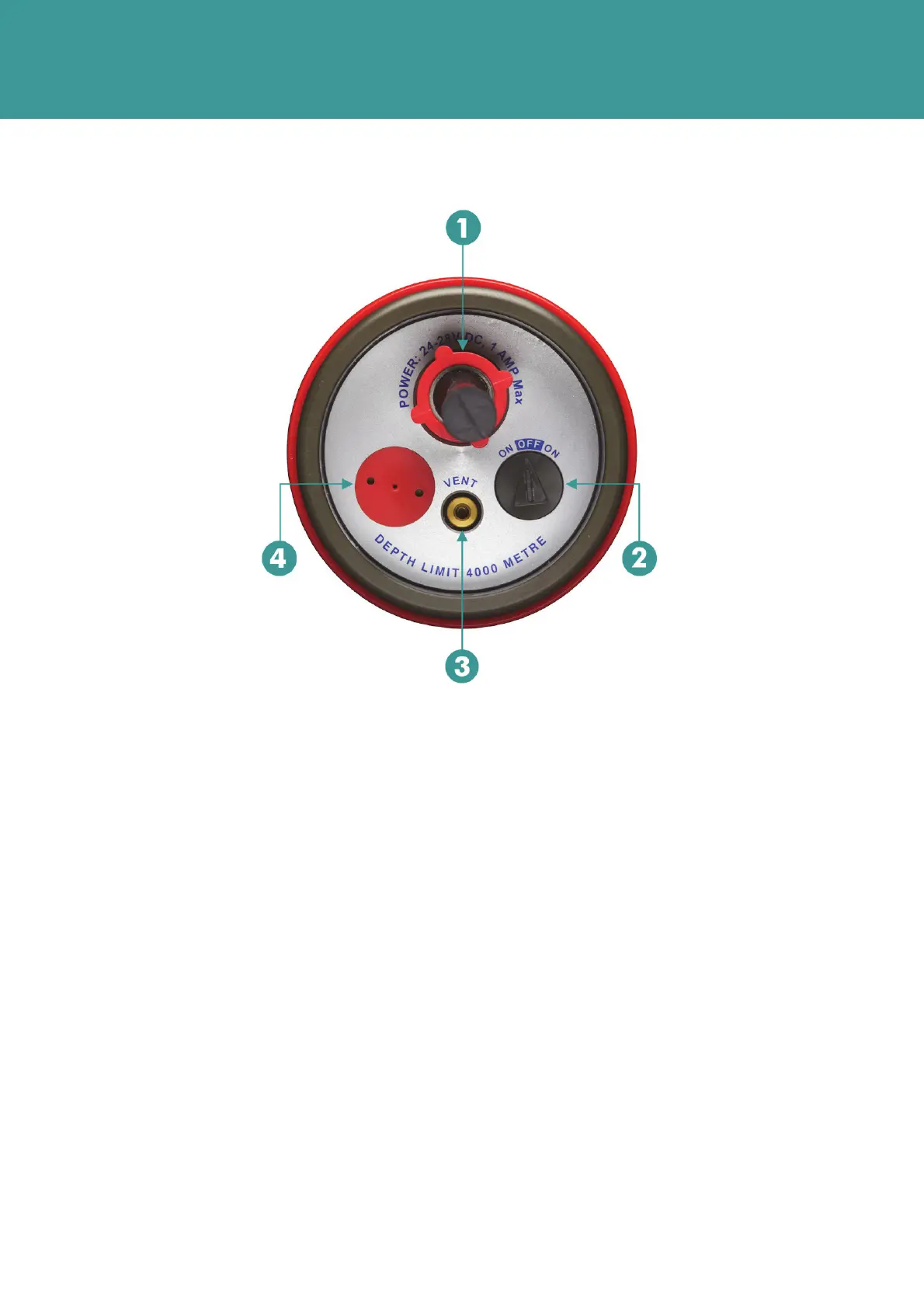

Figure 3-7 – Connector End-cap

1 5 way connector MCBH5M for Comms / charging 3 Pressure Relief Vent Valve

ON/OFF rotary switch

4 Depth Sensor cover plug

October 2011
