WSM6 Manual

Document Ref: UM-8270-000

Issue: A Rev 0

Section 3

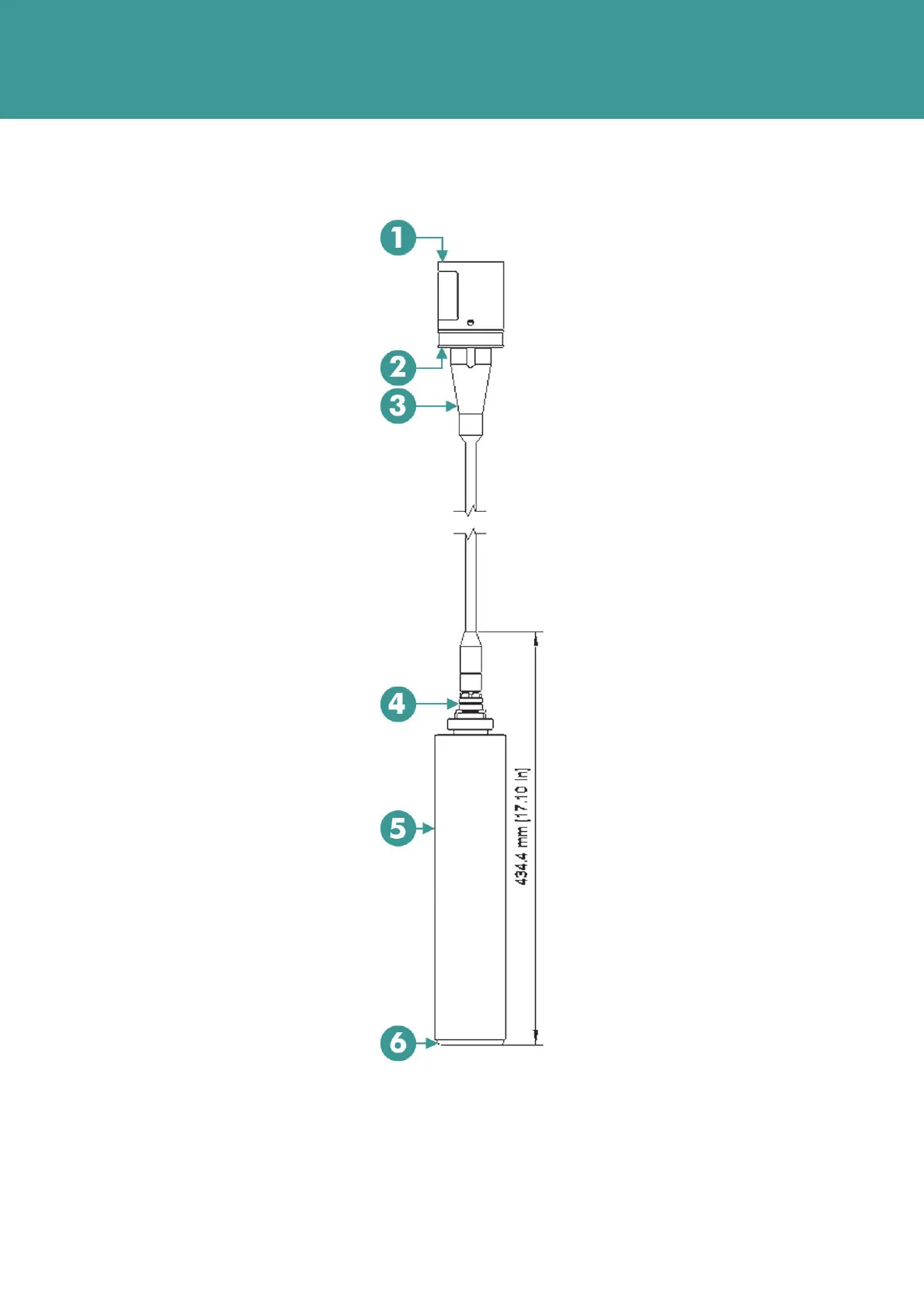

Figure 3-10 – Type 8271-000-07 – 1000M rated Omni-Directional WSM6 with straight remote

Transducer

1 Transducer base PVC 4 Unit covered with PVC sleeve

2 Guard polypropylene 5 Connector aluminium bronze

3 End-cap and housing anodised aluminium alloy 6 Moulding polyurethane

October 2011
