3. The Ping Rate window is used to set the repetition rate in seconds
4. Once started, an audible output should be heard every time the red button is displayed

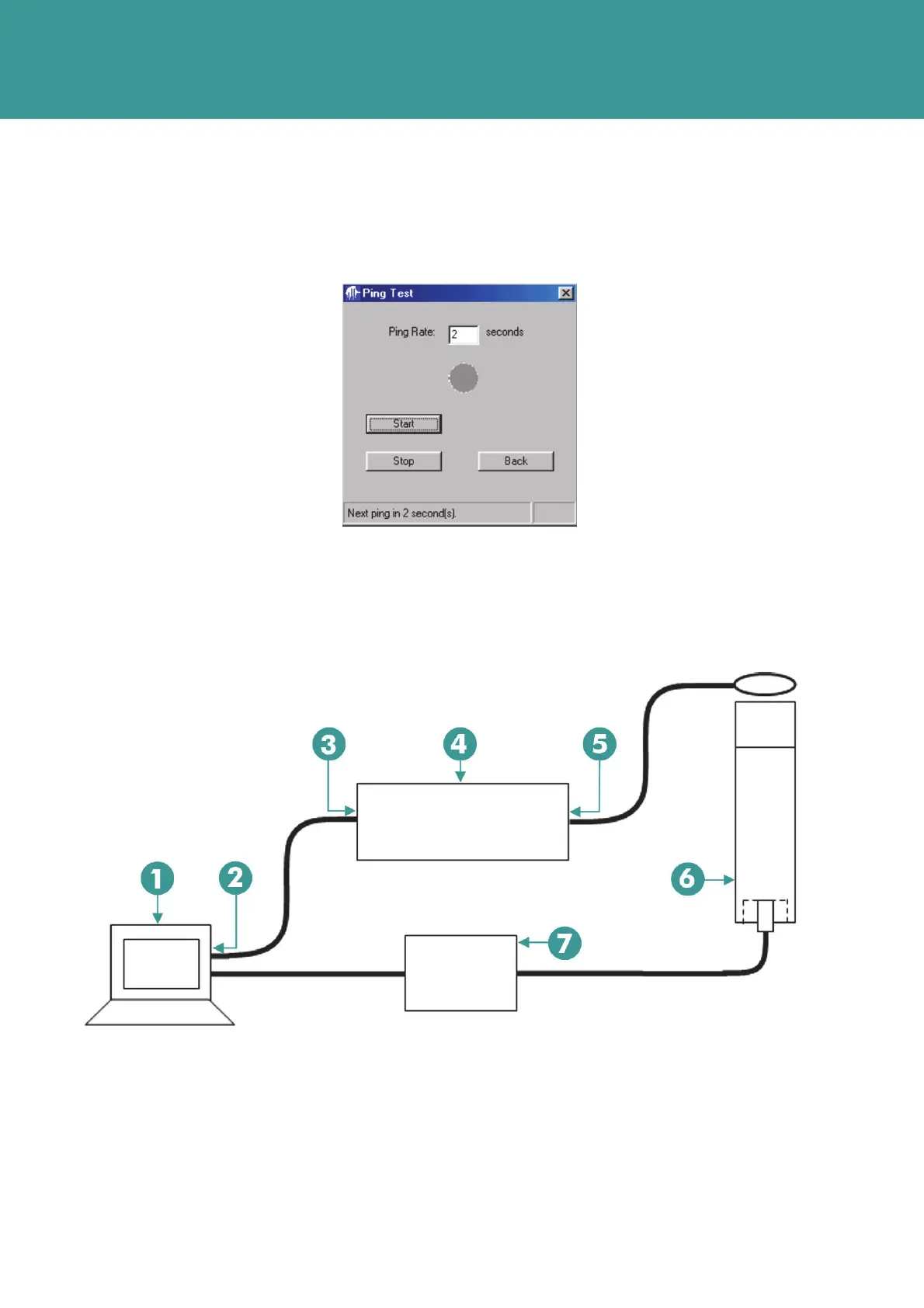

Figure 7-26 – Ping Test
7.9.2 Diagnostics – Channel Range Test using an ANT
This test requires the use of an ANT, and a second PC comm port. Connect the ANT 25 way D
serial port to a free PC Comm port as shown below.
Figure 7-27 – Channel Range Test using ANT
1 PC 5 TDR
2 Comms Port 6 WSM6
3 25W D 7 Charger/Comm’s Interface
4 ANT
