Section 7
76
6. Input the desired channel as shown in Figure 7-32, then select File and Save.

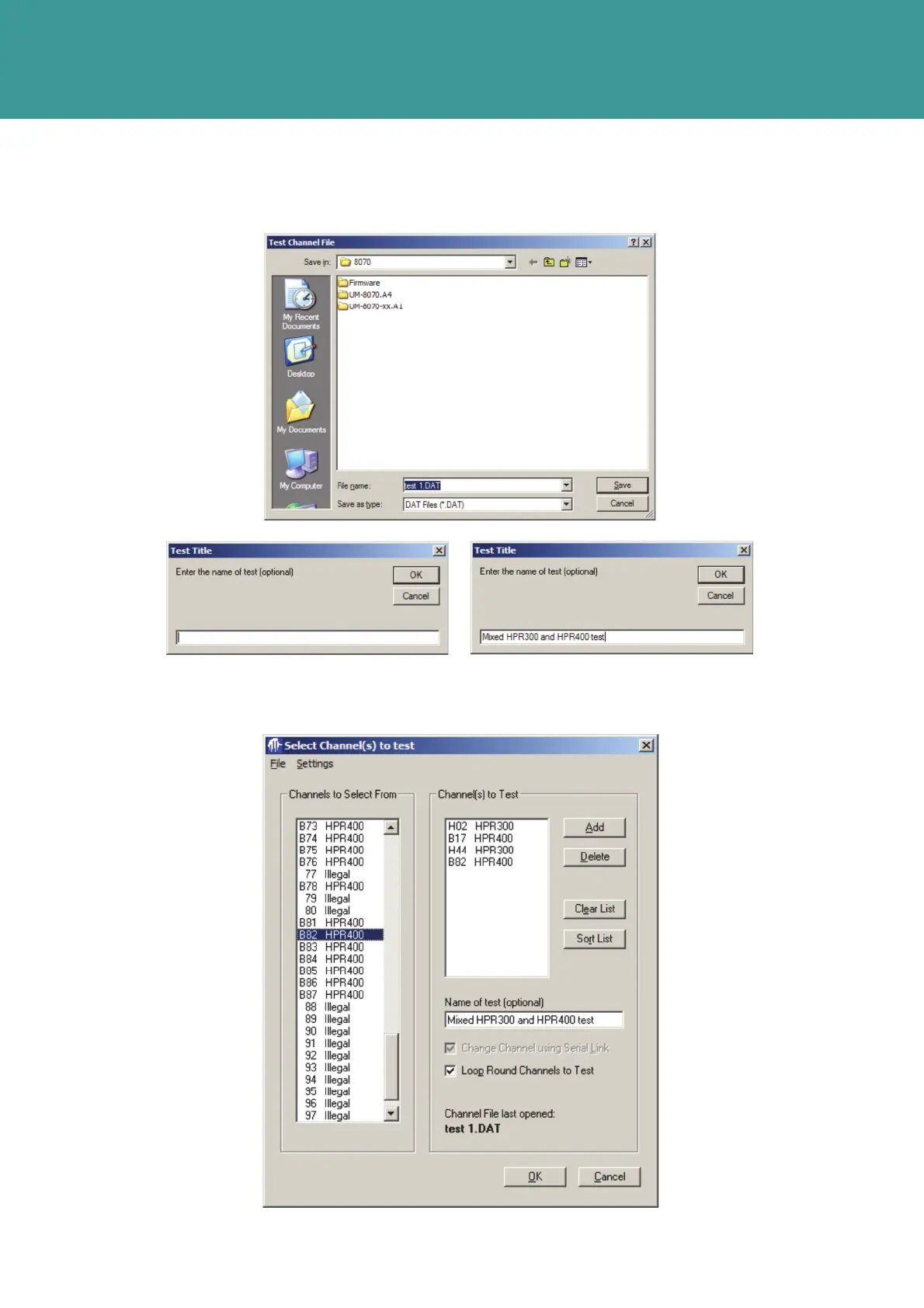

Figure 7-33 – Saving File and resulting screens
7. Pressing OK results in:
Figure 7-34 – Saved Channel results
