Sonardyne 8270 - Figure 7-22 - Firmware Downloading Status; Figure 7-23

To Next Page

To Previous Page

WSM6 Manual

Document Ref: UM-8270-000

Issue: A Rev 0

Section 7

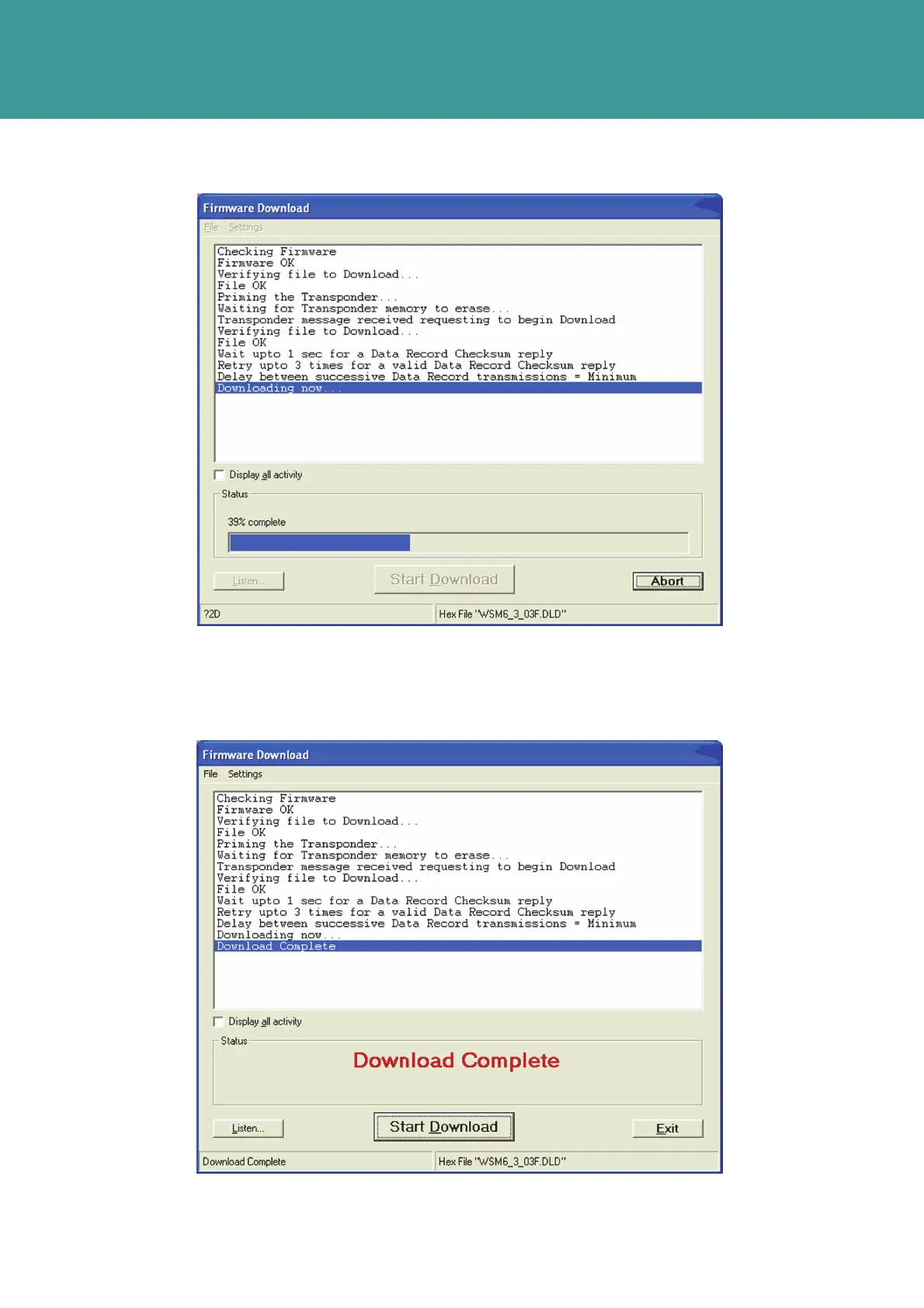

Figure 7-22 – Firmware downloading status

5. When all lines have been sent (typically a few minutes), the operator will be informed the

download is complete.

Figure 7-23 – Firmware download complete
