WSM6 Manual

Document Ref: UM-8270-000

Issue: A Rev 0

Section 3

October 2011 11

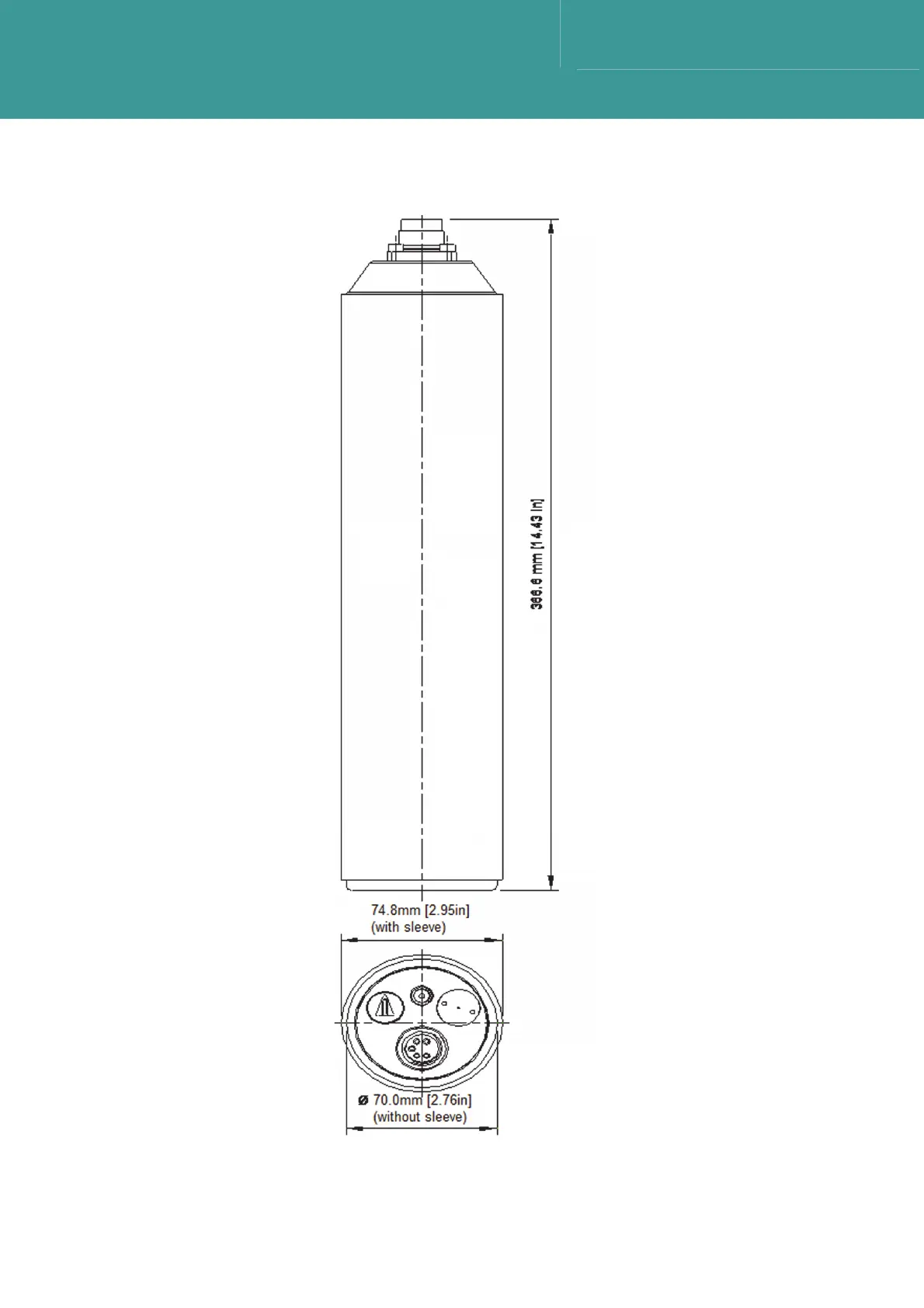

Figure 3-9 – Type 8271-000-07 1000m rated Omni-Directional WSM6 with connector for

remote Transducer
