WSM6 Manual
Document Ref: UM-8270-000
Issue: A Rev 0
Section 3
20
3.5.2 8270-000-07 WSM6
The 8270-000-07 is a special version of the WSM6 and uses an 8-pin Subconn female bulkhead
connector. The performance and behaviour is exactly the same as the 5-pin 8271-000-01 Omni-
Directional 1000m WSM6.
The pin out is compatible with the Compatt 5 wiring.

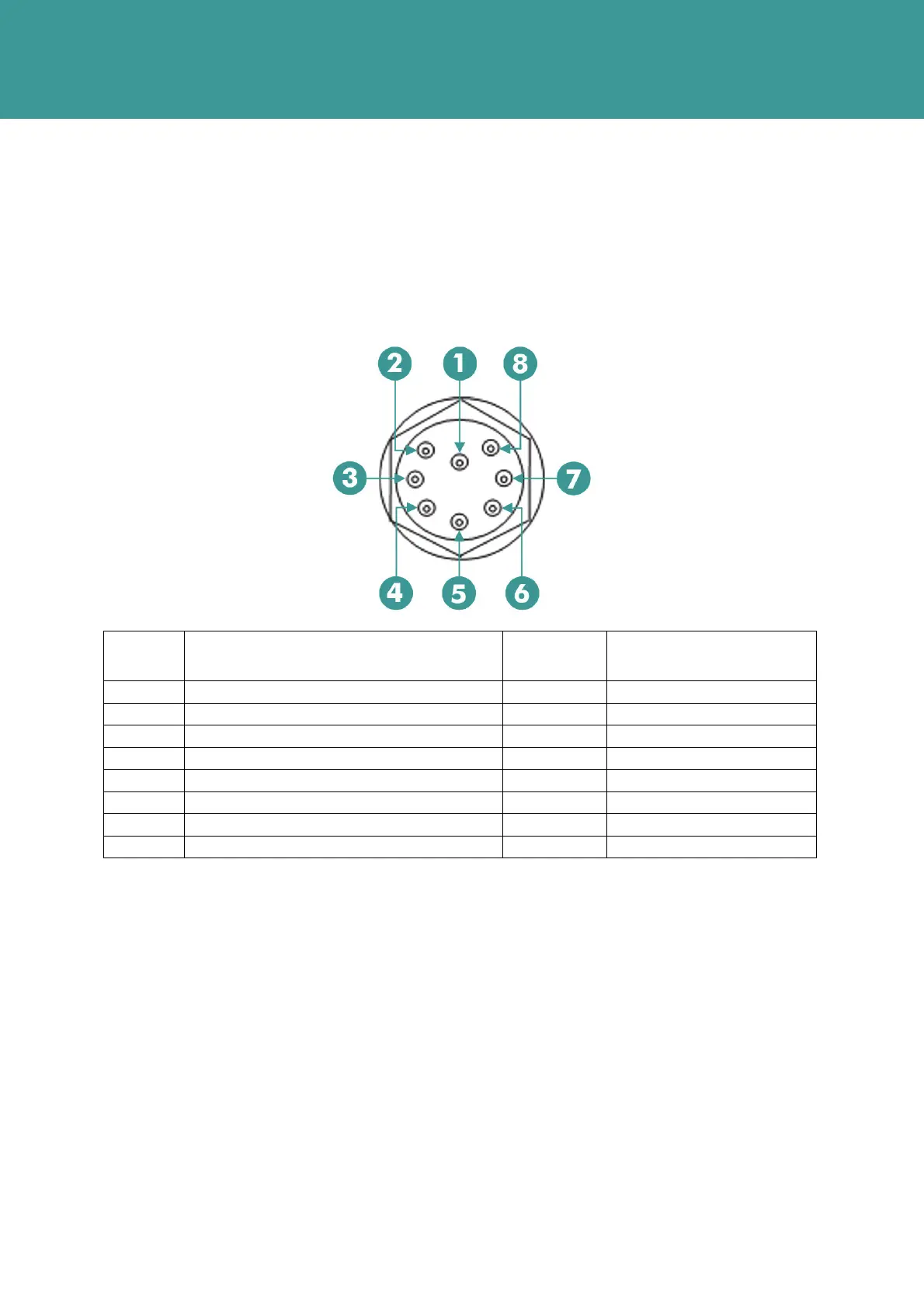

Figure 3-16 – 8270-000-07 connector pin-out
Pin
Number
Function Colour Connection
1 RS232 from PC Black Comms in
2 0V White 0V Common
3 RS232 to PC / Fast Charge Red Comms Out/Fast Charge
4 External Power 24V and trickle charge Green External 28V dc power
5 Not used Orange Not connected
6 Trigger In Blue Trigger In
7 Not Used Wh/Blk Not connected
8 Not Used Red/Blk Not connected
Spares and accessories are available for the Type 8270-000-07 – Wideband Sub-Mini 6 Directional
4000m, (refer to Section 10 - Type 8270-000-07 Wideband Sub-Mini 6G Directional 4000m 8-
pin) and for the Type 8270-000-11 – Wideband Sub-Mini 6 Directional 4000m (refer to Section 10
– Spares Type 8270-000-11 – Wideband Sub-Mini Directional 6G 4000m, 5-pin Female).
October 2011
