Sonardyne 8270 - Diagnostics - Transponder to Transponder Test; Figure 7-42 - Failure to Turn on Depth Sensor; Figure 7-43 - Transponder Not Supported Window

WSM6 Manual
Document Ref: UM-8270-000
Issue: A Rev 0
Section 7
82
Failure to turn on the depth sensor results in:

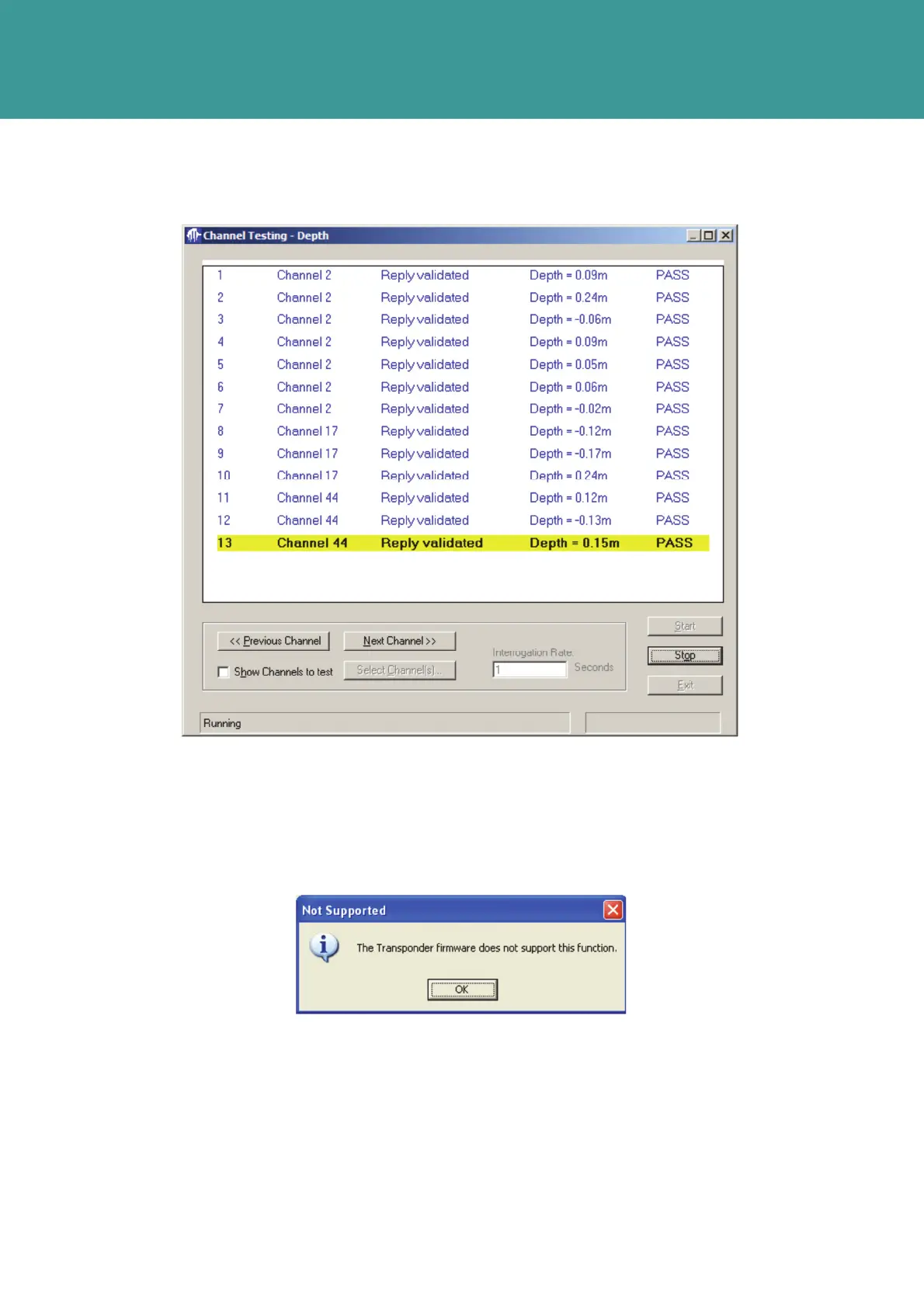

Figure 7-42 – Failure to turn on Depth Sensor
Typical depth results using the same file as for the Channel Range Test.
7.9.4 Diagnostics – Transponder to Transponder Test
This function is not available in WSM6
Figure 7-43 – Transponder not supported window
