Sonardyne 8270 - Quickset Wideband 2; Figure 7-8 - Quickset Wideband 2 Setting

WSM6 Manual
Document Ref: UM-8270-000
Issue: A Rev 0
Section 7
54
7.4.3.2 Quickset Wideband® 2
With the NAV Scheme set to Sonardyne, and the Reply Type can be set to Wideband® 2.

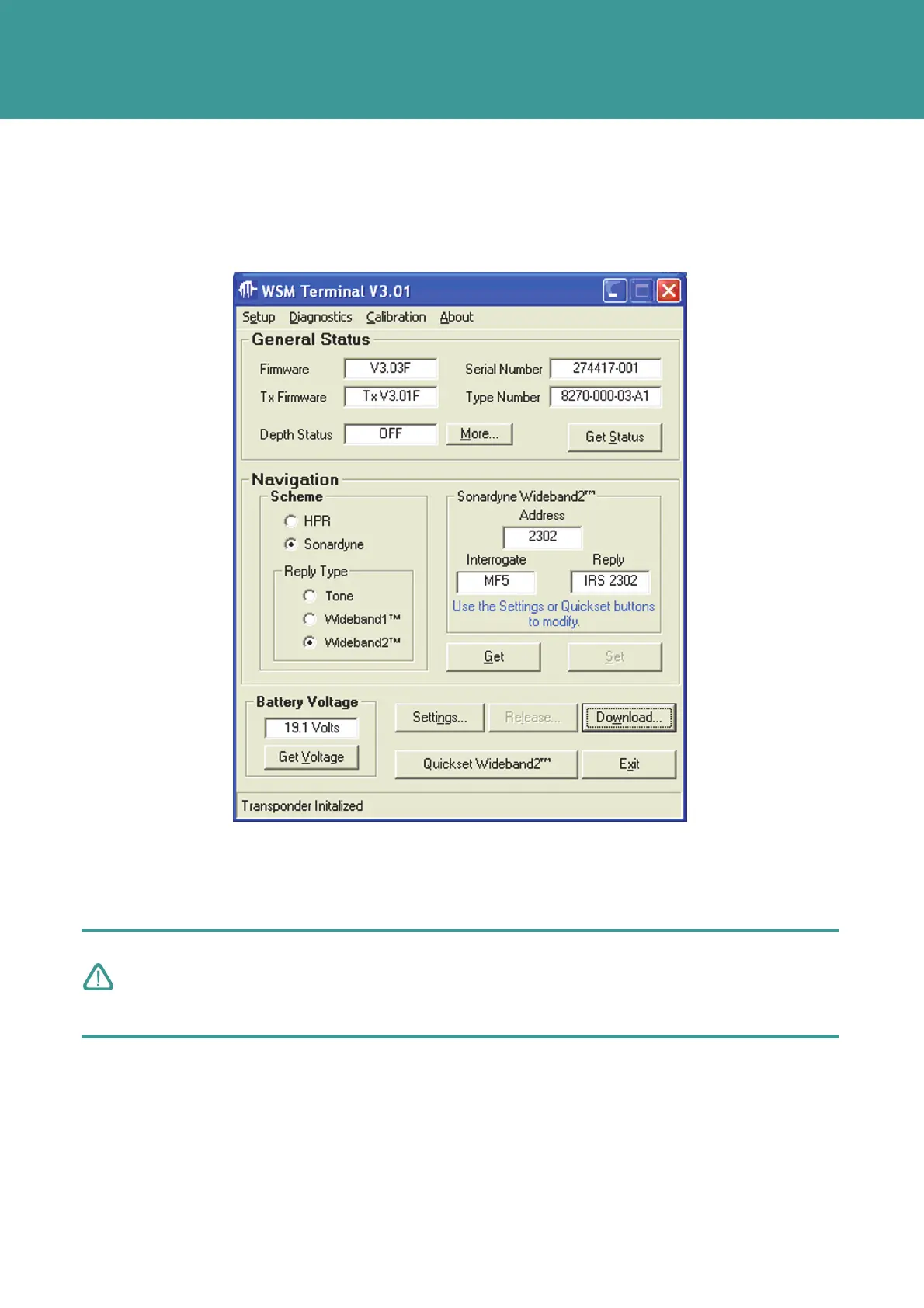

Figure 7-8 – Quickset Wideband® 2 setting
The Interrogate and Reply configuration can be changed by selecting Settings or Quickset
Wideband® 2.
To change the Interrogate and Reply configuration proceed as follows:
CAUTION
Do not operate multiple beacons on the same Quickset Wideband settings in the water
at the same time. The address must be unique to any on e beacon operating in the same
acoustic area.
1. On the WSM Terminal home page, select Quick Wideband® 2.
2. Select one of the nine preset Quickset Wideband® 2 configurations by clicking on the
button, then press Set.
