4. If less than 23.4V, or zero, a fault on the connector, DAS card or interconnections is
indicated.
5. See Section 3.5.1 – 8270-000-11 WSM6, and Section 3.5.2 – 8270-000-07 WSM6 for wiring
configurations for variant transponders.
8.5 Functional Check
8.5.1 Transponder Mode
1. Check the ON/OFF switch on the transponder is in the OFF position.
2. Disconnect the battery pack from the Tx card by disconnecting PL1.

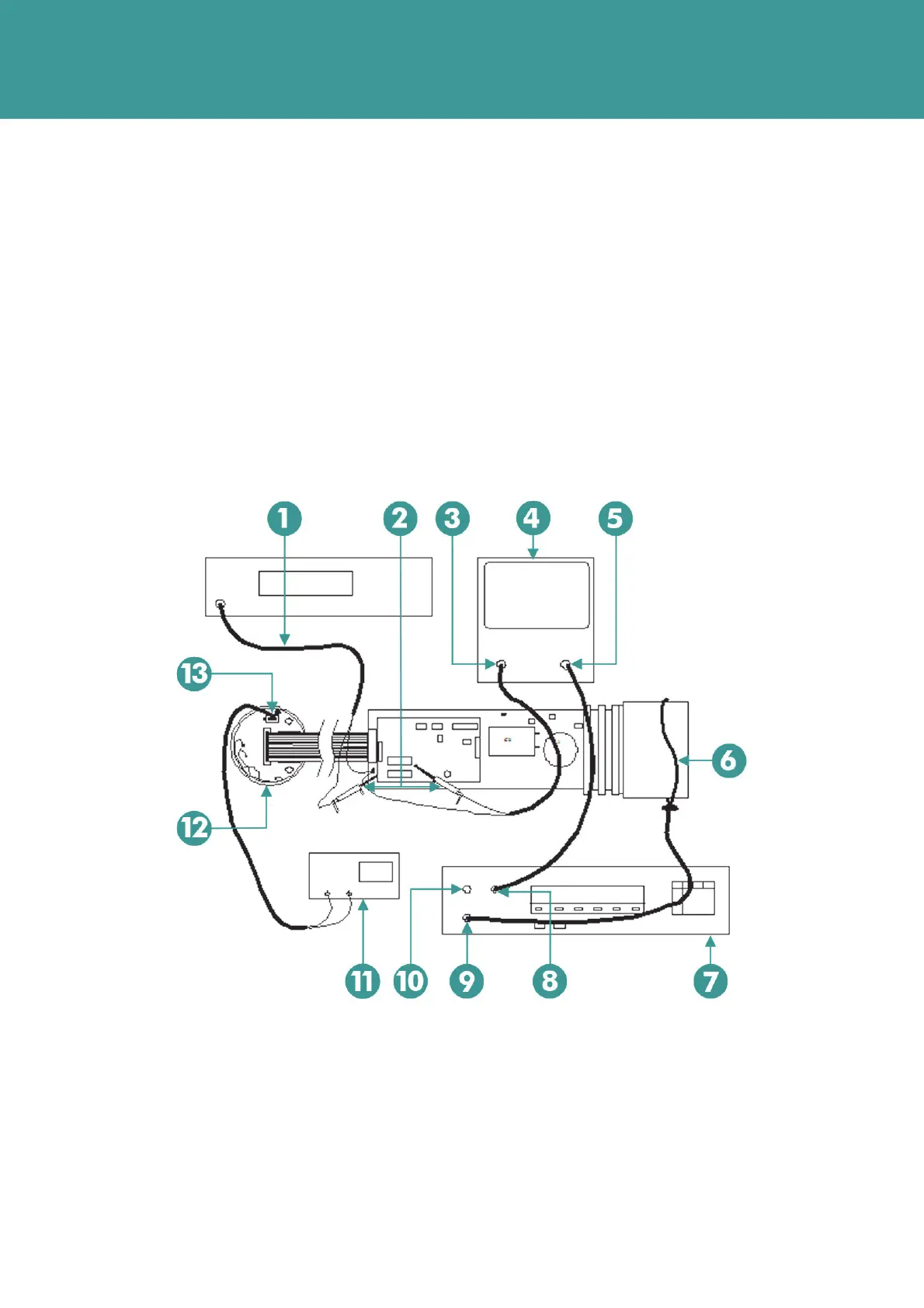

Figure 8-4 – Functional Test Configuration
1 Frequency 6 ANT Coupling 11 Power Supply Unit
2 X10 Probes 7 ANT 12 Switched End cap
3 Ch1 8 Out 13 Battery Connector
4 Oscilloscope 9 TDR
5 Ext 10 In
