WSM6 Manual

Document Ref: UM-8270-000

Issue: A Rev 0

Section 7

October 2011 57

If the mouse hovers over certain data boxes on the page, a prompt will appear displaying the legal

ranges.

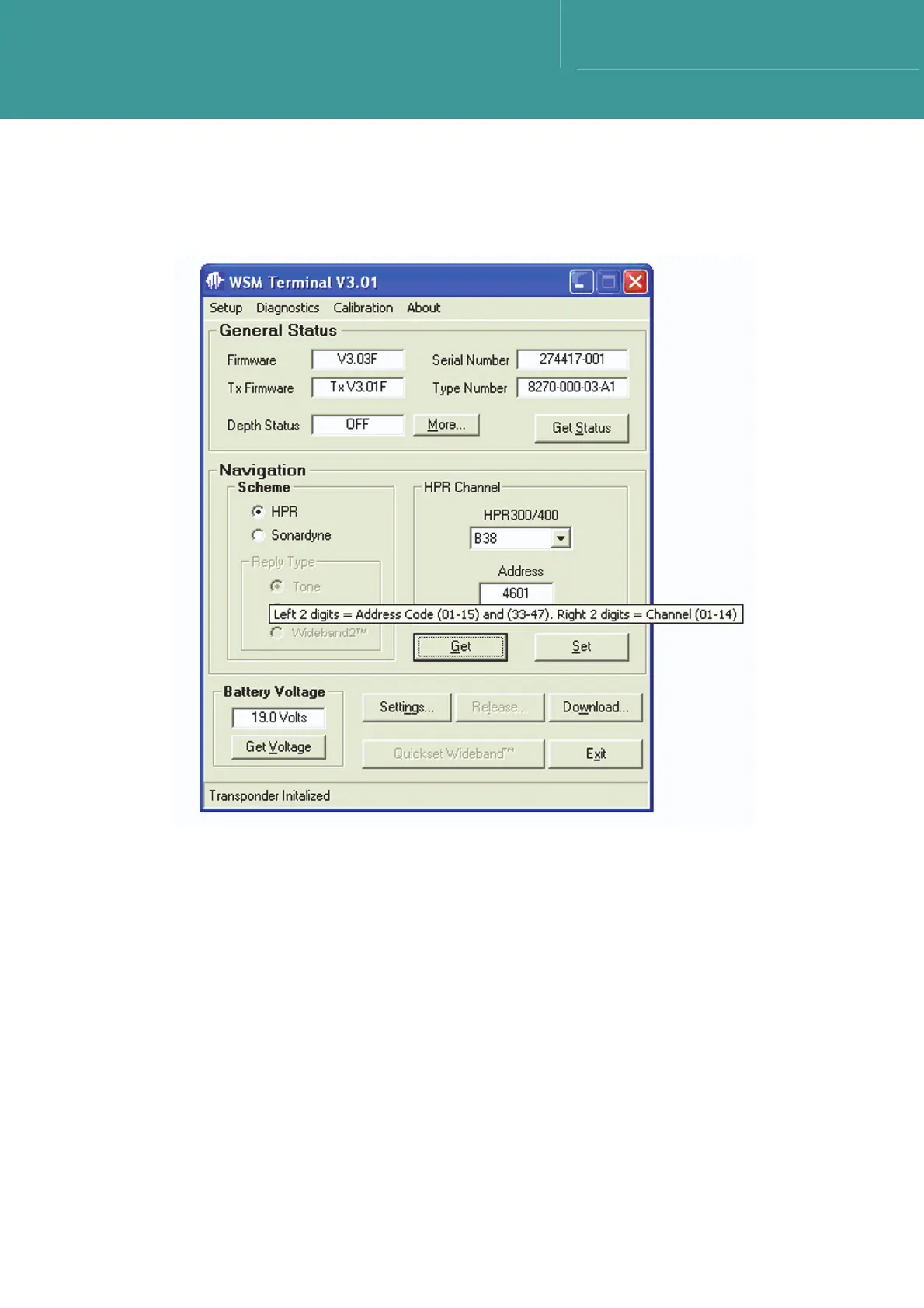

Figure 7-11 – Mouse prompt display
