DCR-PC101/PC101E
COVER
COVER
4-60
For Schematic Diagram
• Refer to page 4-89 for printed wiring board.
FP-100, FP-102, FP-228
4-59

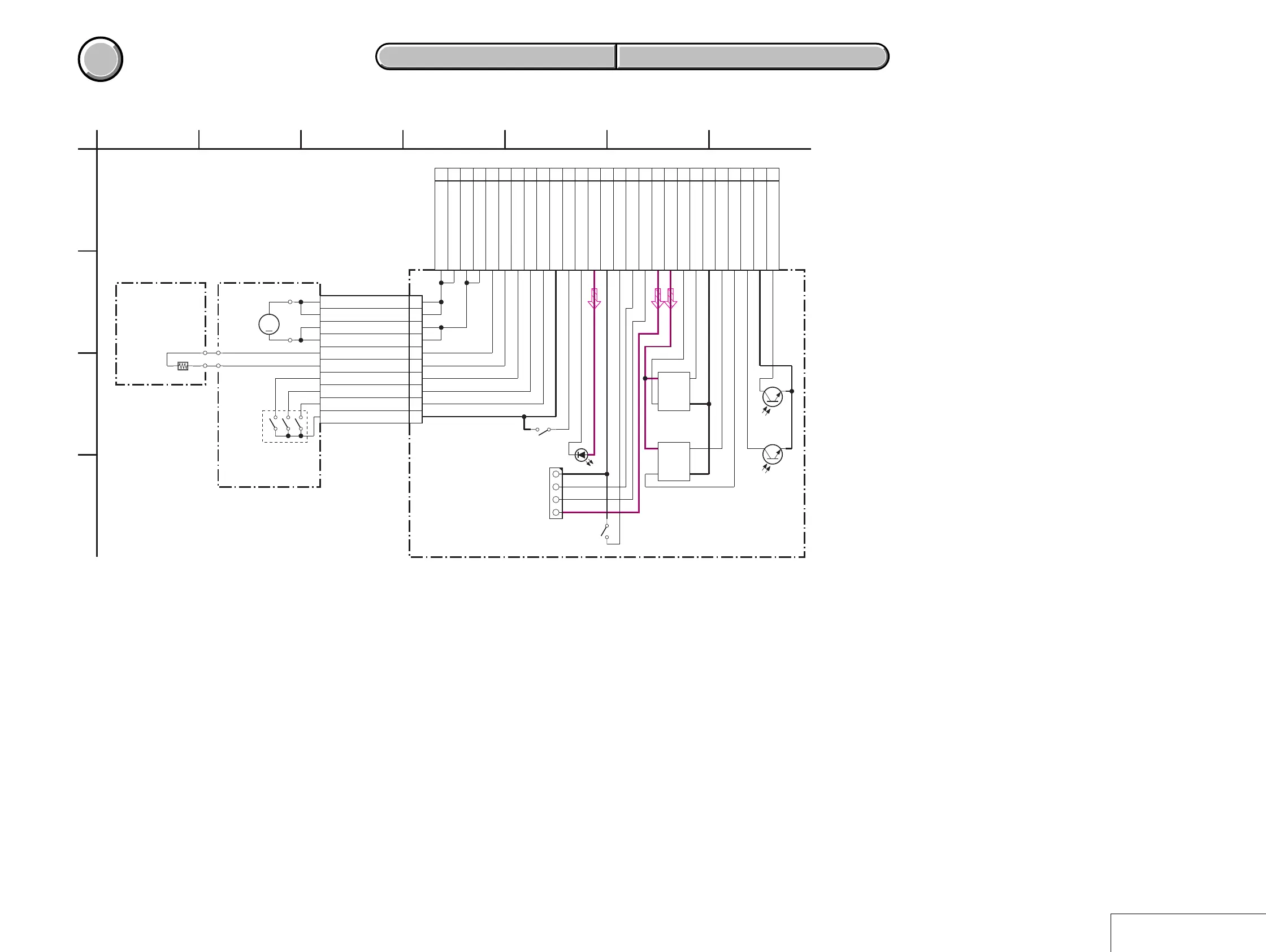

4-2. SCHEMATIC DIAGRAMS FP100, FP-102, FP-228 FLEXIBLE BOARD
4-2. SCHEMATIC DIAGRAMS FP100, FP-102, FP-228 FLEXIBLE BOARD
27P
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27
1LM_LOAD
VC-284 (14/20) CN1008 (SEE PAGE 4-36)
2LM_LOAD
3LM_UNLOAD
4LM_UNLOAD
5DEW+
6DEW-
7MODE A
8MODE B
9MODE C
10SW_COM/SW_GND
S903
D901
4P
CN901
S901
1
A
MIC/REC_SW_GND
TAPE_END
XREC_PROOF
HALL_GND
DEW+
CHIME_VDD
TREEL-
SW_COM/SW_GND
LM_UNLOAD
TOP/END_GND
DEW-
XCCDOWN_SW
TAPE_LED_A
XMODE_SW_A XMODE_SW_B
LM_UNLOAD
LM_LOAD
SREEL-
CHIME_SDA
HALL_VCC
SREEL+
TAPE_TOP
TAPE_LED_K
TREEL+
CHIME_SCK
LM_LOAD
XMODE_SW_C
(CC DOWN)
(TAPE LED)
M
M903
LOADING
MOTOR
S902
MODE
SWITCH
FLEXIBLE BOARD
FP-100
Vcc -
+G
-Vcc
G+
H902
T REEL
SENSOR
H901
S REEL
SENSOR
Q902
TAPE TOP
SENSOR
Q901
TAPE END
SENSOR
(REC PROOF)
FP-102
FLEXIBLE BOARD
DEW
SENSOR
FP-228
FLEXIBLE BOARD
