1.
In the GB PTP Edit window, navigate to the Main tab.
2.
Under the Main tab of the GB PTP Edit window, make the following settings:
Domain Number: Sets the current PTP Domain Number, as defined in IEEE Std
1588-2008 Section 7.1
Clock Mode: See under "Main tab settings" on page459.
Enable DHCP: This is a checkbox to enable or disable the delivery of IP
addresses from a DHCP Server. The default setting is enabled (the box is
checked).
Static IP Address: When a DHCP server is not requested or is requested but not
available, the PTP Module will use this IP address. In the format “#.#.#.#” with no
leading zeroes or spaces, where each ‘#’ is a decimal integer from the range
[0,255].
Network Mask: When a DHCP server is not requested or is requested but not
available, the PTP Module will use this Network Mask. In the format “#.#.#.#”
with no leading zeroes or spaces, where each ‘#’ is a decimal integer from the
range [0,255].
Default Gateway: When a DHCP server is not requested or is requested but not
available, the PTP Module will use this Default Gateway. In the format “#.#.#.#”
with no leading zeroes or spaces, where each ‘#’ is a decimal integer from the
range [0,255].

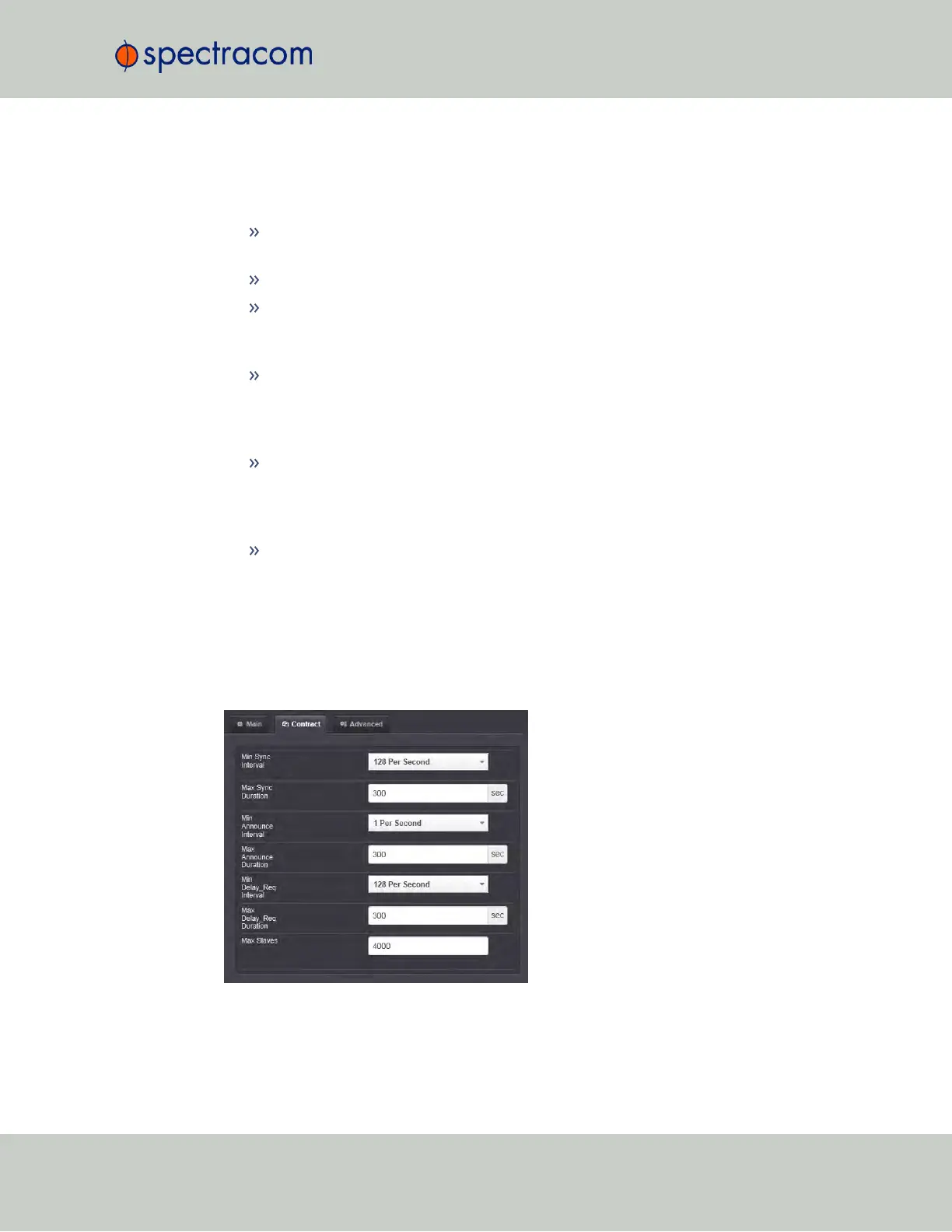

Configuring PTP Contracts
1.
Navigate to the Contract tab of the GB PTP Edit window.
SecureSync User Reference Guide 471
APPENDIX
