162 Maintenance
2006792 Rev B – 200228
a. Place the four new 9.6 x 1.8 O-rings (included with the new Filter) snugly on the
nozzles of the new Filter Assembly.
b. Being careful not to disrupt or disconnect surrounding tubes or wires, move the
new Filter Assembly into position.
c. Make sure that the Filter Nozzles are all seated in their corresponding ports.
d. Replace the eight M3 x 12 screws and the four M3 x 10 screws in their proper
locations to secure the Main Filter Assembly in position.
7. Install the Chip for the new Main Filter Assembly.
a. Locate the Chip Cover:
b. Remove the Chip Cover by unscrewing the two screws holding it in place and
pulling the Chip Cover back.

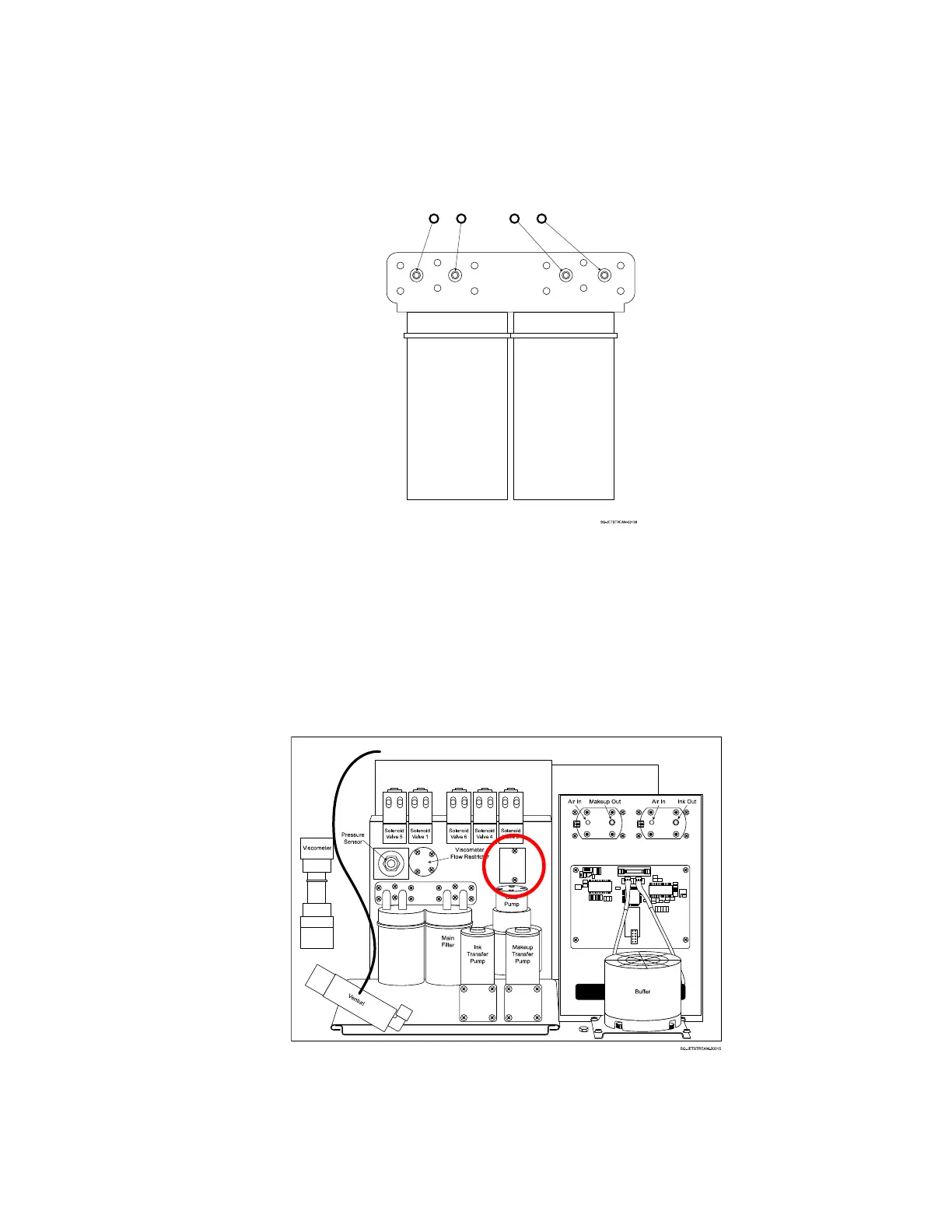

Adding O-Rings to the Filter Assembly
