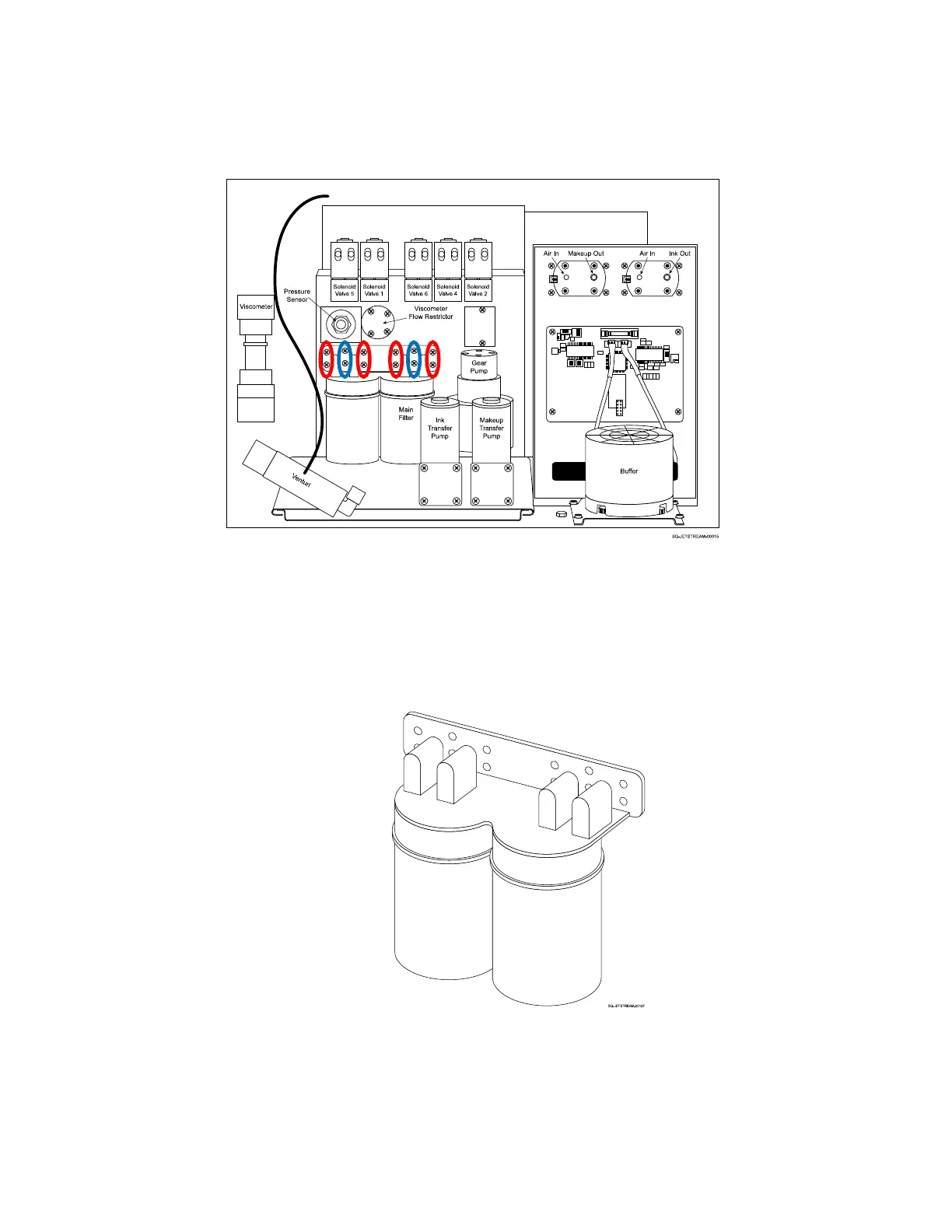

a. Remove the eight M3 x 12 screws (circled in red) and the four M3 x 10 screws
(circled in blue) as shown:
b. Set the screws aside in separate piles to avoid confusion about which screws are
which.
c. Being careful not to disrupt or disconnect surrounding tubes or wires, gently pull
out the old Filter Assembly.
6. Install the new Main Filter Assembly
