RM0090 Flexible static memory controller (FSMC)

1588

NOR Flash, multiplexed I/Os

NOR-Flash memories are addressed in 16-bit words. The maximum capacity is 512 Mbit

(26 address lines).

PSRAM/SRAM, nonmultiplexed I/Os

PSRAM memories are addressed in 16-bit words. The maximum capacity is 512 Mbit (26

address lines).

PSRAM, multiplexed I/Os

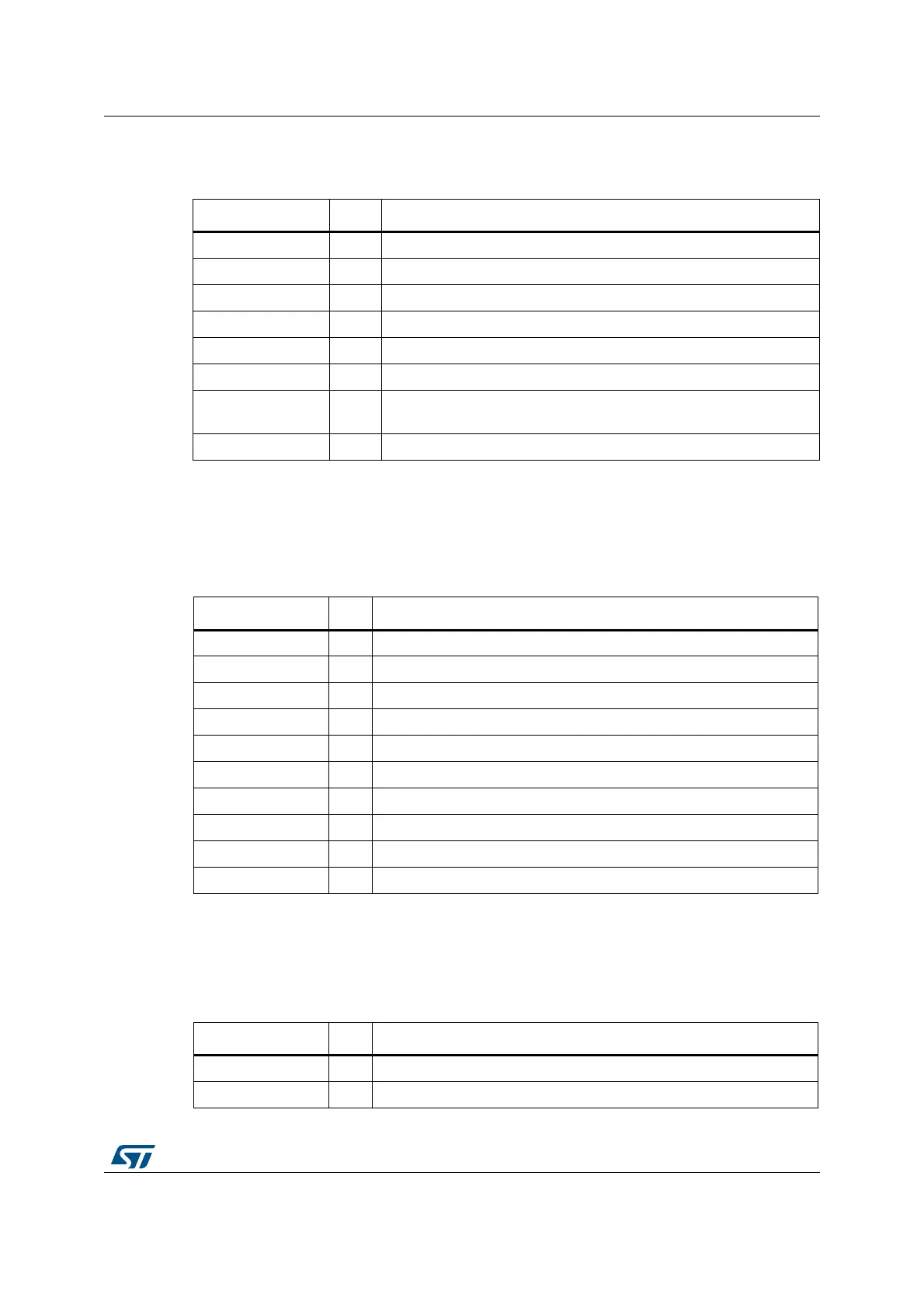

Table 217. Multiplexed I/O NOR Flash

FSMC signal name I/O Function

CLK O Clock (for synchronous access)

A[25:16] O Address bus

AD[15:0] I/O 16-bit multiplexed, bidirectional address/data bus

NE[x] O Chip select, x = 1..4

NOE O Output enable

NWE O Write enable

NL(=NADV) O

Latch enable (this signal is called address valid, NADV, by some NOR

Flash devices)

NWAIT I NOR Flash wait input signal to the FSMC

Table 218. Nonmultiplexed I/Os PSRAM/SRAM

FSMC signal name I/O Function

CLK O Clock (only for PSRAM synchronous access)

A[25:0] O Address bus

D[15:0] I/O Data bidirectional bus

NE[x] O Chip select, x = 1..4 (called NCE by PSRAM (Cellular RAM i.e. CRAM))

NOE O Output enable

NWE O Write enable

NL(= NADV) O Address valid only for PSRAM input (memory signal name: NADV)

NWAIT I PSRAM wait input signal to the FSMC

NBL[1] O Upper byte enable (memory signal name: NUB)

NBL[0] O Lowed byte enable (memory signal name: NLB)

Table 219. Multiplexed I/O PSRAM

FSMC signal name I/O Function

CLK O Clock (for synchronous access)

A[25:16] O Address bus
