DocID018909 Rev 11 691/1731
RM0090 Basic timers (TIM6&TIM7)
698
register is set, setting the UG bit generates an update event UEV, but the UIF flag is not set
(so no interrupt or DMA request is sent).
When an update event occurs, all the registers are updated and the update flag (UIF bit in
the TIMx_SR register) is set (depending on the URS bit):
• The buffer of the prescaler is reloaded with the preload value (contents of the
TIMx_PSC register)
• The auto-reload shadow register is updated with the preload value (TIMx_ARR)
The following figures show some examples of the counter behavior for different clock
frequencies when TIMx_ARR = 0x36.

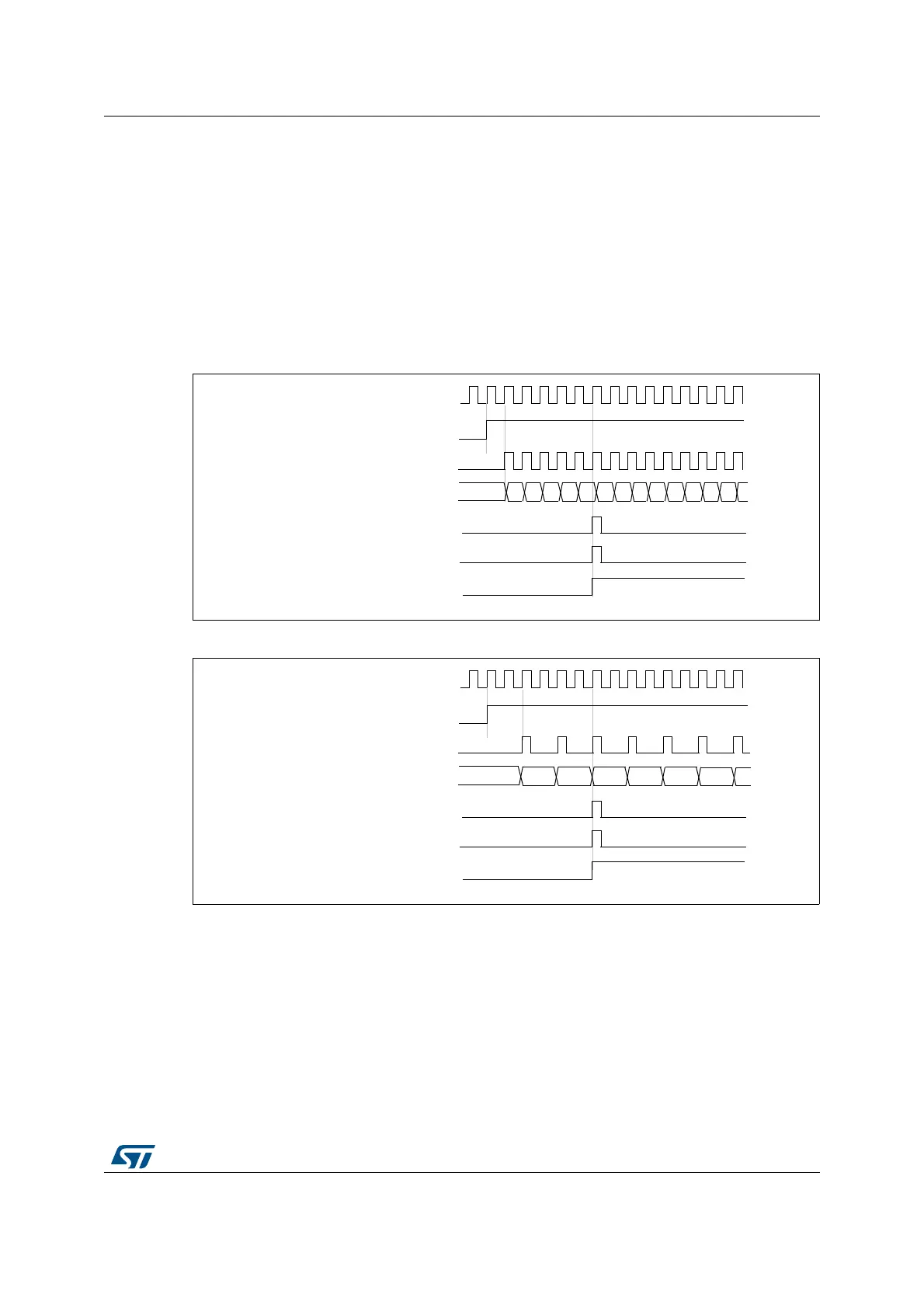

Figure 206. Counter timing diagram, internal clock divided by 1
Figure 207. Counter timing diagram, internal clock divided by 2
CK_INT
00
CNT_EN
Timer clock = CK_CNT
Counter register
Update interrupt flag (UIF)
Counter overflow
Update event (UEV)
01 02 03 04 05 06 0732 33 34 35 3631
CK_INT
0035 0000 0001 0002 0003
CNT_EN
Timer clock = CK_CNT
Counter register
Update interrupt flag (UIF)
0034
0036
Counter overflow
Update event (UEV)
