RM0090 Flexible static memory controller (FSMC)

1588

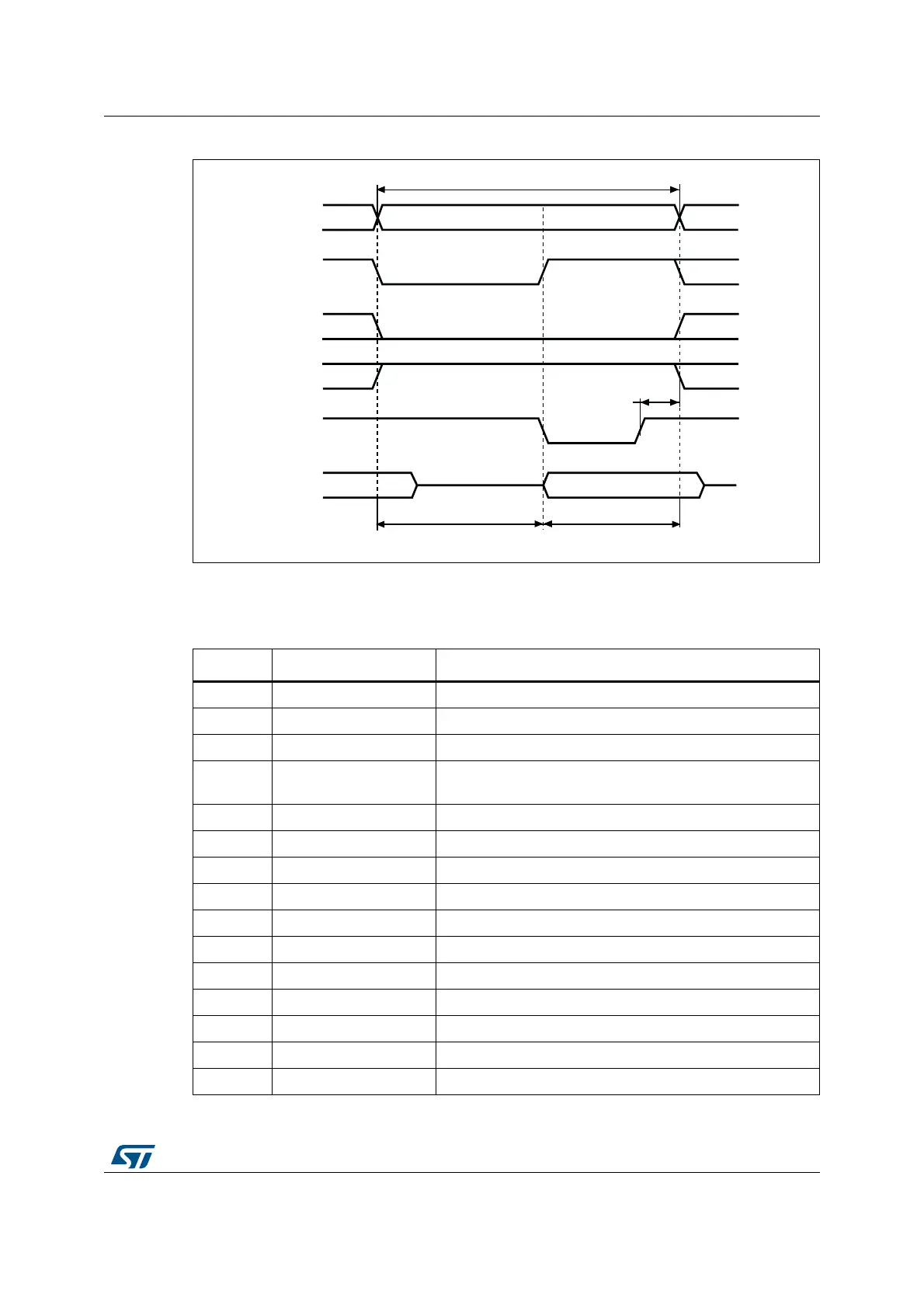

Figure 442. Mode C write accesses

The differences compared with mode1 are the toggling of NOE and the independent read

and write timings.

Table 229. FSMC_BCRx bit fields

Bit No. Bit name Value to set

31-20 Reserved 0x000

19 CBURSTRW 0x0 (no effect on asynchronous mode)

18:16 CPSIZE 0x0 (no effect on asynchronous mode)

15 ASYNCWAIT

Set to 1 if the memory supports this feature. Otherwise keep

at 0.

14 EXTMOD 0x1

13 WAITEN 0x0 (no effect on asynchronous mode)

12 WREN As needed

11 WAITCFG Don’t care

10 WRAPMOD 0x0

9 WAITPOL Meaningful only if bit 15 is 1

8 BURSTEN 0x0

7 Reserved 0x1

6 FACCEN 0x1

5-4 MWID As needed

3-2 MTYP[0:1] 0x2 (NOR Flash memory)

A[25:0]

NOE

ADDSET (DATAST + 1)

Memory transaction

NEx

D[15:0]

HCLK cycles HCLK cycles

NWE

NADV

data driven by FSMC

ai15565

1HCLK
