Flexible static memory controller (FSMC) RM0090

1554/1731 DocID018909 Rev 11

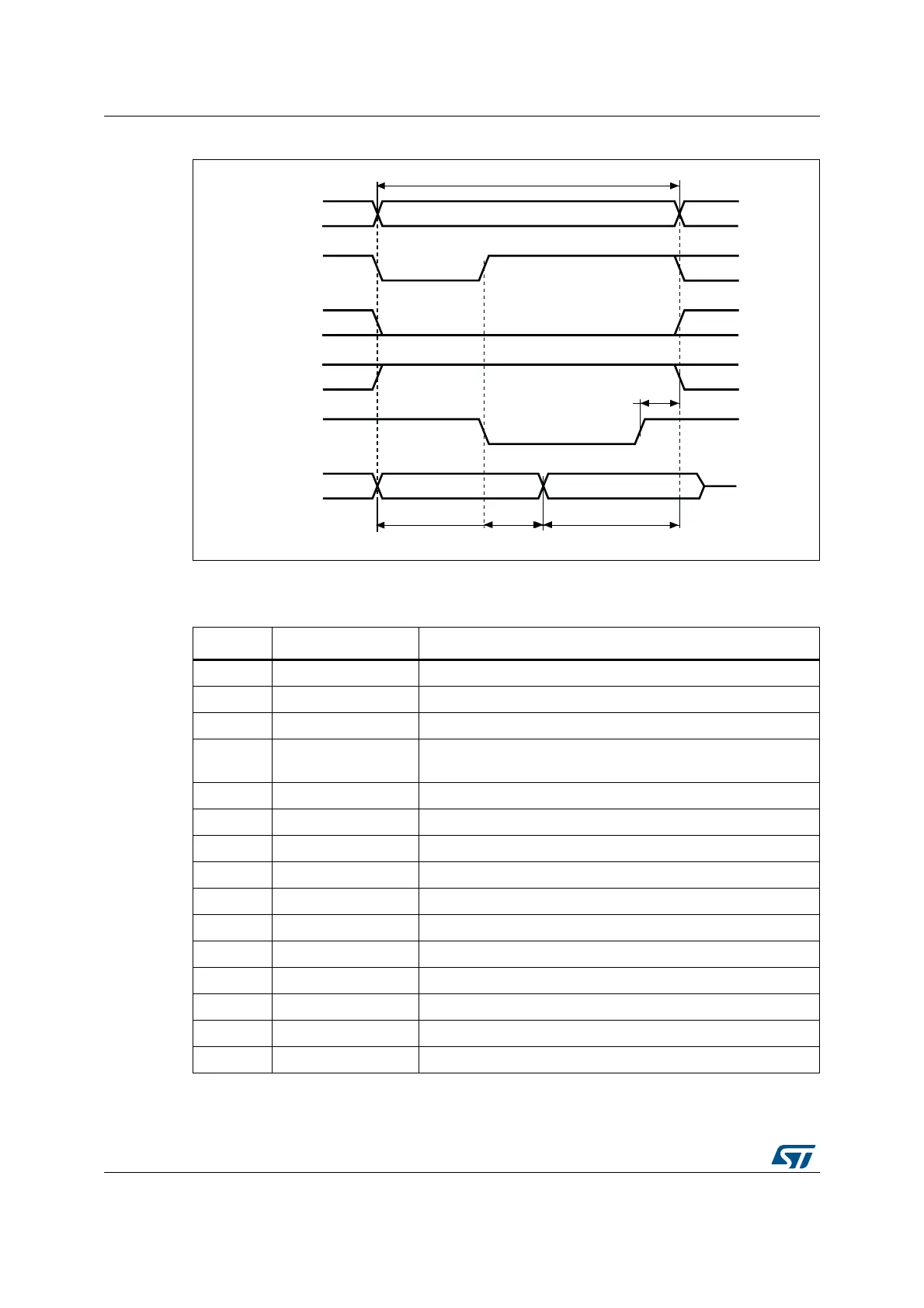

Figure 446. Multiplexed write accesses

The difference with mode D is the drive of the lower address byte(s) on the databus.

Table 235. FSMC_BCRx bit fields

Bit No. Bit name Value to set

31-21 Reserved 0x000

19 CBURSTRW 0x0 (no effect on asynchronous mode)

18:16 CPSIZE 0x0 (no effect on asynchronous mode)

15 ASYNCWAIT

Set to 1 if the memory supports this feature. Otherwise keep at

14 EXTMOD 0x0

13 WAITEN 0x0 (no effect on asynchronous mode)

12 WREN As needed

11 WAITCFG Don’t care

10 WRAPMOD 0x0

9 WAITPOL Meaningful only if bit 15 is 1

8 BURSTEN 0x0

7 Reserved 0x1

6 FACCEN 0x1

5-4 MWID As needed

3-2 MTYP[0:1] 0x2 (NOR Flash memory)

A[25:16]

NOE

ADDSET (DATAST + 1)

Memory transaction

NEx

AD[15:0]

HCLK cycles HCLK cycles

NWE

NADV

data driven by FSMC

ai15569

1HCLK

ADDHLD

HCLK cycles

Lower address
