DocID018909 Rev 11 1625/1731

RM0090 Flexible memory controller (FMC)

1669

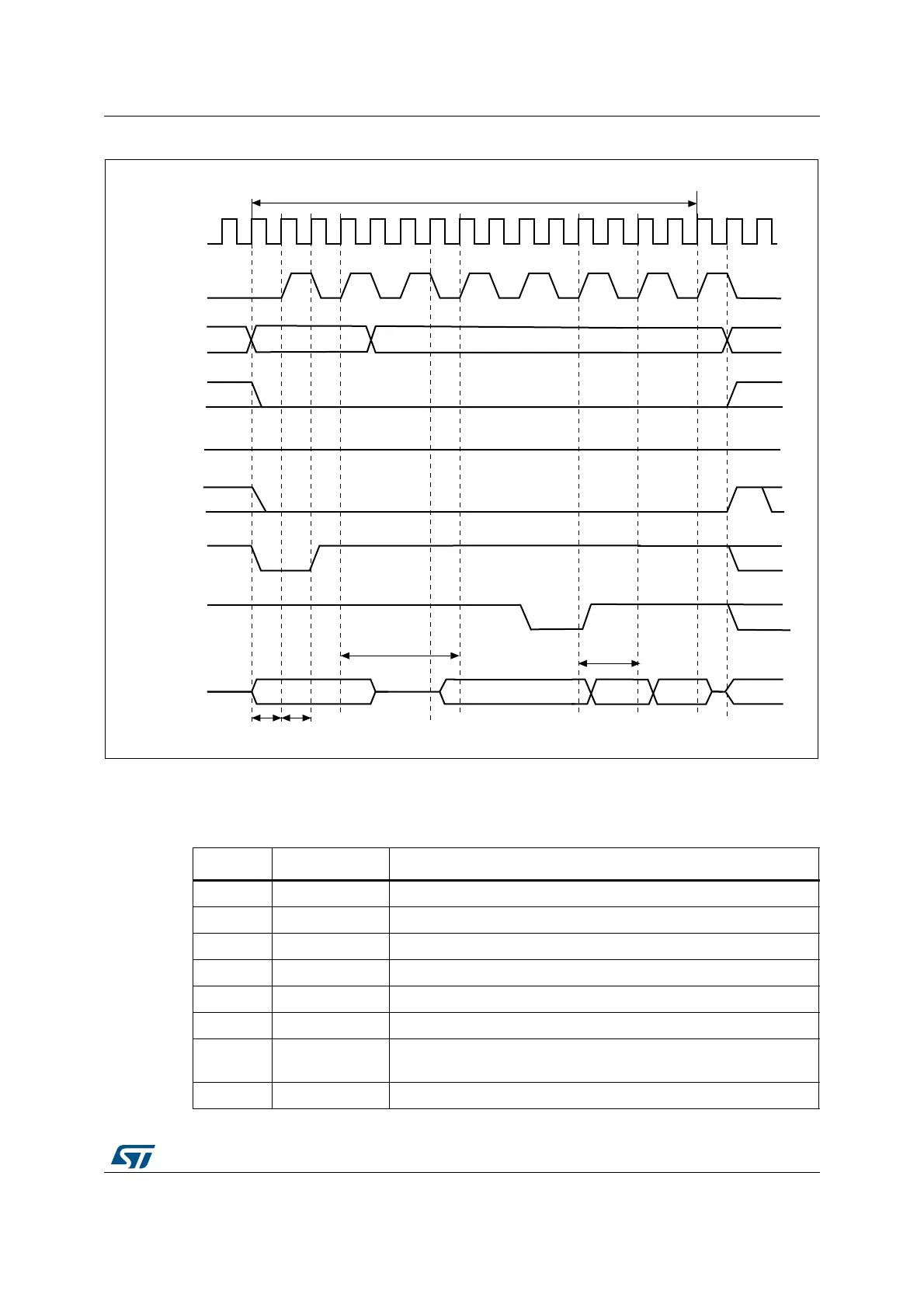

Figure 473. Synchronous multiplexed write mode waveforms - PSRAM (CRAM)

1. The memory must issue NWAIT signal one cycle in advance, accordingly WAITCFG must be programmed

to 0.

2. Byte Lane (NBL) outputs are not shown, they are held low while NEx is active.

!DDR;= DATA

ADDR;=

-EMORYTRANSACTIONBURSTOFHALFWORDS

(#,+

#,+

!;=

.%X

./%

.7%

(I:

.!$6

.7!)4

7!)4#&'

!$;=

CLOCK CLOCK

$!4,!4

INSERTEDWAITSTATE

AIF

#,+CYCLES

DATA

Table 282. FMC_BCRx bit fields

Bit No. Bit name Value to set

31-20 Reserved 0x000

20 CCLKEN As needed

19 CBURSTRW 0x1

18-16 CPSIZE As needed (0x1 for CRAM 1.5)

15 ASYNCWAIT 0x0

14 EXTMOD 0x0

13 WAITEN

to be set to 1 if the memory supports this feature, to be kept at 0

otherwise.

12 WREN 0x1
