STMicroelectronics STM32F407 - Figure 438. Mode2 and Mode B Read Accesses; Table 225. FsmcBwtrx Bit Fields

To Next Page

To Previous Page

DocID018909 Rev 11 1545/1731

RM0090 Flexible static memory controller (FSMC)

1588

Mode 2/B - NOR Flash

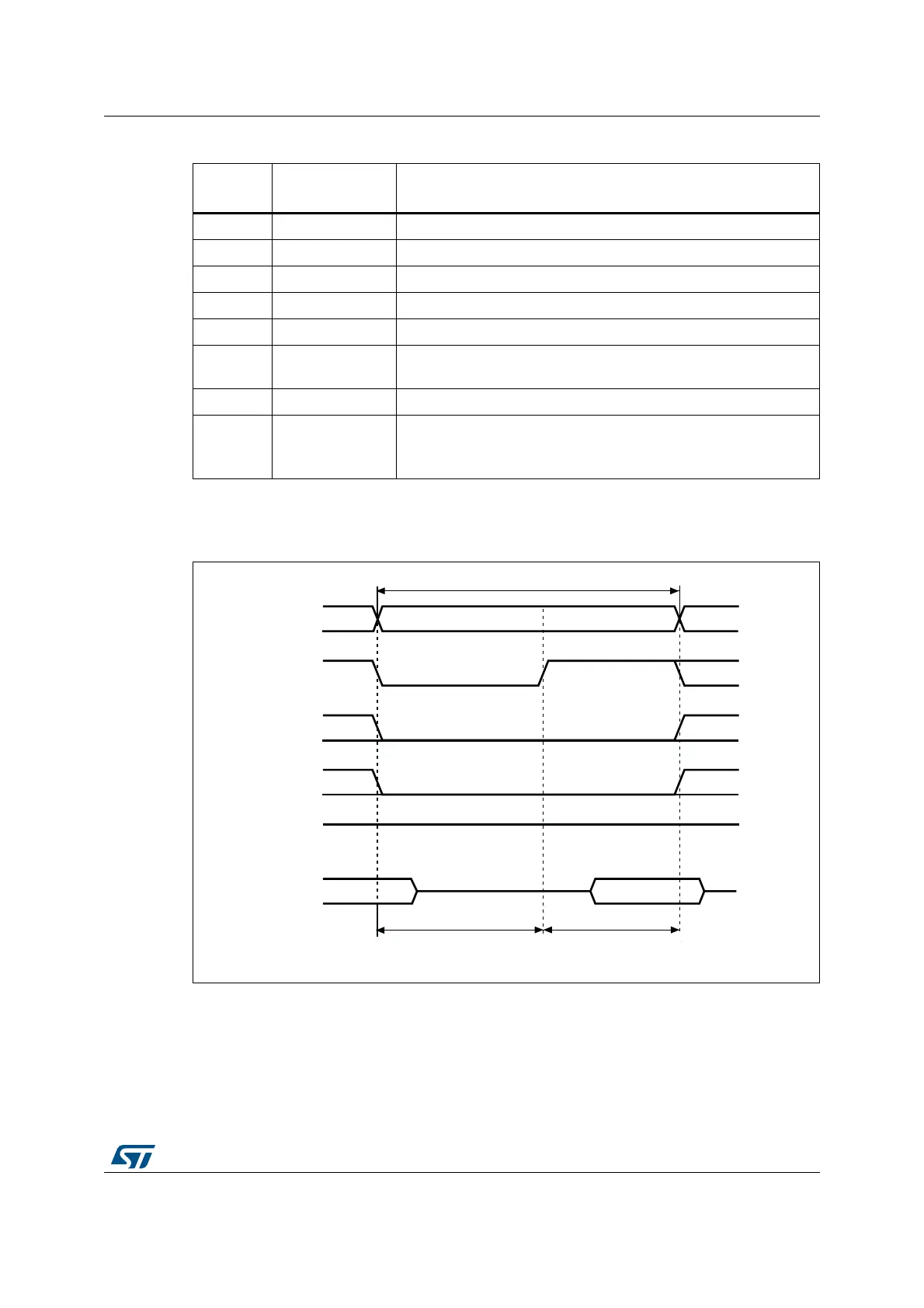

Figure 438. Mode2 and mode B read accesses

Table 225. FSMC_BWTRx bit fields

Bit

number

Bit name Value to set

31:30 Reserved 0x0

29-28 ACCMOD 0x0

27-24 DATLAT Don’t care

23-20 CLKDIV Don’t care

19-16 BUSTURN Time between NEx high to NEx low (BUSTURN HCLK)

15-8 DATAST

Duration of the second access phase (DATAST+1 HCLK cycles for

write accesses,

7-4 ADDHLD Don’t care

3-0 ADDSET[3:0]

Duration of the first access phase (ADDSET HCLK cycles) for write

accesses.

Minimum value for ADDSET is 0.

A[25:0]

NOE

ADDSET DATAST

Memory transaction

NEx

D[15:0]

HCLK cycles HCLK cycles

NWE

NADV

data driven

by memory

ai15561
