RM0090 Flexible memory controller (FMC)

1669

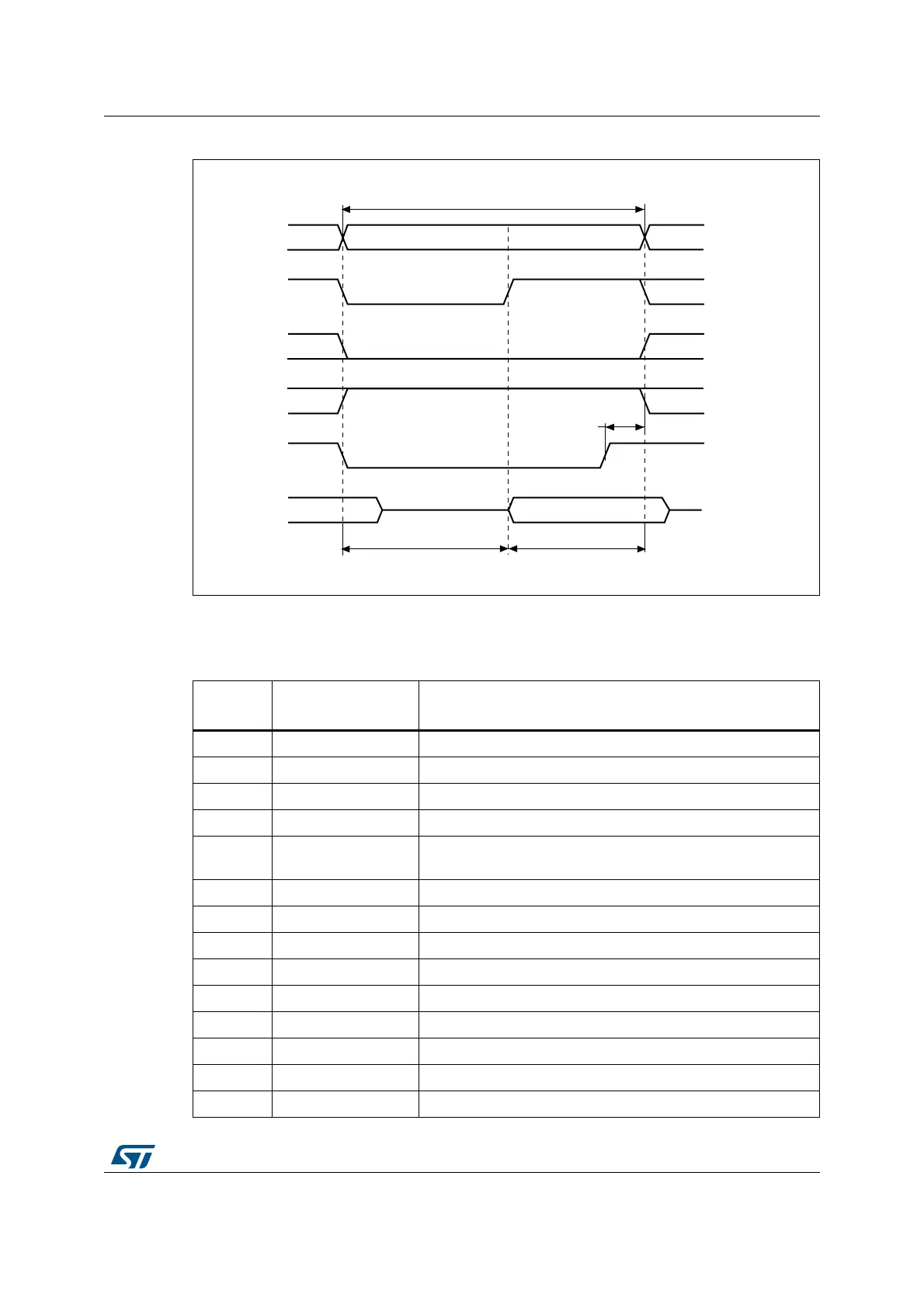

Figure 462. ModeB write access waveforms

The differences with mode1 are the toggling of NWE and the independent read and write

timings when extended mode is set (Mode B).

Table 269. FMC_BCRx bit fields

Bit

number

Bit name Value to set

31-21 Reserved 0x000

20 CCLKEN As needed

19 CBURSTRW 0x0 (no effect in asynchronous mode)

18:16 CPSIZE 0x0 (no effect in asynchronous mode)

15 ASYNCWAIT

Set to 1 if the memory supports this feature. Otherwise keep at

14 EXTMOD 0x1 for mode B, 0x0 for mode 2

13 WAITEN 0x0 (no effect in asynchronous mode)

12 WREN As needed

11 WAITCFG Don’t care

10 WRAPMOD 0x0

9 WAITPOL Meaningful only if bit 15 is 1

8 BURSTEN 0x0

7 Reserved 0x1

6 FACCEN 0x1

!;=

./%
