5.2.3 Dimensions
0 – 2
3
g
w d
h2
d
h2h1
h3
a
b
w
g
c
h1
h3
a
b

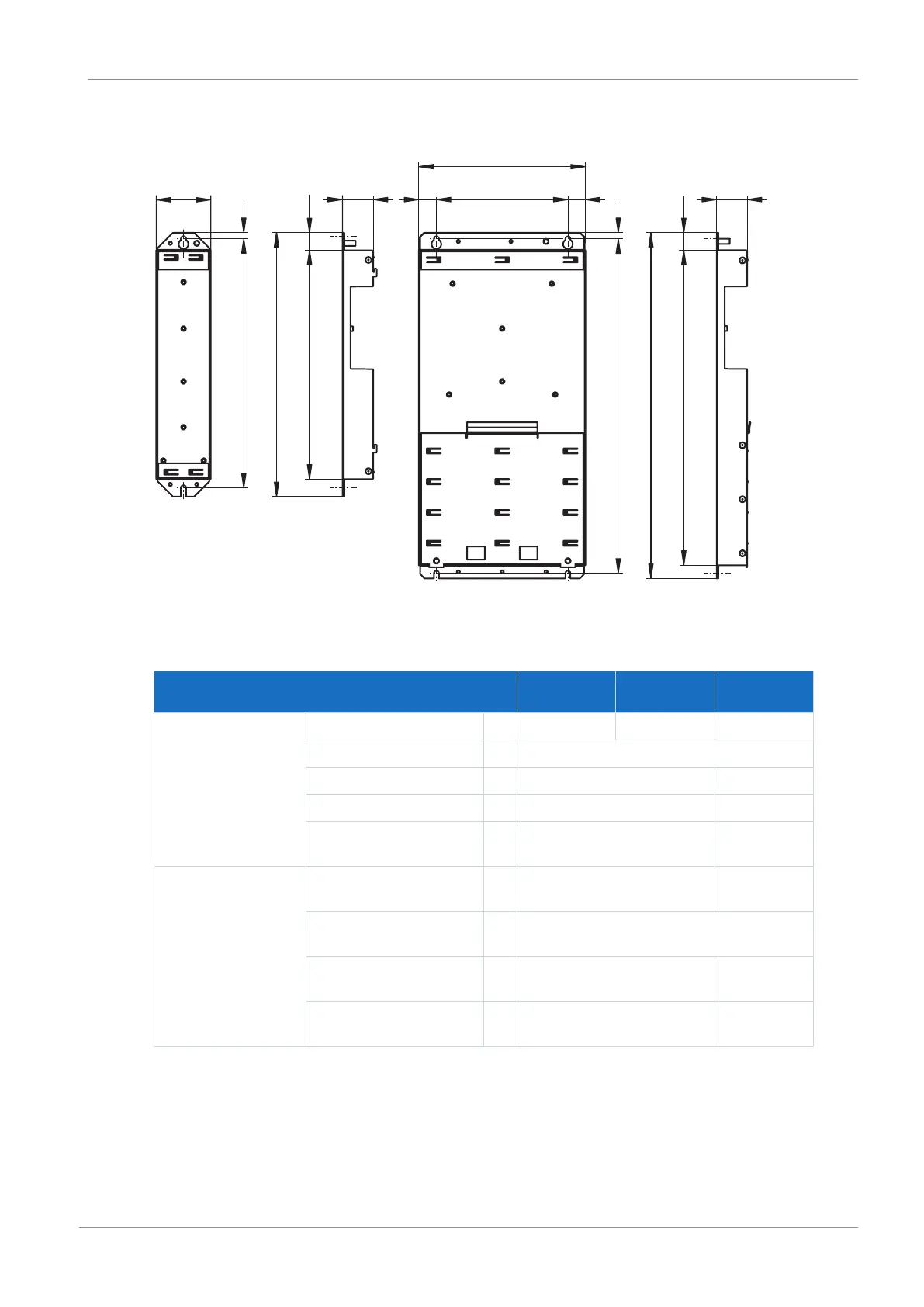

Fig.5: DL6A dimensional drawing
Dimension DL6A0
DL6A1
DL6A2 DL6A3
Quick DC-Link Width w 62 97 105
Depth d 35
Height h1 260 358
Fastening clip height h2 20 15
Height incl.
fastening clips
h3 300 393
Fastening holes Vertical distance
(wall mounting)
a 283+2 380+2
Vertical distance to the
upper edge
b 7
Horizontal spacing of the
fastening holes
c — 150
Horizontal distance to the
side edge
g — 20
Tab. 37: DL6A dimensions [mm]
