13.2.2 Stand-alone operation with indirect brake control
The following graphic shows a wiring example for the stand-alone operation of SD6 with indirect
brake control.
SD6
X10
GND
STO_a STO_b
GND
Vc
L1 L2
L3
PE
1 2
3
4
1 2
3
4
5
6 7 8
X11
+
-
1 2
F3
X1
1 2
3
4
1 2
A1
K1
M
24 V
DC
X6
FB GND
1
2
+
-
3
4
ENRLY GND
K2
T2
Y1
PowerBox
~ ~
-
+
N
L
F5
24 V
DC
M
T1
PEL1 L2
L3
F2
F1
F4
K2
X20
X4
X2
1TP1 1TP2
U
V W PE
7
8
1 2
3
4
n
X5
1BD1 1BD2
5
6
R1
X30
D- D+
1 2
R+ R-
1 2
3
4
M
M1
K2
1
1
3 4
X12 (ST6 option)
Indirect
brake
control
STO
status
Digital
input
Digital
output
D-sub
15p

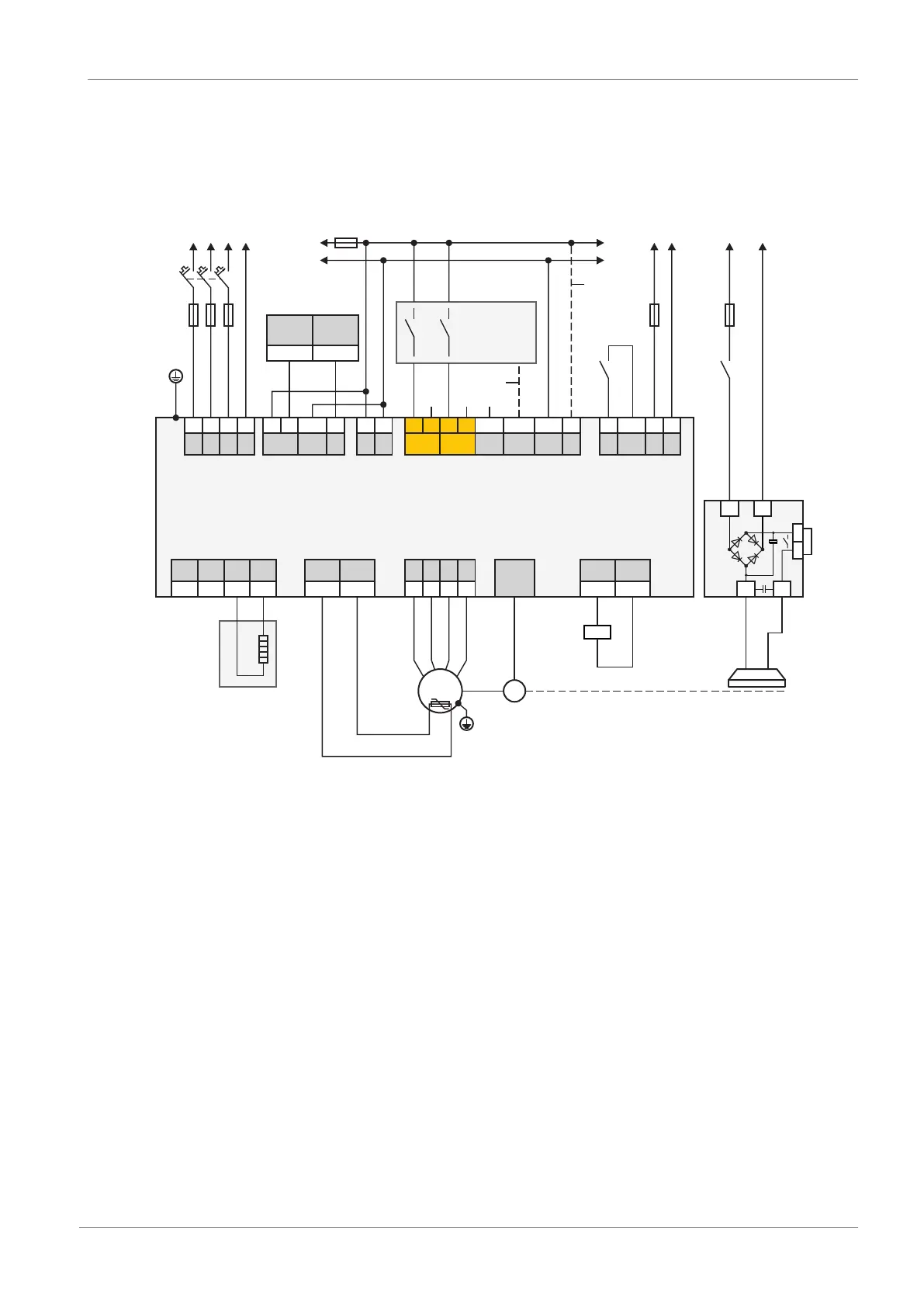

Fig.36: Wiring example of stand-alone operation with indirect brake control
A1 Controller
F1 – F5 Fuse
K1 Safety relay
K2 Coupling contactor
L 230V
AC
supply
L1 – L3 Three-phase power supply
M Reference ground
24V
DC
24V
DC
supply
M1 Motor
N Neutral conductor
R1 Braking resistor
T1 Drive controller
T2 Brake rectifier
Y1 Brake
1 Optional connection
