8 | Connection STOBER
78
12/2018 | ID 442537.05

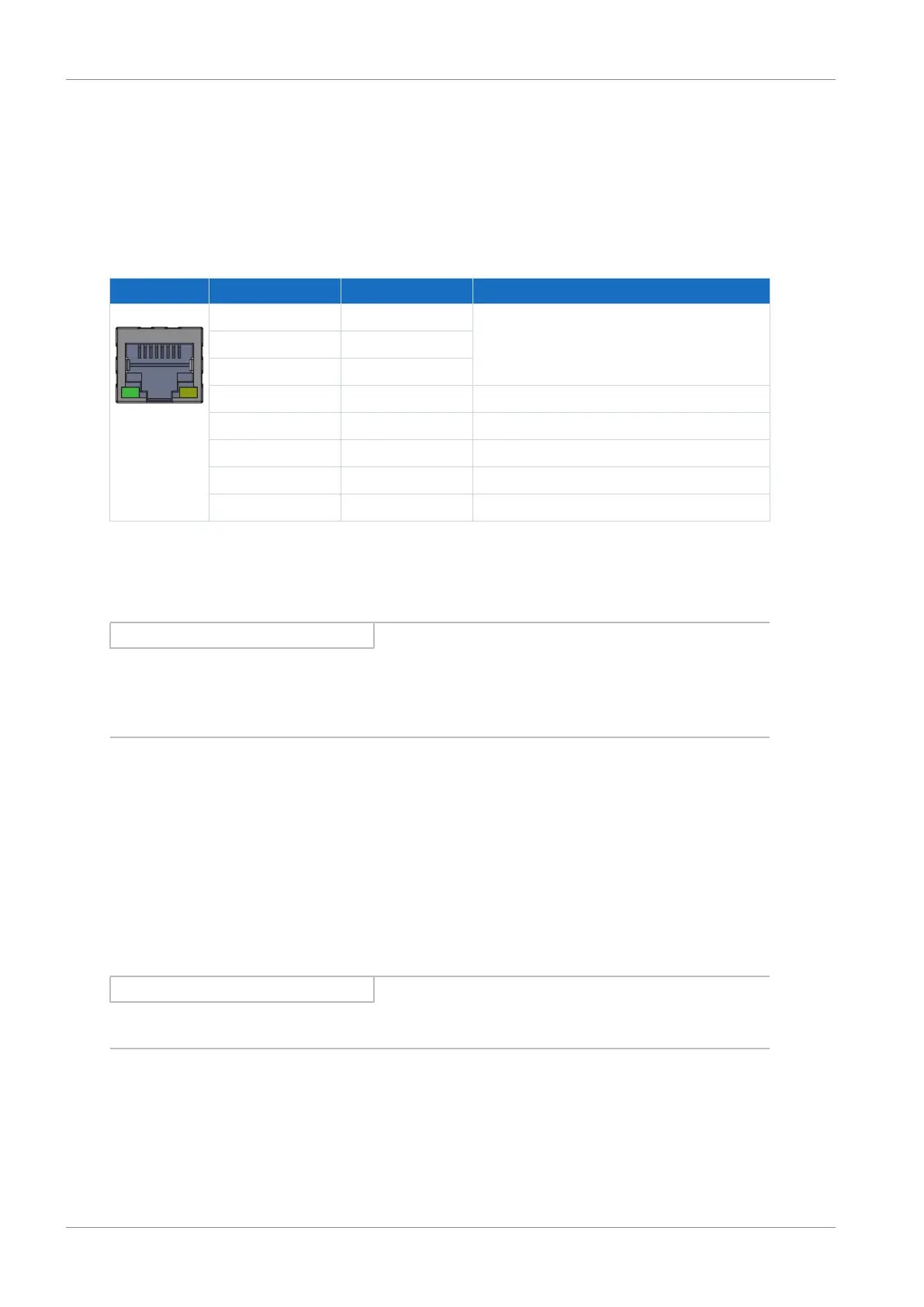

8.4.5 X3A, X3B: PC, IGB
You can implement the IGB function (Integrated Bus) using the X3A and X3B interfaces:
§ Direction connection to the PC
§ IGB motion bus
§ Remote maintenance
Socket Pin Designation Function
1|2| ... |7|8 1 Tx+ Ethernet communication
2 Tx−
3 Rx+
4 — —
5 — —
6 Rx− Ethernet communication
7 — —
8 — —
Tab. 56: X3A and X3B connection description
Cable requirements
Information
To ensure proper functionality, we recommend using cables from STOBER that are matched to
the complete system. In case of use of unsuitable connection cables, we reserve the right to
reject claims under the warranty.
STOBER offers ready-made cables for:
§ Direct connection of PC and drive controller
§ Setup of Integrated Bus
It is also possible to use cables with the following specification:
Ethernet patch cables or crossover cables meeting the CAT 5e quality level are the ideal
cables. The Fast Ethernet technology allows a maximum cable length of 100m between two
nodes.
Information
Ensure that you only use shielded cables with an SF/FTP, S/FTP or SF/UTP design.
