STOBER 5 | Technical data
12/2018 | ID 442537.05
23

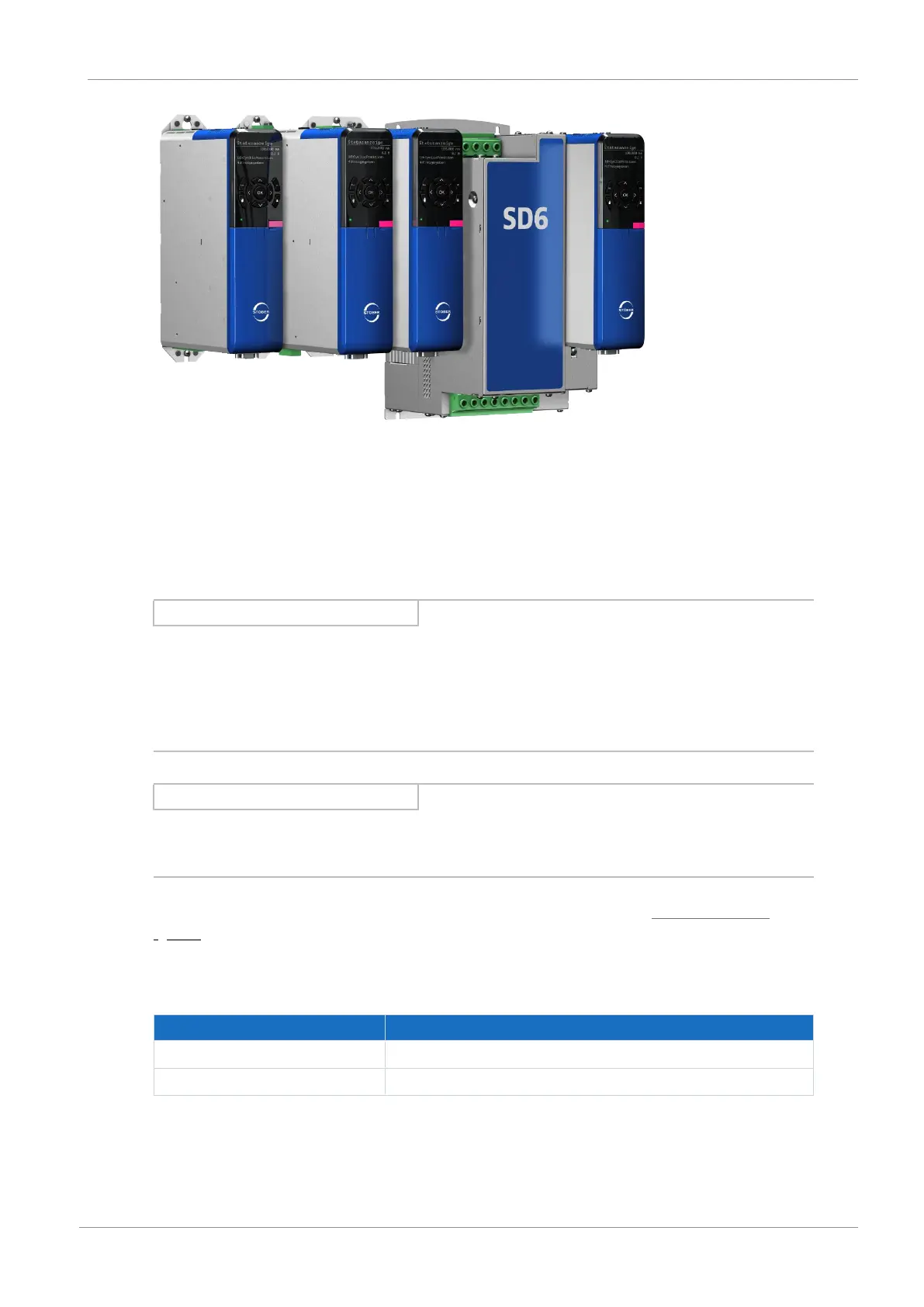

SD6 in sizes 0, 1, 2 and 3
5.1.6 Electrical data
The electrical data of the available SD6 sizes as well as the properties of the brake chopper can
be found in the following sections.
Information
For the time span between two energizing processes, note that:
a) Direct, repeat activation of the supply voltage is possible for power-on/power-off operation.
b) A time span of > 15 must be observed between two energizing processes during
continuous, cyclical power-on/power-off operation with increased charging capacity.
Information
The STO safety function is available for safe shutdown as an alternative to continuous, cyclical
power-on/power-off operation.
An explanation of the formula symbols used can be found in the chapter Formula symbols
[}162].
5.1.6.1 Control unit
Electrical data All types
U
1CU
24V
DC
, +20%/−15%
I
1maxCU
1.5 A
Tab. 11: Control unit electrical data
