STOBER 5 | Technical data
12/2018 | ID 442537.05
29
5.1.7 Dimensions
The dimensions of the available SD6 sizes can be found in the following sections.
5.1.7.1 Dimensions: sizes 0 to 2

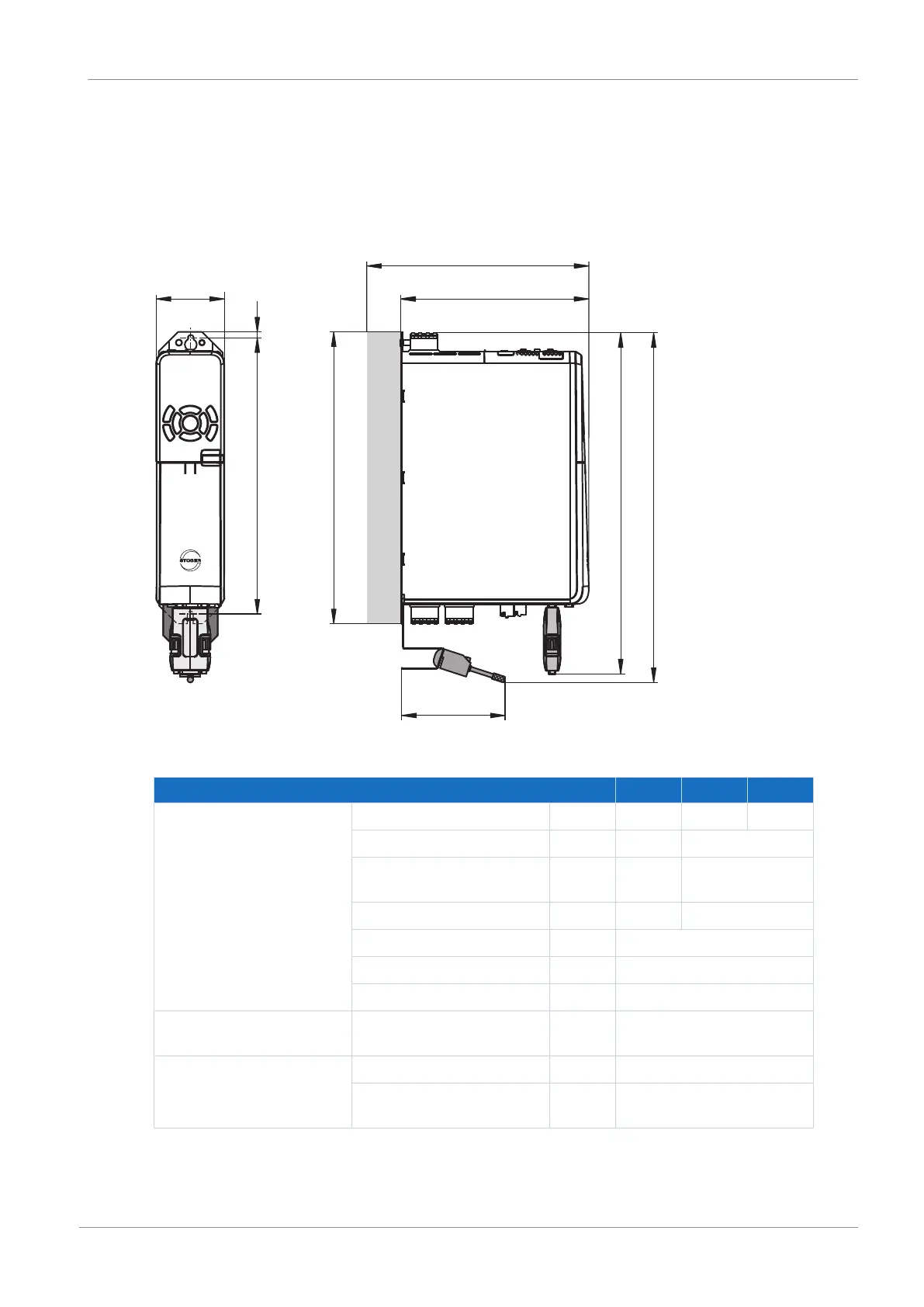

Fig.3: SD6 dimensional drawing, sizes 0 to 2
Dimension Size 0 Size 1 Size 2
Drive controller Width w 70 70 105
Depth d1 194 284
Depth incl. RB 5000 braking
resistor
d2 212 302
Depth incl. Quick DC-Link d2 229 319
Height incl. fastening clips h1 300
Height incl. AES h2 367
Height incl. EMC shroud h3 approx. 376
EMC shroud incl. shield
connection terminal
Depth d3 approx. 111
Fastening holes Vertical distance a 283+2
Vertical distance to the upper
edge
b 6
Tab. 29: SD6 dimensions, sizes 0 to 2 [mm]
