5 | Technical data STOBER
30
12/2018 | ID 442537.05
5.1.7.2 Dimensions: size 3

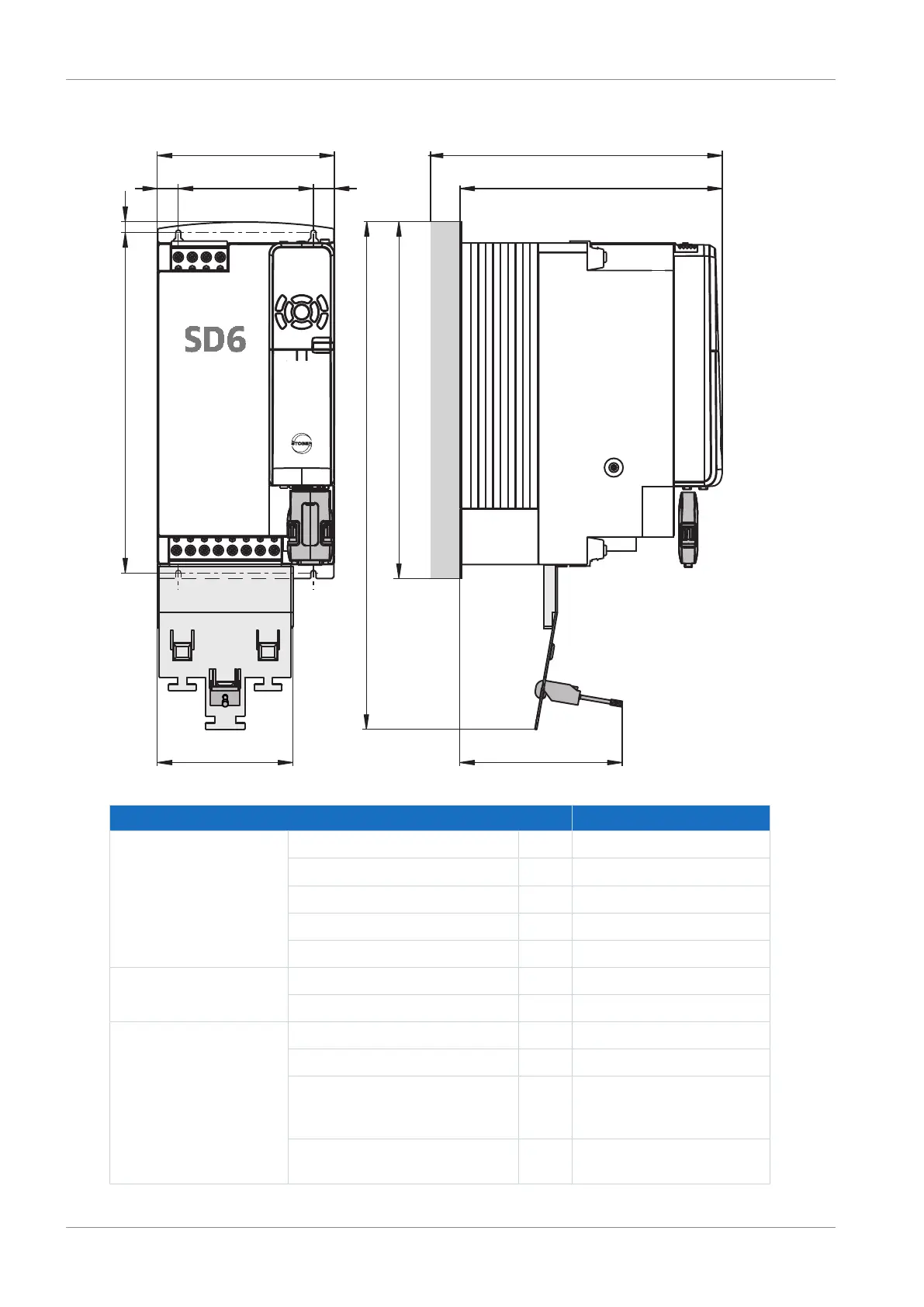

Fig.4: SD6 dimensional drawing, size 3
Dimension Size 3
Drive controller Width w1 194
Depth d1 305
Depth incl. Quick DC-Link d2 340
Height incl. fastening clips h1 382.5
Height incl. EMC shroud h2 540
EMC shroud incl. shield
connection terminal
Width w2 147
Depth d3 approx. 174
Fastening holes Vertical distance a 365+2
Vertical distance to the upper edge b 11.5
Horizontal distance between the
fastening holes of the drive
controller
c 150+0.2/−0.2
Horizontal distance to the side
edge of the drive controller
e 20
Tab. 30: SD6 dimensions, size 3 [mm]
