13.2 Wiring examples
The following chapters show the basic connection using examples.
13.2.1 Stand-alone operation with direct brake control
The following graphic shows a wiring example for the stand-alone operation of SD6 with direct
brake control.
SD6
X10
X20
X4
X2
GND
STO_a STO_b
GND
Vc
L1 L2
L3
PE
1 2
3
4
1 2
3
4
5
6 7 8
1TP1 1TP2
U
V W PE
7
8
1 2
3
4
n
X11
+
-
1 2
F3
X1
1 2
3
4
1 2
A1
K1
M
24 V
DC
X5
1BD1 1BD2
5
6
X6
FB GND
1
2
+
-
3
4
ENRLY GND
R1
X30
D- D+
1 2 3 4
R+ R-
DL6A
D-
D+
1 2
3
4
M
M1
T1
PEL1 L2
L3
F2
F1
24 V
DC
M
F4
11
Digital
output
Digital
input
X12 (ST6 option)
STO
status
Direct
brake
control
D-sub
15p

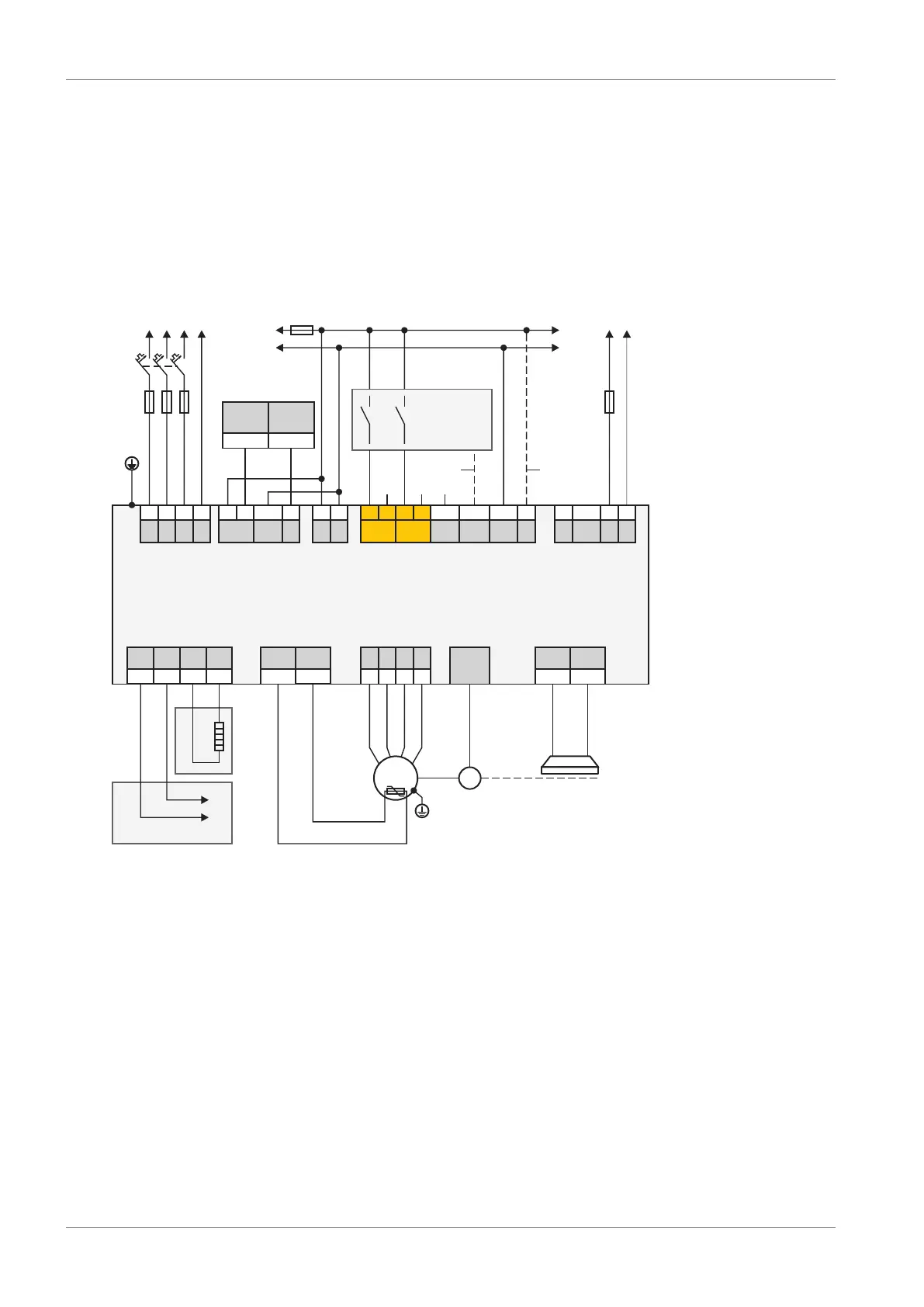

Fig.35: Wiring example of stand-alone operation with direct brake control
A1 Controller
F1 – F4 Fuse
K1 Safety relay
L1 – L3 Three-phase power supply
M Reference ground
M1 Motor
R1 Braking resistor
T1 Drive controller
1 Optional connection
