7.5 Length of copper rails
If you would like to connect SD6 drive controllers in the DC link group using DL6A Quick DC-
Link, you need two copper rails with a cross-section of 5 × 12mm in the correct length.
2
3
0 – 1 0 – 1
2
3
MA M M AM

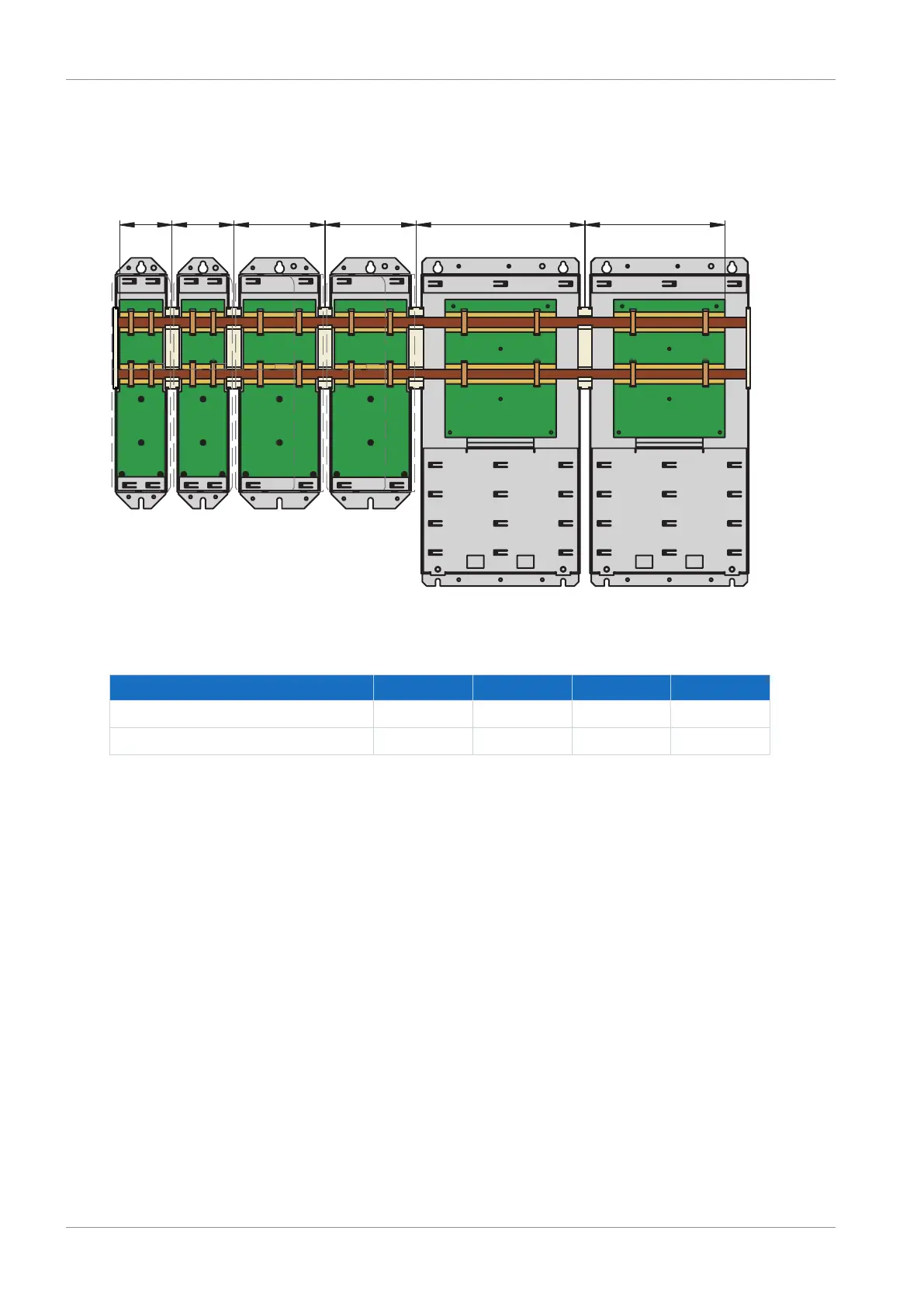

Note the following specifications for determining the length:
Drive controller position Dimension Size0, size1 Size2 Size3
Beginning or end of the group A 62 97 167
Within the group M 74 109 202
Tab. 47: Determination of the correct length of the copper rails [mm]
