7 | Installation
STOBER
56
12/2018 | ID 442537.05

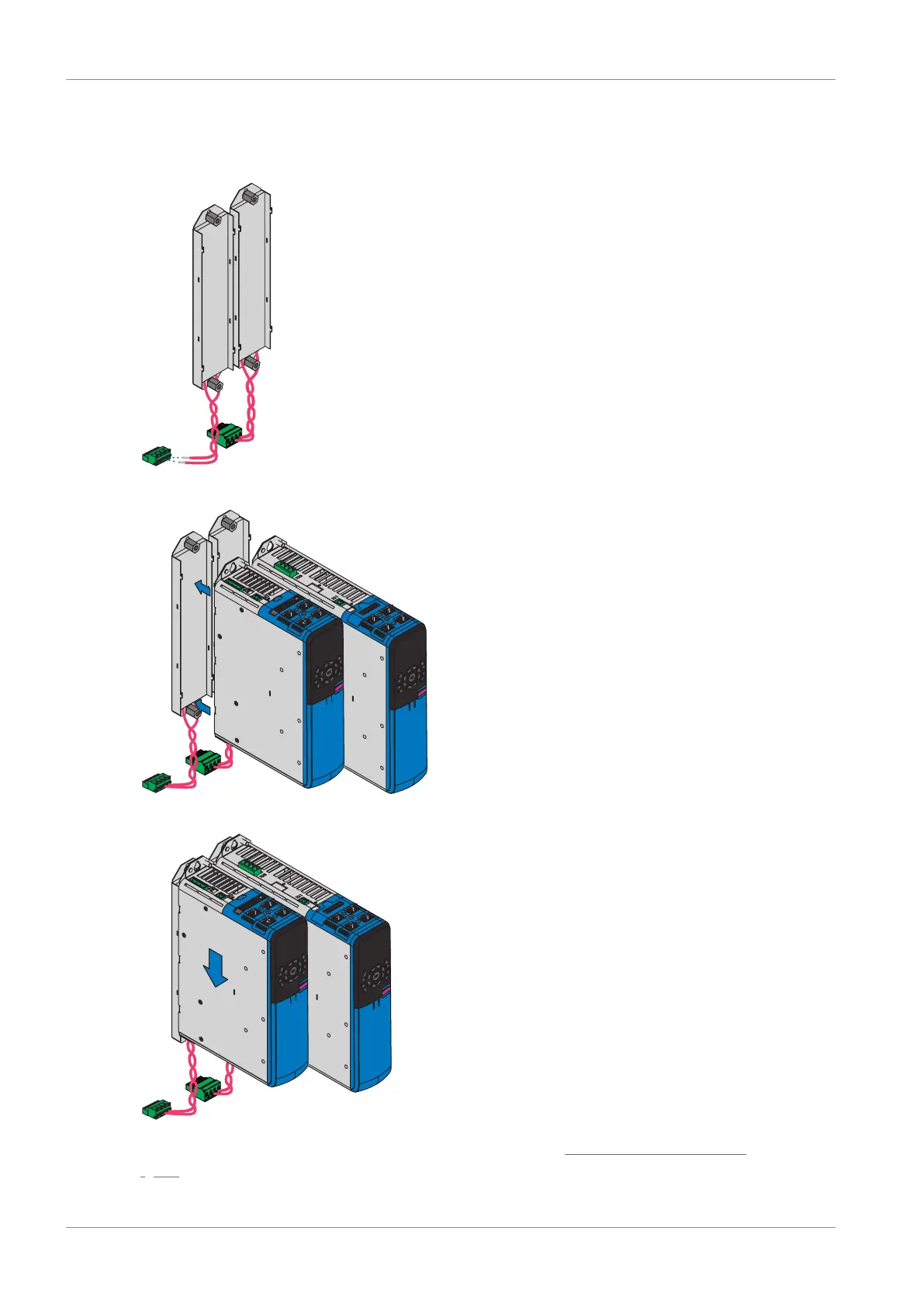

Mounting on a rear section braking resistor
1.
Sizes 0 to 2: Connect the two cables to R+ and R− of terminal X30. Ensure that the
connection lines of the braking resistor are twisted pairs.
R-
R+
2.
Position the drive controller on the guides of the rear section module.
3.
Press the drive controller downward onto the guides.
4.
Sizes 0 to 2: Mount the EM6A0 EMC shroud; see the chapter
Attaching the EMC shroud
[
}
58]
.
55
57
