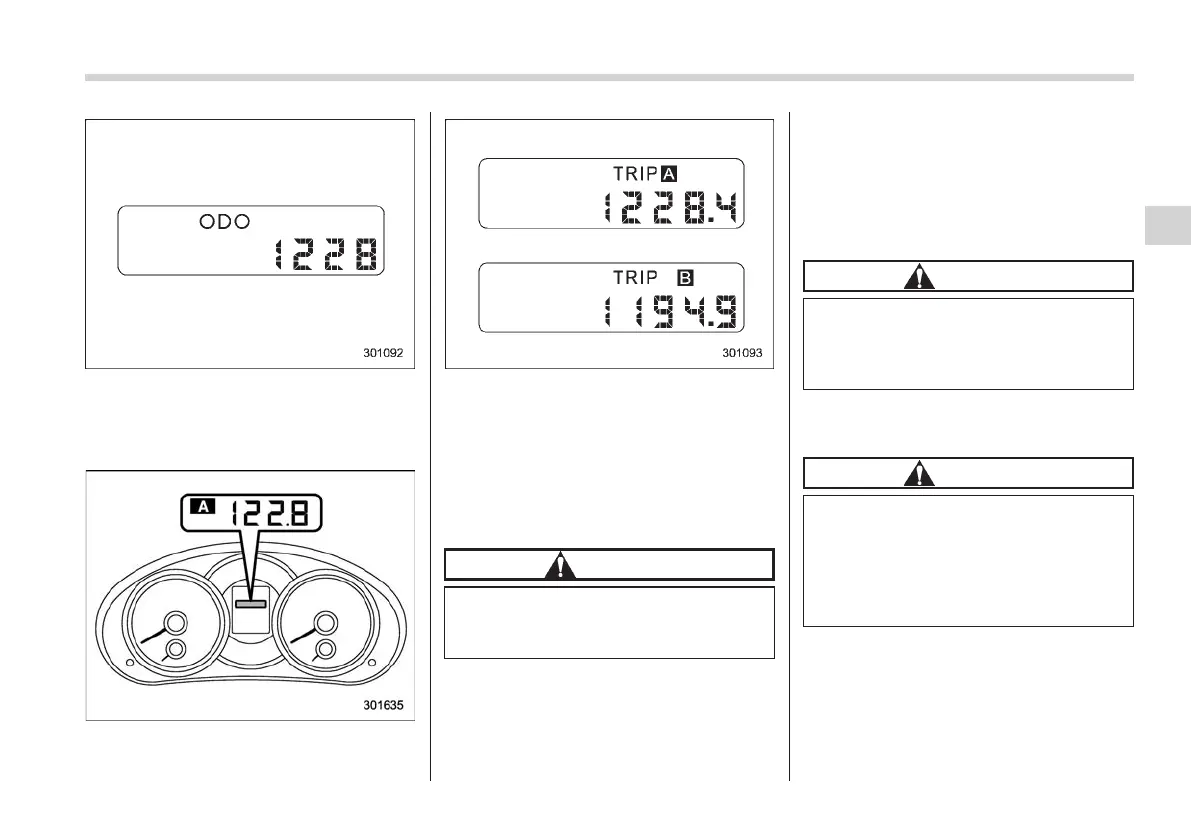

Type D and E combination meter
The odometer shows the total distance
that the vehicle has been driven.
! Double trip meter
S03AD0902
Type A, B and C combination meter
Type D and E combination meter
The trip meter shows the distance that the
vehicle has been driven since you last set
it to zero.
To set the trip meter to zero, select the A
trip or B trip meter by pushing the knob
and keep the knob pushed for more than 2
seconds.
CAUTION
Do not attempt to change the func-
tion of the indicator during driving.
Doing so could result in an accident.
NOTE
If the connection between the combina-
tion meter and battery is broken for any
reason such as vehicle maintenance or
fuse replacement, the data recorded on
the trip meter will be lost.
& Tachometer
S03AD06
The tachometer shows the engine speed
in thousands of revolutions per minute.
CAUTION
Do not operate the engine with the
pointer of the tachometer in the red
zone. This may cause severe da-
mage to the engine.
& Fuel gauge
S03AD07
CAUTION
The combination meter of the diesel
engine models has the word “DIE-
SEL” printed on the fuel gauge. For
details about diesel fuel, refer to
“
s07aa03Fuel requirements for diesel
engine” F7-2.
Instruments and controls 3-11
– CONTINUED –
