11-28 Maintenance and service
. Crank pulley
Check the deflection of the front
side belt and if there is any loosen-
ess, cracks, wear or unusual noise
on the front side belt, we recom-
mend that you contact your
SUBARU dealer.
Continuing to use the vehicle with
the belt outside of the specification
may cause the engine to malfunc-
tion and the above components to
malfunction.
To check the deflection of the front side
belt, place a straightedge (ruler) across
two adjacent pulleys (alternator pulley and
crank pulley) and apply a force of 98 N (10
kgf, 22 lbf) midway between the pulleys by
using a spring scale. The belt deflection
should be the amount specified. If the front
side belt is loose, cracked or worn, we
recommend that you contact your
SUBARU dealer.
mm (in)
Deflection
New belt Used belt
A
7.0 – 9.0
(0.28 – 0.35)
9.0 – 11.0
(0.35 – 0.43)
The rear side belt is a stretch-type belt,
therefore the deflection does not need to
be checked. If there are cracks or wear
confirmed on the belts and a squeaking
sound is heard from them, we recommend
that you contact your SUBARU dealer.
& Non-turbo petrol engine
models and diesel engine
models
S11AI15
It is unnecessary to check the deflection of
the drive belt periodically because your
engine is equipped with an automatic belt
tension adjuster. However, replacement of
the belt should be done according to the
maintenance schedule. Refer to “
s11aaMain-
tenance schedule” F11-3.Werecom-
mend that you consult your SUBA RU
dealer for replacement.
If the drive belt is loose, cracked or worn,
we recommend that you contact your
SUBARU dealer.
Manual transmission oil
S11AJ
NOTE
It is unnecessary to check the 6-speed
manual transmission oil level. How-
ever, if necessary, we recommend that
you consult your SUBARU dealer for
inspection.

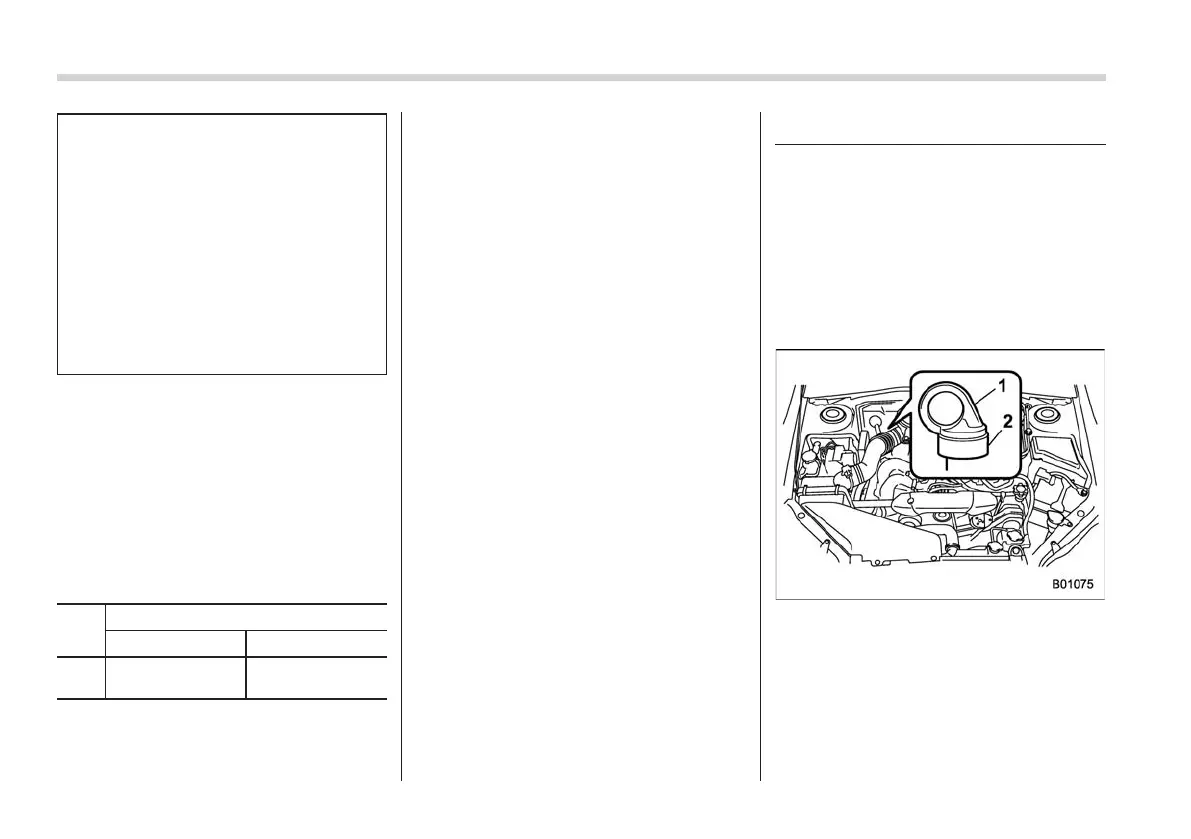

& Checking the oil level
S11AJ01
5-speed transmission (non-turbo models)
1) Yellow handle
2) Green collar
