一般Model "A8170GE-A" EDITED: 2011/ 7/ 3
& Type C
S04AC13

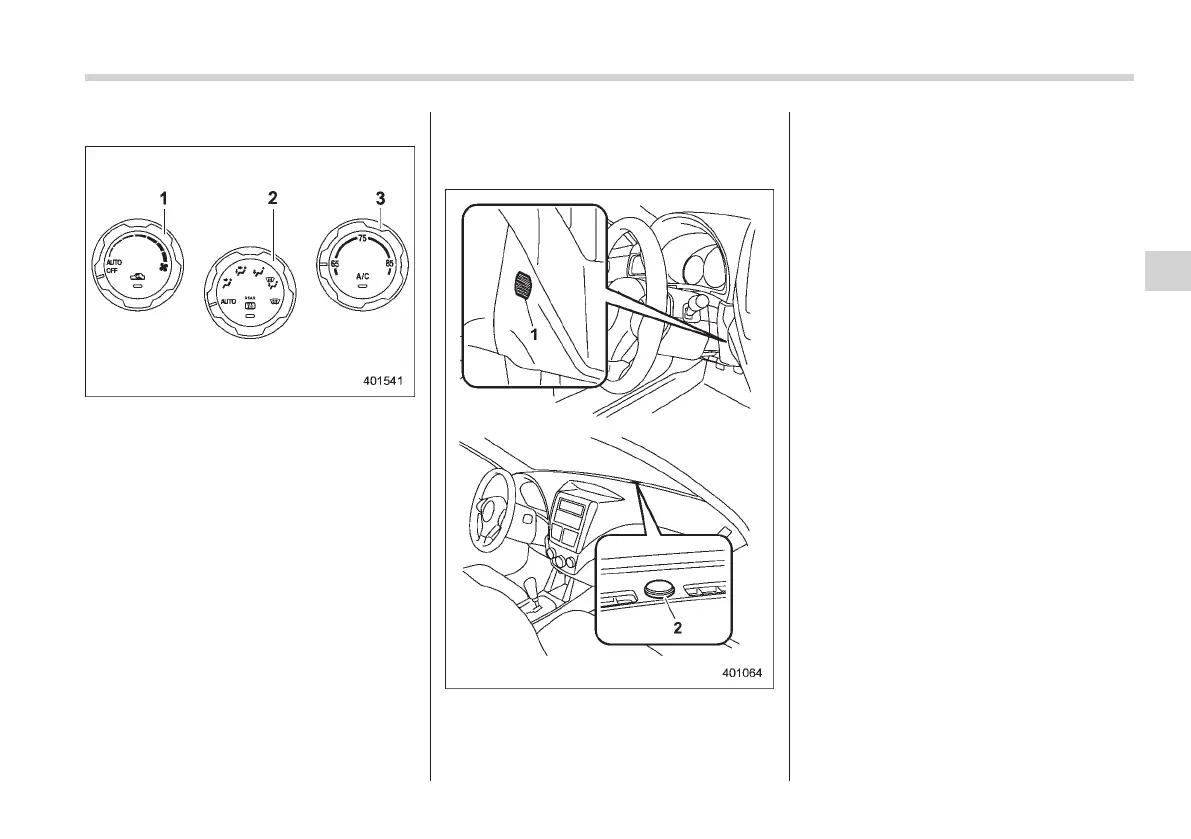

1) Fan speed control dial
2) Airflow control dial
3) Temperature control dial
1. Turn the airflow control dial and fan
speed control dial to “AUTO” position.
2. Set the preferred temperature using
the temperature control dial.
NOTE
Each function can be individually set to
AUTO mode indepen dently of the
others. Any function set to AUTO mode
is controlled automatically. Any func-
tion not set to AUTO mode can be
manually adjusted as desired.
3. To turn off the climate control system,
turn the fan speed control dial to the “OFF”
position.
& Temperature sensors
S04AC02
1) Interior air temperature sensor
2) Solar sensor
The automatic climate control system
employs several sensors. These sensors
are delicate. If they are not treated
properly and become damaged, the sys-
tem may not be able to control the interior
temperature correctly. To avoid damaging
the sensors, observe the following pre-
cautions.
– Do not subject the sensors to impact.
– Keep water away from the sensors.
– Do not cover the sensors.
The sensors are located as follows.
– Solar sensor: beside the windshield
defroster grille.
– Interior air temperature sensor: next to
the steering column.
– Outside temperature sensor: behind
the front grille.
Climate control 4-7
